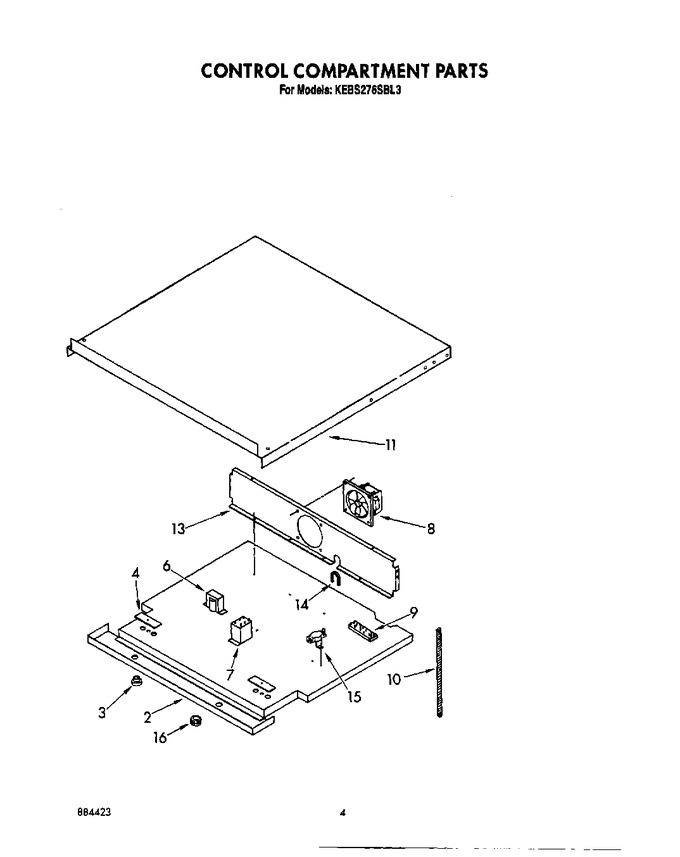

04 - Control Compartment


05 - Latch


06 - Cabinet


07 - Liner


08 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	4173054		Sandwich Panel		Appelez-nous	-
2	4159465		Screw (16)		Appelez-nous	-
3	4173043		Bushing		Appelez-nous	-
4	4159465		Screw, (2)		Appelez-nous	-
4	4168257		Hole Cover (2)		Appelez-nous	-
6	4166561		Transformer, Meat Probe		Appelez-nous	-
6	4159465		Screw (4)		Appelez-nous	-
7	4163731		Relay, Meat Probe		Appelez-nous	-
8	4173004		Blower		Appelez-nous	-
9	4168735		Terminal Block, Power Supply		Appelez-nous	-
10	4167614		Conduit, 1/2`` X 56``		Appelez-nous	-
11	4173290		Cabinet Top, Front		Appelez-nous	-
11	4159465		Screw (8)		Appelez-nous	-
13	4159461		Screw		Appelez-nous	-
13	4173166		Panel, Blower Mounting		Appelez-nous	-
14	4173165		Flexible Bushing		Appelez-nous	-
15	4159465		Screw, (2)		Appelez-nous	-
15	4173008		Fan Switch, Auxillary		Appelez-nous	-
16	4173043		Bushing		Appelez-nous	-
