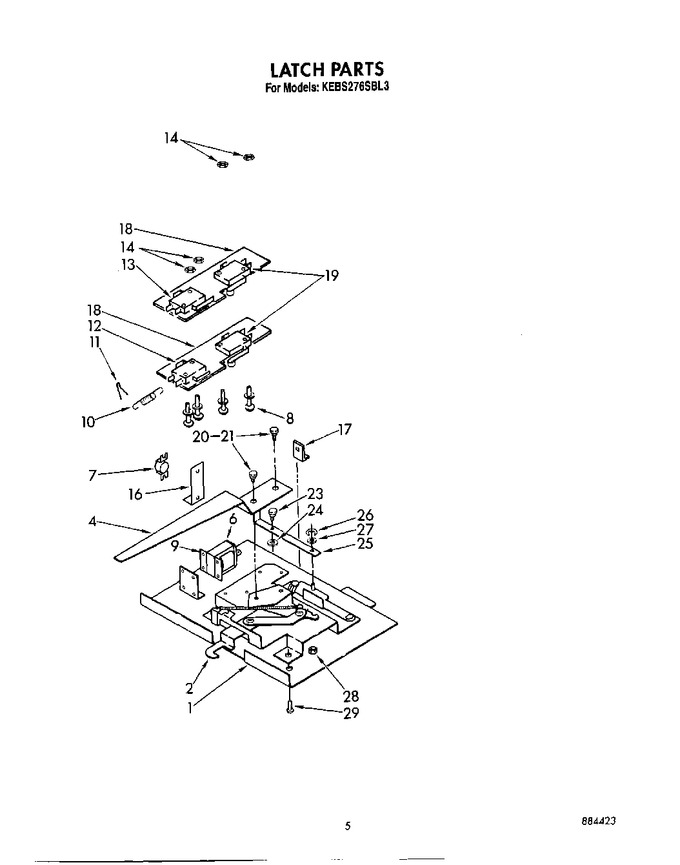

05 - Latch


06 - Cabinet


07 - Liner


08 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4178063		Latch Mounting Plate		Appelez-nous	-
2	4159186		Screw (4)		Appelez-nous	-
2	4168538		Mechanism, Latch		Appelez-nous	-
4	3177965		Latch Lever (upper Oven)		Appelez-nous	-
4	3177966		Latch Lever (lower Oven)		Appelez-nous	-
6	4159470		Screw (2)		Appelez-nous	-
6	4173081		Solenoid		Appelez-nous	-
7	4159445		Thermal Switch (screw (2))		Appelez-nous	-
7	4173007		Thermal Switch (lower)		Appelez-nous	-
7	3179691		Thermal Switch (upper)		Appelez-nous	-
8	4173053		Machine Screw, 4-40 X 1 1/4		Appelez-nous	-
9	4168292		Plate, Solenoid		Appelez-nous	-
10	4168560		Solenoid Spring		Appelez-nous	-
11	4159129		Cotter Pin		Appelez-nous	-
12	4168514		Latch Switch With Roller		Appelez-nous	-
13	4173053		Screw (2)		Appelez-nous	-
13	4164366		Latch Switch, Normally Open		Appelez-nous	-
14	4159117		Locknut		Appelez-nous	-
16	4173170		Bracket, Switch		Appelez-nous	-
16	4159445		Screw, (2)		Appelez-nous	-
17	4173168		Bracket, Harness		Appelez-nous	-
18	4168522		Insulator		Appelez-nous	-
19	4173053		Screw (2)		Appelez-nous	-
19	4168517		Latch Switch (2)		Appelez-nous	-
20	4168578		Shoulder Screw, Latch Lever (2) (single Oven Or Upper Oven)		Appelez-nous	-
21	4168579		Shoulder Screw, Latch Lever (2) (lower Oven)		Appelez-nous	-
23	4168554		Shoulder Screw, Actuator Arm		Appelez-nous	-
24	4168553		Spacer, Actuator Arm		Appelez-nous	-
25	4168058		Actuator Arm		Appelez-nous	-
26	4159160		Retaining Ring		Appelez-nous	-
27	4159603		Washer, Flat		Appelez-nous	-
28	4159109		Nut, 10-24 Hex Kep (3)		Appelez-nous	-
29	3178616		Harness, Wiring Latch (lower)		Appelez-nous	-
29	4159287		Screw, 10-24 X 3/8 (3)		Appelez-nous	-
