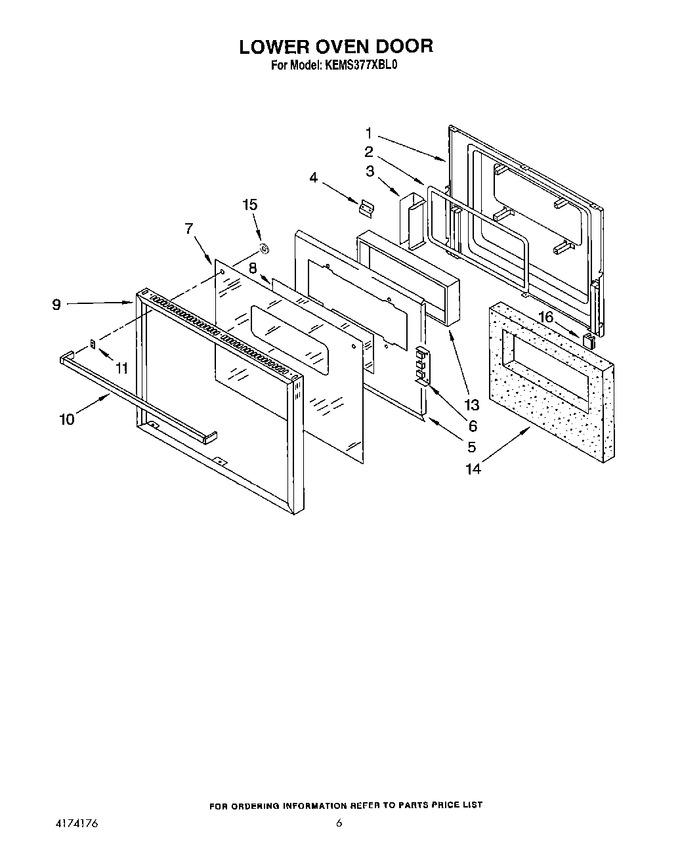

05 - Lower Oven Door


06 - Internal Convection Oven


07 - Magnetron And Air Flow


08 - Stirrer Drive, Optional


09 - Microwave Compartment


10 - Microwave Control Panel


11 - Microwave Door And Latch


12 - Compoment Shelf And Latch


13 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3177599		Liner, Door		Appelez-nous	-
1	3178001		Screw (2)		Appelez-nous	-
2	3178584		Gasket, Window		Appelez-nous	-
3	3179693		Spacer, Window		Appelez-nous	-
4	3177831		Latch, Strike		Appelez-nous	-
4	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
5	WP90767		Screw (4)   (Replaces: 300890)			Immediately	$ 7.43
5	3177718		Insulation, Retainer		Appelez-nous	-
6	4163855		Bracket (2), Glass Mounting		Appelez-nous	-
6	WP90767		Screw (4)   (Replaces: 300890)			Immediately	$ 7.43
7	3181550		Glass, Door (white)		Appelez-nous	-
7	3181548		Glass, Door (black)		Appelez-nous	-
8	4164243		Glass, Reflective		Appelez-nous	-
9	3179507		Clip (2) Glass (sides)		Appelez-nous	-
9	3179506		Clip (2) Glass (top & Bottom)		Appelez-nous	-
9	3181402		Frame, Door		Appelez-nous	-
10	3178646		Handle, Door (black)		Appelez-nous	-
10	3178648		Handle, Door (white)		Appelez-nous	-
11	3181637		Spacer, Handle (screw (2))		Appelez-nous	-
11	3178741		Spacer, Handle (white)		Appelez-nous	-
11	3178740		Spacer, Handle (black)		Appelez-nous	-
13	4164235		Window Package		Appelez-nous	-
14	3180094		Insulation, Door		Appelez-nous	-
15	3181651		Bushing, Handle		Appelez-nous	-
16	3181701		Bumper, Door Glass		Appelez-nous	-
