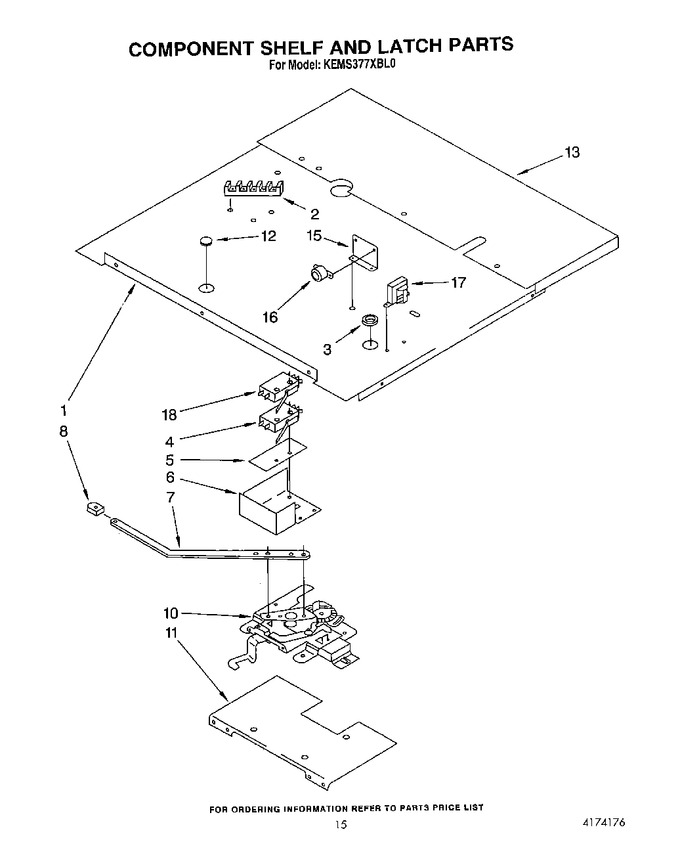

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3178091		Shelf, Component		Appelez-nous	-
1	WP90767		Screw (7)   (Replaces: 300890)			Immediately	$ 7.43
2	W10841059		Screw (2)   (Replaces: 98445)		Appelez-nous	-
2	WP8203546		Block, Terminal   (Replaces: 258076)			Immediately	$ 27.12
3	3181919		Bushing		Appelez-nous	-
4	3178668		Switch, Latch		Appelez-nous	-
5	3178185		Insulator, Switch		Appelez-nous	-
6	254225		Screw (2)		Appelez-nous	-
6	3177662		Guard, Latch		Appelez-nous	-
7	3177970		Handle, Latch		Appelez-nous	-
7	4159187		Screw (2)		Appelez-nous	-
8	311253		Knob, Latch Handle		Appelez-nous	-
8	WP488234		Screw   (Replaces: 4159334)				$ 6.37
10	WP3177991		Screw (3)   (Replaces: 3177991)			Immediately	$ 6.80
10	3178410		Latch, Mechanism		Appelez-nous	-
11	3177496		Plate, Mounting		Appelez-nous	-
11	WP3177991		Screw (3)   (Replaces: 3177991)			Immediately	$ 6.80
12	3179777		Plug, Button		Appelez-nous	-
13	3180332		Extension, Shelf		Appelez-nous	-
13	WP3177991		Screw (8)   (Replaces: 3177991)			Immediately	$ 6.80
15	3179695		Bracket, Buzzer		Appelez-nous	-
15	3180129		Screw (2)		Appelez-nous	-
16	3179914		Buzzer, Meat Probe		Appelez-nous	-
16	WP3177991		Screw (2)   (Replaces: 3177991)			Immediately	$ 6.80
17	WP3177991		Screw (2)   (Replaces: 3177991)			Immediately	$ 6.80
17	3179532		Transformer		Appelez-nous	-
18	3177988		Screw (2)		Appelez-nous	-
18	3178187		Switch, Latch		Appelez-nous	-
