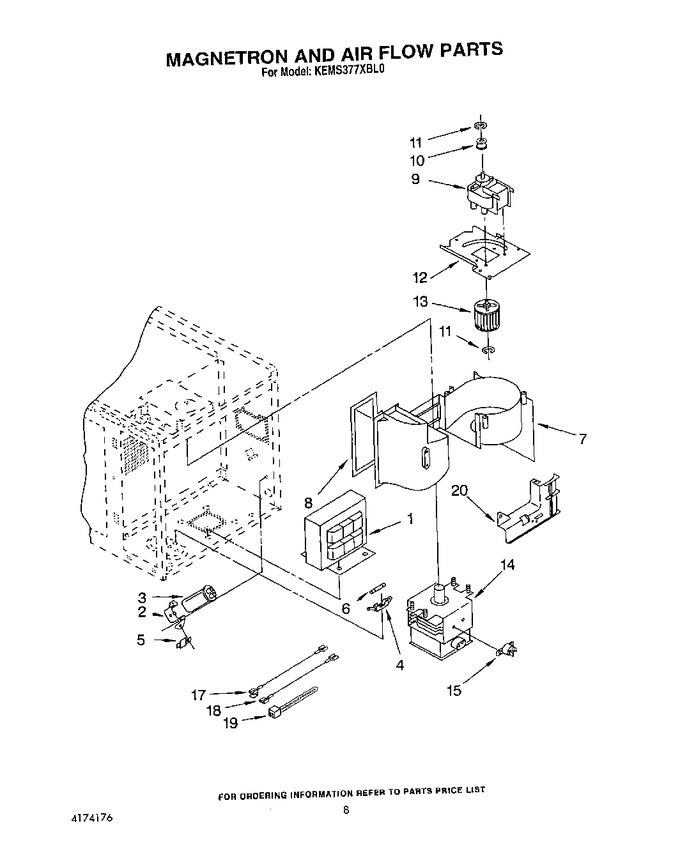

07 - Magnetron And Air Flow


08 - Stirrer Drive, Optional


09 - Microwave Compartment


10 - Microwave Control Panel


11 - Microwave Door And Latch


12 - Compoment Shelf And Latch


13 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3147853		Transformer		Appelez-nous	-
1	312185		Screw, 10-32 X 1/2 (4)		Appelez-nous	-
2	312619		Bracket, Capacitor		Appelez-nous	-
2	312713		Screw 8-32 X 3/8 (3)		Appelez-nous	-
3	661004		Capacitor		Appelez-nous	-
4	312713		Screw (2)		Appelez-nous	-
4	4454949		Block, Fuse   (Replaces: 314121)				$ 85.72
5	313830		Rectifier, High Voltage		Appelez-nous	-
6	WPW10017410		Fuse (15 Amp)   (Replaces: 309796)			Immediately	$ 20.01
7	313578		Air Duct (horizontal)		Appelez-nous	-
8	313752		Seal, Air Duct		Appelez-nous	-
9	313641		Motor		Appelez-nous	-
10	311922		Pulley, Motor		Appelez-nous	-
11	311999		``e`` Ring (2)		Appelez-nous	-
12	346893		Screw, 11-16 X 1/2 (7)		Appelez-nous	-
12	WP486579		Screw, 6 X 8/32 (4)   (Replaces: 311865)				$ 7.10
12	313601		Bracket, Motor		Appelez-nous	-
13	3147223		Wheel, Blower		Appelez-nous	-
14	660595		Magnetron		Appelez-nous	-
15	312782		Screw (2)		Appelez-nous	-
15	661165		Thermal Protector		Appelez-nous	-
17	3147863		Jumper, High Voltage 14 Ga.		Appelez-nous	-
18	313130		Jumper, High Voltage 20 Ga.		Appelez-nous	-
19	WPW10339879		Tie Cable   (Replaces: 309330)				$ 7.47
20	346893		Screw		Appelez-nous	-
20	3147262		Extension, Air Duct		Appelez-nous	-
