SELECT A DIAGRAM

02 - Control Panel, Lit/optional


03 - Oven


04 - Convection Fan


05 - Lower Oven Door


06 - Internal Convection Oven


07 - Magnetron And Air Flow

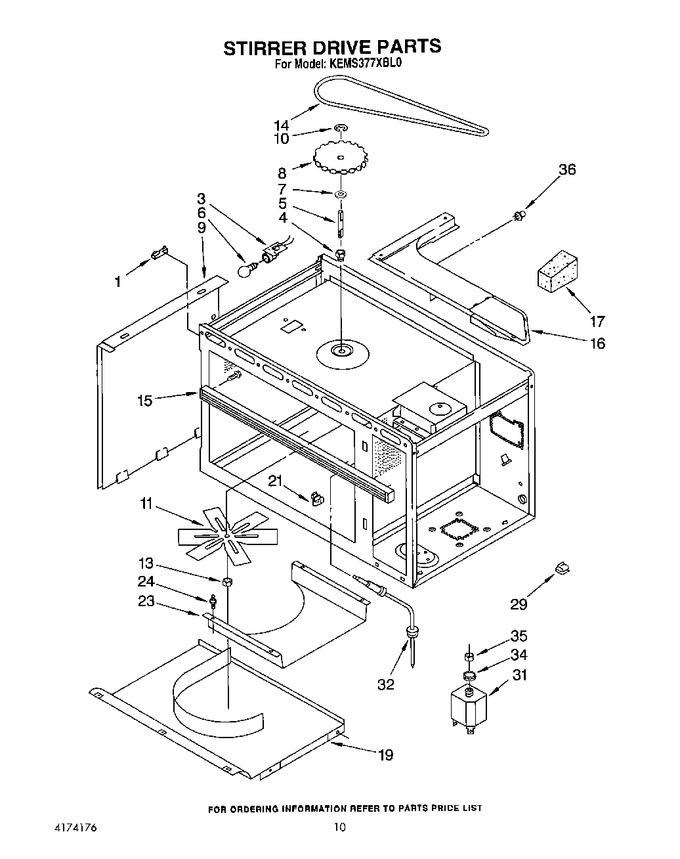

08 - Stirrer Drive, Optional


09 - Microwave Compartment


10 - Microwave Control Panel


11 - Microwave Door And Latch


12 - Compoment Shelf And Latch


13 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313855		Thermal Fuse		Appelez-nous	-
1	312713		Screw (3)		Appelez-nous	-
3	312713		Screw (2)		Appelez-nous	-
3	330514		Socket, Light		Appelez-nous	-
4	312023		Bushing, Stirrer		Appelez-nous	-
5	312026		Shaft, Stirrer		Appelez-nous	-
6	WP3395618		Bulb, Light   (Replaces: 313969)			Immediately	$ 74.89
7	312025		Washer, Stirrer		Appelez-nous	-
8	311923		Pulley,		Appelez-nous	-
9	4170323		Screw (4)		Appelez-nous	-
9	3147004		Cover, Side		Appelez-nous	-
10	311999		``e`` Ring		Appelez-nous	-
11	313595		Stirrer Blade		Appelez-nous	-
13	WP487939		Nut 1/4-20   (Replaces: 311721)				$ 7.76
14	WP313646		Belt, Drive   (Replaces: 313646)				$ 79.86
15	3150025		Grill, Air (screw (3) (black))		Appelez-nous	-
15	3150024		Grill, Air (screw (3) (white))		Appelez-nous	-
15	3149311		Grill, Air (white)		Appelez-nous	-
15	3149315		Grill, Air (black)		Appelez-nous	-
16	310423		Fastener		Appelez-nous	-
16	3150039		Baffle, Air		Appelez-nous	-
17	3150090		Seal, Foam		Appelez-nous	-
19	313740		Fastener (4)		Appelez-nous	-
19	313816		Screw, 8-32 X 1/2 (3)		Appelez-nous	-
19	313563		Cover, Stirrer		Appelez-nous	-
21	WP3149478		Support, Rack (4)   (Replaces: 313653)				$ 9.07
23	313735		Plate, Tunning (includes Illus. No. 24)		Appelez-nous	-
24	313739		Support (4)		Appelez-nous	-
29	312713		Screw		Appelez-nous	-
29	311311		Clip, Wire (2)		Appelez-nous	-
31	313679		Screw		Appelez-nous	-
31	661209		Jack, Probe		Appelez-nous	-
32	313527		Probe, Temperature		Appelez-nous	-
34	313105		Washer		Appelez-nous	-
35	313104		Nut		Appelez-nous	-
36	242829		18 Ga. 80~c Rating (red)		Appelez-nous	-
36	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
36	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
36	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
36	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
36	285368		Platinum		Appelez-nous	-
36	786032		Ebony (microwave)		Appelez-nous	-
36	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 73.65
36	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
36	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
36	832985		Rack, Cooking (bi-level)		Appelez-nous	-
36	350956		Paint, Spray 13 Oz. (almond)				$ 48.61
36	3147060		Sensor, Gas		Appelez-nous	-
36	313818		Screw (2)		Appelez-nous	-
36	350806		18 Ga. 80~c Rating (yellow 16 Ga. 80~c Rating)		Appelez-nous	-
36	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
36	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
36	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
36	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
36	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
36	242826		18 Ga. 80~c Rating (white)		Appelez-nous	-
36	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
36	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
36	242831		Wire (14 Ga. 200 C Red)				$ 342.23
36	242832		18 Ga. 80~c Rating (yellow 12 Ga. 150~c Rating)		Appelez-nous	-
36	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
36	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
36	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
36	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
36	WP261869		Citrine White   (Replaces: 261869)				$ 25.05
36	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
36	261890		Harvest Gold		Appelez-nous	-
36	285365		Toast		Appelez-nous	-
36	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
36	786020		Paint, Pressurized Spray (12 Oz.) (black)		Appelez-nous	-
36	285006		Spray Paint (black) 13 Oz.   (Replaces: 830864)				$ 53.90
36	350942		Primer				$ 84.73
36	350941		Leveler (primer)		Appelez-nous	-
36	261900		Citrine White 5 Oz. (m/w Liner)				$ 53.90
36	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
36	978883		Almond		Appelez-nous	-
36	261891		Harvest Gold		Appelez-nous	-
36	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
