SELECT A DIAGRAM

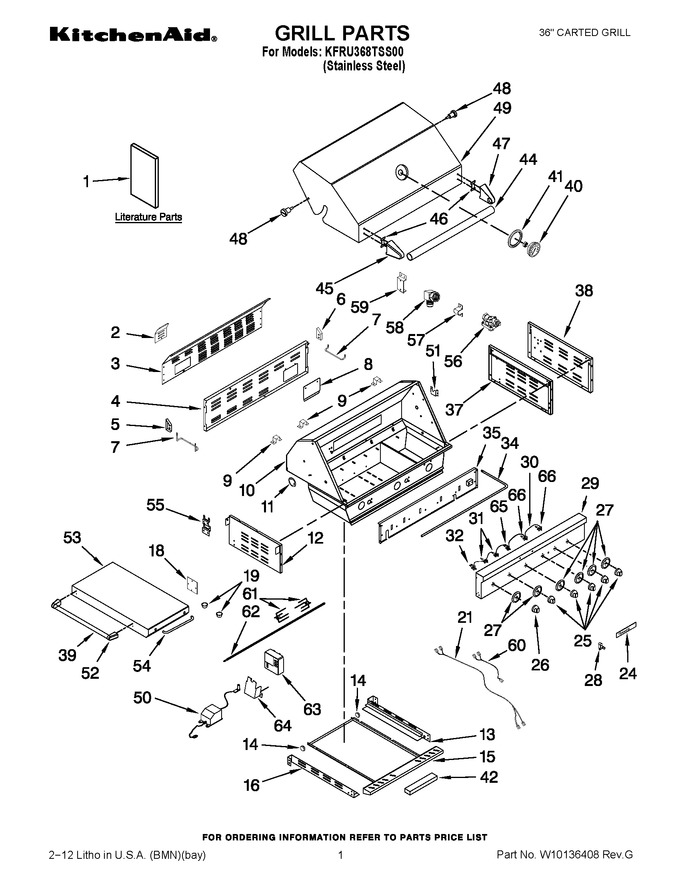

01 - Grill Parts


02 - Base Parts


03 - Drawer Parts


04 - Internal Warming Drawer Parts


05 - Burners, Grates, And Lights Parts


06 - Side Burner Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10110725		Use & Care Guide		Appelez-nous	-
1	W10110730		Conversion Instr. (lp To Natural)		Appelez-nous	-
2	W10128619		Cover, Rear		Appelez-nous	-
3	W10134803		Panel, Rear		Appelez-nous	-
4	W10137908		Panel, Access		Appelez-nous	-
5	W10128634		Bracket, Panel Left		Appelez-nous	-
6	W10128635		Bracket, Panel Right		Appelez-nous	-
7	W10128636		Bracket, Warming Rack		Appelez-nous	-
8	W10128637		Cover, Access Panel		Appelez-nous	-
9	W10128638		Clip, Wire		Appelez-nous	-
10	W10137907		Hood Assy		Appelez-nous	-
11	W10128640		Hole Plug		Appelez-nous	-
12	W10137906		Panel, Side Left		Appelez-nous	-
13	W10128644		Bracket, Grease Tray (right)		Appelez-nous	-
14	W10128655		Roller, Drip Tray				$ 63.78
15	W10133870		Drip Tray Assy (includes Rollers)		Appelez-nous	-
16	W10128657		Bracket, Grease Tray (left)		Appelez-nous	-
18	W10132690		Cover, Wire Terminal		Appelez-nous	-
19	W10132691		Bushing (plastic (no.sb22))		Appelez-nous	-
19	W10132692		Bushing (plastic (no.sb19))		Appelez-nous	-
21	W10133876		Harness, Wire Light				$ 44.46
24	W10128751		Nameplate		Appelez-nous	-
25	W10134821		Knob, Main Burner		Appelez-nous	-
26	W10134822		Knob, Rear Burner		Appelez-nous	-
27	W10134820		Bezel, Knob		Appelez-nous	-
28	W10128761		Switch, Light		Appelez-nous	-
29	W10137900		Panel, Control		Appelez-nous	-
30	W10137903		Harness, Wire Control		Appelez-nous	-
31	WPW10128764		Valve, Main Brnr   (Replaces: W10128764)				$ 299.61
32	W10128766		Valve, Rear Brnr		Appelez-nous	-
34	W10137904		Manifold		Appelez-nous	-
35	W10137905		Baffle, Front		Appelez-nous	-
37	W10132700		Side Panel, Right		Appelez-nous	-
38	W10137909		Panel, Outer (rt)		Appelez-nous	-
39	W10128660		Handle, Shelf		Appelez-nous	-
40	W10128777		Thermometer				$ 62.56
41	W10128779		Bezel, Thermometer		Appelez-nous	-
42	W10137899		Panel, Grease Tray		Appelez-nous	-
44	W10133877		Handle, Hood		Appelez-nous	-
45	W10128785		Endcap, Handle (left)		Appelez-nous	-
46	W10128786		Spacer, Handle		Appelez-nous	-
47	W10128787		Endcap, Handle (right)		Appelez-nous	-
48	W10128788		Hinge, Lid				$ 12.14
49	W10134798		Hood		Appelez-nous	-
50	WPW10247115		Transformer, Rotisserie Motor   (Replaces: W10134987)				$ 188.98
51	W10134988		Bracket, Spit		Appelez-nous	-
52	W10128659		Bracket, Handle		Appelez-nous	-
53	W10136946		Shelf, Side (lf)		Appelez-nous	-
54	W10136956		Bar, Tool		Appelez-nous	-
55	W10132695		Brkt, Trnsfrmr (btm)		Appelez-nous	-
56	WPW10132702		Regulator (ng)   (Replaces: W10132702)				$ 322.11
57	W10128747		Fixture, Manifold		Appelez-nous	-
58	W10128748		Connector (brass)		Appelez-nous	-
59	W10128749		Base, Manifold Fixture		Appelez-nous	-
60	W10134818		Harness, Wire		Appelez-nous	-
61	W10134981		Fork, Spit		Appelez-nous	-
62	W10134982		Rod, Spit		Appelez-nous	-
63	W10134985		Motor, Rotisserie		Appelez-nous	-
64	W10134986		Bracket, Rot. Mtr.		Appelez-nous	-
65	W10137901		Valve, Sear Burner		Appelez-nous	-
66	W10137902		Valve, Side Burner		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
