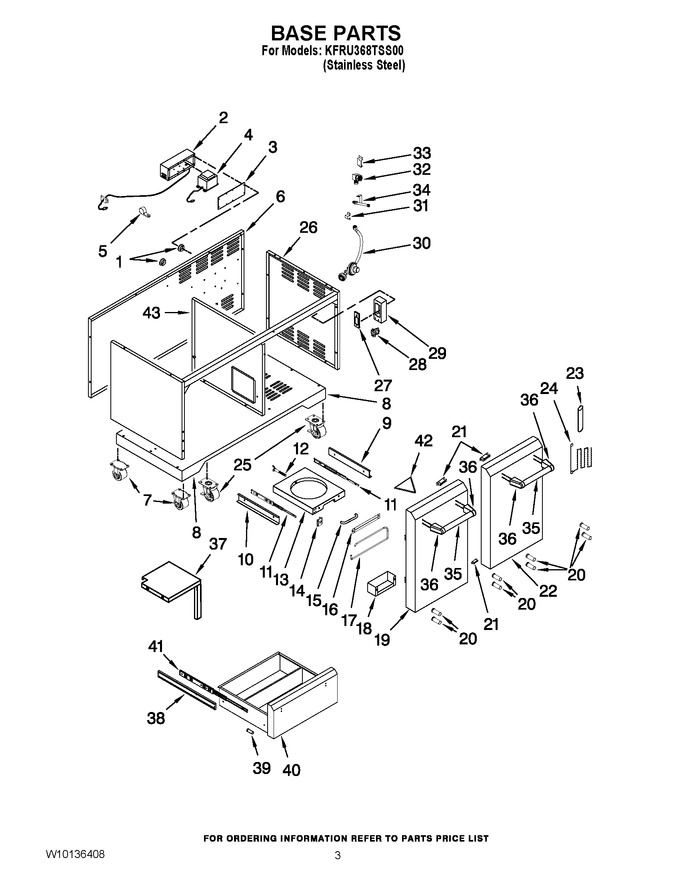

02 - Base Parts
03 - Drawer Parts
04 - Internal Warming Drawer Parts
05 - Burners, Grates, And Lights Parts
06 - Side Burner Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10128666 | Ring, Rubber |
|
- | |||||
| 2 | W10128667 | Box, Transformer |
|
- | |||||
| 3 | W10128668 | Cover, Transformr Box |
|
- | |||||
| 4 | W10134823 | Transformer |
|
- | |||||
| 5 | 7111P002-60 | Clamp, Wire (Replaces: W10128670) |
|
- | |||||
| 6 | W10137896 | Panel, Rear |
|
- | |||||
| 7 | W10128672 | Caster |
|
- | |||||
| 8 | N/P | Panel, Bottom (not Serviced) |
|
- | |||||
| 9 | W10128674 | Bracket, Tank Tray (right) |
|
- | |||||
| 10 | W10128675 | Bracket, Tank Tray (left) |
|
- | |||||
| 11 | W10137890 | Slide, Tank Tray |
|
- | |||||
| 12 | W10128677 | Bolt, Tank |
|
- | |||||
| 13 | W10137891 | Tray, Tank |
|
- | |||||
| 14 | W10128679 | Lock, Tank Tray |
|
- | |||||
| 15 | W10128680 | Handle, Tank Tray |
|
- | |||||
| 16 | W10128681 | Bracket, Towel Rack |
|
- | |||||
| 17 | W10128686 | Rack, Towel |
|
- | |||||
| 18 | W10136429 | Tray, Condiment |
|
- | |||||
| 19 | W10137894 | Drawer, Tank |
|
- | |||||
| 20 | W10128696 | Hole Plug |
|
- | |||||
| 21 | W10128697 | Magnet, Door |
|
- | |||||
| 22 | W10136431 | Door, Right |
|
- | |||||
| 23 | W10128703 | Bag, Lighting Rod |
|
- | |||||
| 24 | W10128704 | Rod, Lighting |
|
- | |||||
| 25 | W10128705 | Caster, W/brake |
|
- | |||||
| 26 | N/P | Panel, Side Assy (not Serviced) |
|
- | |||||
| 27 | W10128711 | Cover, Battery Box |
|
- | |||||
| 28 | W10128715 | Box, Battery |
|
- | |||||
| 29 | W10128719 | Case, Battery Box |
|
- | |||||
| 30 | W10137895 | Regulator |
|
- | |||||
| 31 | W10128747 | Fixture, Manifold |
|
- | |||||
| 32 | W10128748 | Connector (brass) |
|
- | |||||
| 33 | W10128749 | Base, Manifold Fixture |
|
- | |||||
| 34 | W10128750 | Commutator, Manifold |
|
- | |||||
| 35 | W10128661 | Handle, Door |
|
- | |||||
| 36 | W10128659 | Bracket, Handle |
|
- | |||||
| 37 | W10136427 | Rack, Storage |
|
- | |||||
| 38 | W10137889 | Bracket (right) |
|
- | |||||
| 38 | W10137885 | Bracket (left) |
|
- | |||||
| 39 | W10137886 | Plug, Door |
|
- | |||||
| 40 | W10137887 | Drawer, Top |
|
- | |||||
| 41 | W10137888 | Slide, Drawer |
|
- | |||||
| 42 | W10137892 | Gaurd, Tank Tray (left) |
|
- | |||||
| 42 | W10137893 | Gaurd, Tank Tray (right) |
|
- | |||||
| 43 | N/P | Partition, Cart (not Serviced) |
|
- |
