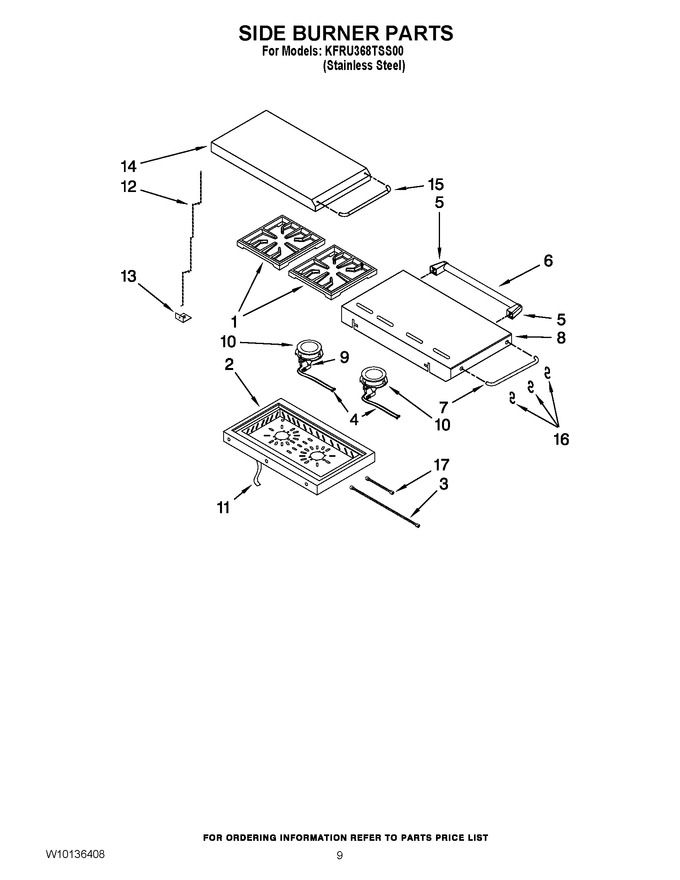

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10138024		Grate, Side Burner		Appelez-nous	-
2	W10137917		Shelf, Side Burner		Appelez-nous	-
3	W10137910		Tube, Side Burner		Appelez-nous	-
4	W10136947		Igniter (burner, Front)		Appelez-nous	-
4	W10137918		Igniter (burner, Rear)		Appelez-nous	-
5	W10128659		Bracket, Handle		Appelez-nous	-
6	W10128660		Handle, Shelf		Appelez-nous	-
7	W10136956		Bar, Tool		Appelez-nous	-
8	W10137923		Shelf, Side (rt)		Appelez-nous	-
9	W10137922		Elbow, Orifice		Appelez-nous	-
10	W10137076		Burner, Side		Appelez-nous	-
11	W10137915		Hose, Side Burner		Appelez-nous	-
12	W10138027		Chain, Lid		Appelez-nous	-
13	W10138028		Stator, Chain		Appelez-nous	-
14	W10138026		Lid, Side Burner		Appelez-nous	-
15	W10138025		Bar, Tool		Appelez-nous	-
16	W10128774		Hook		Appelez-nous	-
17	W10137916		Tube, Side Brnr		Appelez-nous	-
