SELECT A DIAGRAM

01 - Grill Parts


02 - Base Parts

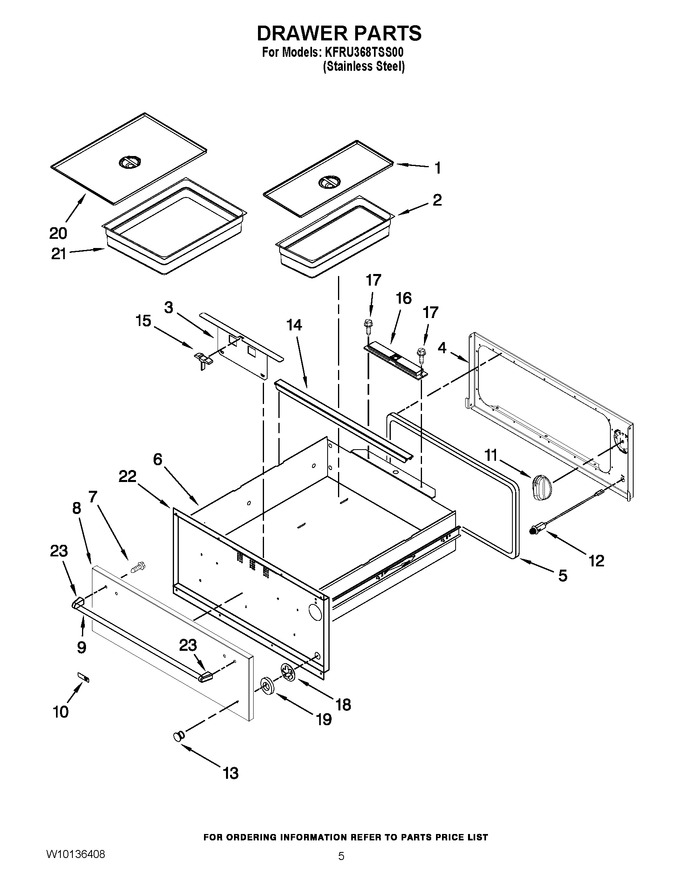

03 - Drawer Parts


04 - Internal Warming Drawer Parts


05 - Burners, Grates, And Lights Parts


06 - Side Burner Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10137687		Cover, Food Pan (small)   (Replaces: W10137687)				$ 11.84
2	W10137688		Pan, Food (small)		Appelez-nous	-
3	W10137694		Slide, Vent		Appelez-nous	-
4	W10137876		Door, Panel		Appelez-nous	-
5	W10137875		Gasket, Drawer		Appelez-nous	-
6	W10137693		Drawer, Warming		Appelez-nous	-
7	WP4449743		Screw   (Replaces: 4449743)				$ 6.80
8	W10137870		Panel, Front		Appelez-nous	-
9	W10128660		Handle, Drawer		Appelez-nous	-
10	9763444SS		Badge		Appelez-nous	-
11	W10137878		Knob, Thermostat		Appelez-nous	-
12	W10137874		Light, Indicator		Appelez-nous	-
13	9763644		Lens, Light (custom Wood, Panel Only)		Appelez-nous	-
13	4456314		Lens, Light (stainless)				$ 91.89
14	W10137692		Rail, Pan		Appelez-nous	-
15	W10137869		Grip, Vent		Appelez-nous	-
16	W10035910		Magnet				$ 181.67
17	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
18	4456862		Clip, Lens Retainer				$ 6.63
19	4456861		Spacer, Lens				$ 6.66
20	W10137689		Cover, Food Pan (large)				$ 66.47
21	W10137690		Pan, Food (lrg)		Appelez-nous	-
22	W10137868		Panel, Inner Cntrl		Appelez-nous	-
23	W10128659		Bracket, Handle		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
