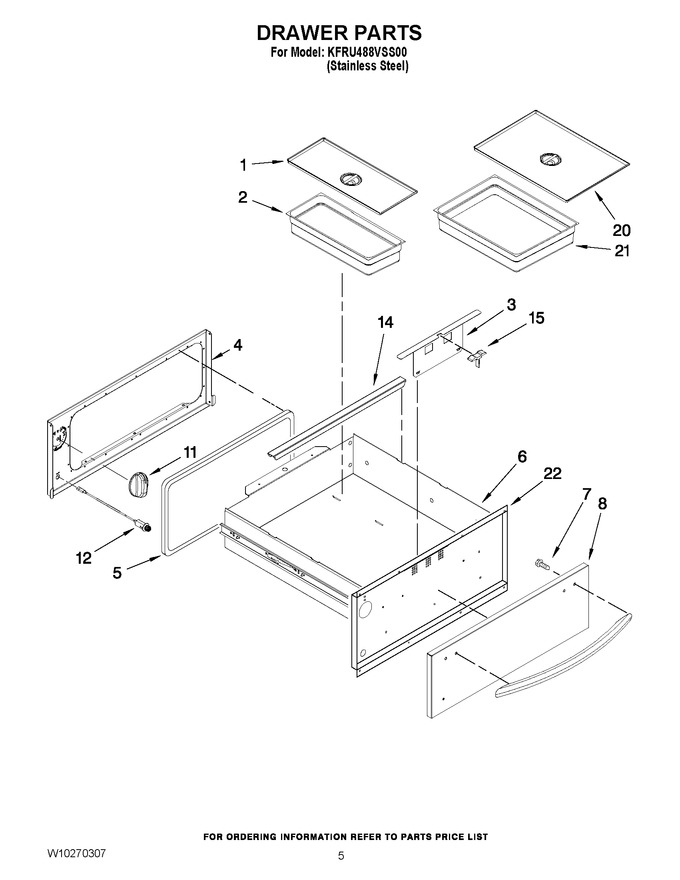

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10137687 | Cover, Food Pan (small) (Replaces: W10137687) |
|
$ 11.84 | |||||
| 2 | W10137688 | Pan, Food (small) |
|
- | |||||
| 3 | W10137694 | Slide, Vent |
|
- | |||||
| 4 | W10244976 | Door, Panel |
|
- | |||||
| 5 | W10137875 | Gasket, Drawer |
|
- | |||||
| 6 | W10137693 | Drawer, Warming |
|
- | |||||
| 7 | WP4449743 | Screw (Replaces: 4449743) |
|
$ 6.80 | |||||
| 8 | W10137870 | Panel, Front |
|
- | |||||
| 11 | W10137878 | Knob, Thermostat |
|
- | |||||
| 12 | W10137874 | Light, Indicator |
|
- | |||||
| 14 | W10137692 | Rail, Pan |
|
- | |||||
| 15 | W10137869 | Grip, Vent |
|
- | |||||
| 20 | W10137689 | Cover, Food Pan (large) |
|
$ 66.47 | |||||
| 21 | W10137690 | Pan, Food (lrg) |
|
- | |||||
| 22 | W10137868 | Panel, Inner Cntrl |
|
- |
