01 - Grill Parts


02 - Base Parts


03 - Drawer Parts


04 - Internal Warming Drawer Parts


05 - Burners, Grates, And Lights Parts


06 - Side Burner Parts


07 - Optional Parts

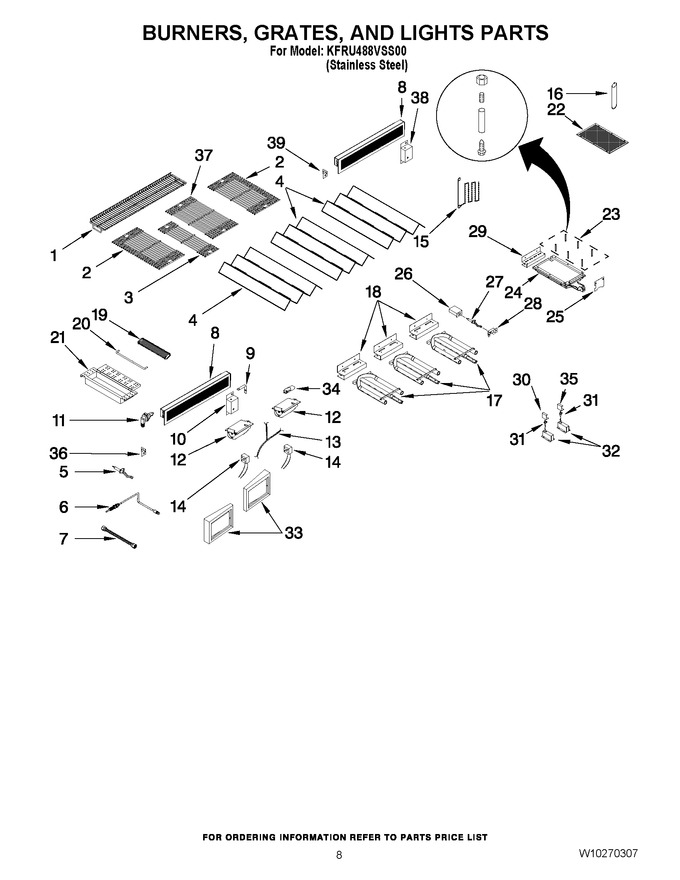

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10140223		Rack, Warming		Appelez-nous	-
2	WPW10244714		Rack, Large   (Replaces: W10244714)				$ 109.77
3	W10244176		Rack, Small		Appelez-nous	-
4	W10244180		Plate, Sear		Appelez-nous	-
5	W10298673		Ignitor,hot Rear Burner		Appelez-nous	-
6	W10244204		Thermocouple, Rear,burner		Appelez-nous	-
7	W10140211		Flex Tube, Rear Burner		Appelez-nous	-
8	W10140227		Burner, Rear		Appelez-nous	-
9	W10244186		Bracket, Rear Thermocouple		Appelez-nous	-
10	W10244184		Cover, Rear Thermocouple (lf)		Appelez-nous	-
11	W10244205		Orifice, Rear Burner		Appelez-nous	-
12	W10140242		Light, Grill (includes Bulb)		Appelez-nous	-
13	W10140244		Harness, Wire Lights		Appelez-nous	-
14	W10128631		Harness, Ceramic		Appelez-nous	-
15	W10285882		Rod, Lighting		Appelez-nous	-
16	W10285881		Bag, Lighting Rod		Appelez-nous	-
17	W10128775		Burner, Main				$ 288.82
18	W10244202		Bracket,main Brnr				$ 27.50
19	W10134790		Grate, Smoke Box		Appelez-nous	-
20	W10134791		Handle, Smoke Box		Appelez-nous	-
21	W10244190		Box, Smoke		Appelez-nous	-
22	W10294369		Screen, Sear Brnr				$ 81.59
23	W10303326		Rod, Kit				$ 86.70
24	WPW10134795		Burner, Sear   (Replaces: W10140225)				$ 299.63
25	W10247018		Panel, Sear Brnr		Appelez-nous	-
26	W10244200		Igniter, Gas Coll.		Appelez-nous	-
27	W10133874		Igniter, Sear Brnr		Appelez-nous	-
28	W10244199		Bracket, Sear Ign.		Appelez-nous	-
29	W10244201		Bracket, Sear Brnr		Appelez-nous	-
30	W10244198		Collector, Gas Left		Appelez-nous	-
31	W10247024		Ignitor,hot Surfce		Appelez-nous	-
32	W10244197		Bracket, Main Brnr		Appelez-nous	-
33	W10140258		Light Set		Appelez-nous	-
34	8204670		Bulb, Light			Immediately	$ 27.23
35	W10244196		Collectr,gas Right		Appelez-nous	-
36	W10244185		Bracket, Ignitor Rear Burner (lf)		Appelez-nous	-
37	W10244177		Rack, Medium		Appelez-nous	-
38	W10244189		Cover, Rear Thermocouple (rt)		Appelez-nous	-
39	W10244188		Bracket, Ignitor Rear Burner (rt)		Appelez-nous	-
