01 - Grill Parts
02 - Base Parts
03 - Drawer Parts

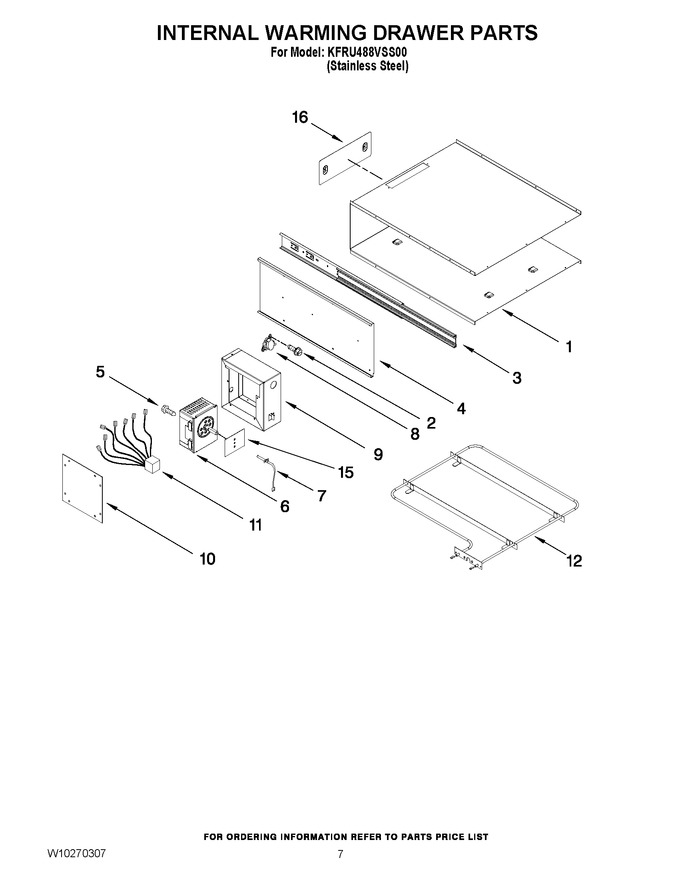

04 - Internal Warming Drawer Parts
05 - Burners, Grates, And Lights Parts
06 - Side Burner Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10244974 | Wrapper |
|
- | |||||
| 2 | 313806 | Screw |
|
- | |||||
| 3 | W10357502 | Slide Assembly |
|
- | |||||
| 4 | W10137883 | Panel (right) |
|
- | |||||
| 4 | W10137882 | Panel (left) |
|
- | |||||
| 5 | WP486579 | Screw (Replaces: 311865) |
|
$ 7.10 | |||||
| 6 | W11708324 | Control (Replaces: W10137873) |
|
$ 165.42 | |||||
| 7 | W10137881 | Sensor, Wrm.drwr. |
|
- | |||||
| 8 | W10137879 | Thermal Fuse |
|
- | |||||
| 9 | W10137872 | Enclosure, Electric |
|
- | |||||
| 10 | W10137871 | Cover, Enclosure |
|
- | |||||
| 11 | W10137880 | Harness, Wire |
|
- | |||||
| 12 | W10137877 | Element, Heating |
|
- | |||||
| 15 | W10118113 | Seal, Switch |
|
- | |||||
| 16 | W10118073 | Heat Shield |
|
- |
