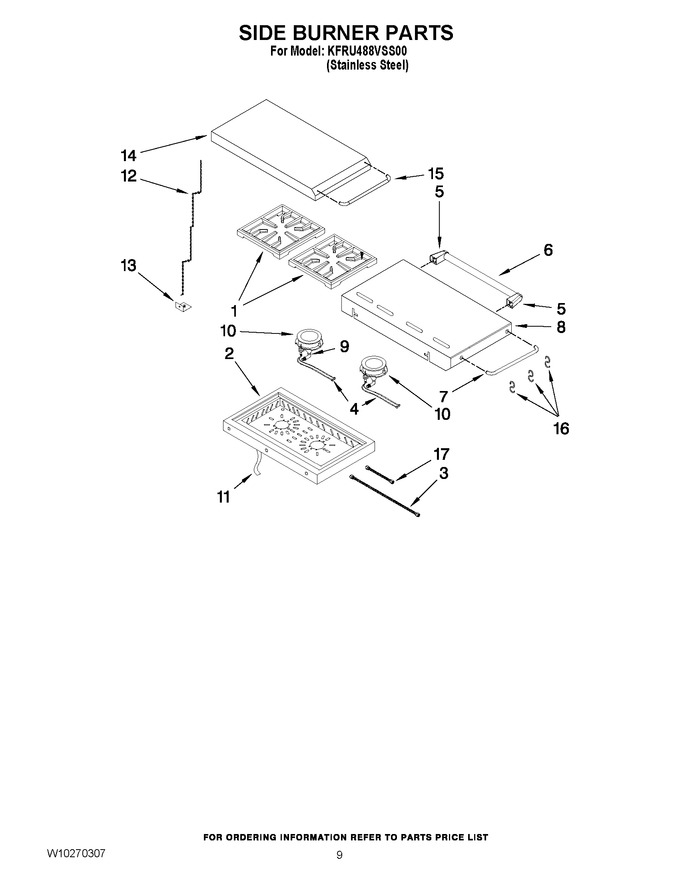

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10244943		Grate, Side Burner		Appelez-nous	-
2	W10140271		Shelf, Side Burner		Appelez-nous	-
3	W10137910		Tube, Side Burner		Appelez-nous	-
4	W10247024		Igniter (burner, Front)		Appelez-nous	-
4	W10247025		Igniter (burner, Rear)		Appelez-nous	-
5	W10137052		Bracket, Handle		Appelez-nous	-
6	W10128660		Handle, Shelf		Appelez-nous	-
7	W10136956		Bar, Tool		Appelez-nous	-
8	W10244339		Shelf, Side (rt)		Appelez-nous	-
9	W10244342		Elbow, Orifice		Appelez-nous	-
10	W10244942		Manifold, Side Brn		Appelez-nous	-
11	W10137915		Hose, Side Burner		Appelez-nous	-
12	W10285667		Chain, Lid		Appelez-nous	-
13	W10244944		Stator, Chain		Appelez-nous	-
14	W10138026		Lid, Side Burner		Appelez-nous	-
15	W10285647		Bar, Tool		Appelez-nous	-
16	W10128774		Hook		Appelez-nous	-
17	W10137916		Tube, Side Brnr		Appelez-nous	-
