Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 12075003 Motor, Ref Fan (d.c.) Special Order $ 136.78

12 12075003 Motor, Ref Fan (d.c.) Special Order $ 136.78

13 12440301 Assy, Elec Heater Appelez-nous -
21 12349201 Brkt, Dc Fan Appelez-nous -
22 12404701 Plate, Fan Mount Appelez-nous -
31 5149-P Screw,no.8-32 X 1-1/4 Fl Hd Scre Appelez-nous -
32 M0288306 Nut-speed Clip Appelez-nous -
41 WP488130 Nut-keps   (Replaces: M0280801) Special Order $ 7.32

42 M0218137 Screw Appelez-nous -
43 M0104102 Clip, Cord Special Order $ 8.10

51 A3189370 Gasket-foam Appelez-nous -
53 M0327801 Electro, Tap Appelez-nous -
61 A4617501 Wire Nut Appelez-nous -
63 12332314 Grille, Toe (e-coat) Appelez-nous -
71 M0320565 Terminal A Appelez-nous -
73 12332310 Grille, Toe (e-ct) Appelez-nous -
93 A4539601 Pop Rivet Appelez-nous -
9991 W11227370 Screw, Lock Brake Mounting   (Replaces: M0220418) In-Stock Immediately $ 14.91

NI R9800028 Instructions, R9800027 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

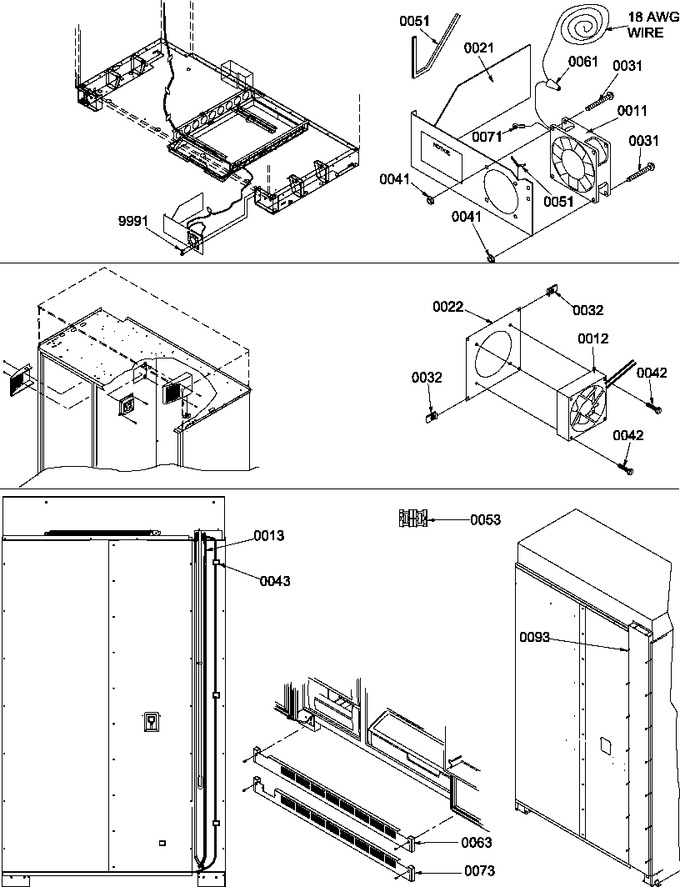

Diagram for S148CA03 (BOM: P1305501W)
