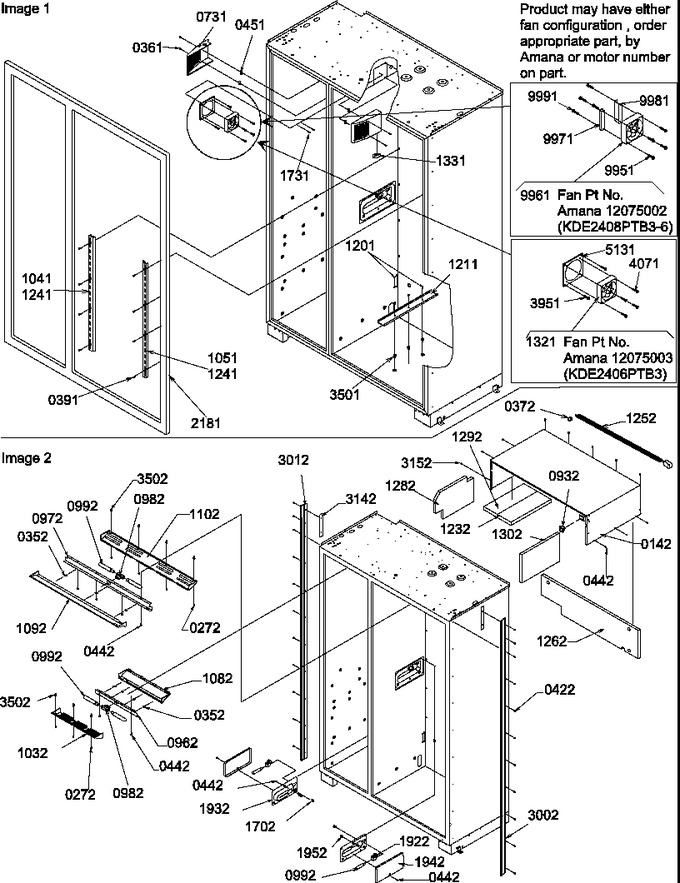

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 142 | 12213401 | Weld, Mc Cover |
|
- | |||||
| 272 | M0238846 | Screw-sm |
|
- | |||||
| 352 | M0108201 | Clip, `s` |
|
- | |||||
| 361 | M0221913 | Screw, Sm |
|
- | |||||
| 372 | A4554806 | Snap Bushing |
|
- | |||||
| 391 | M0238535 | Screw, Sm |
|
- | |||||
| 422 | 8169479 | Screw (Replaces: M0215318) |
|
$ 7.30 | |||||
| 442 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 451 | M0288306 | Nut-speed Clip |
|
- | |||||
| 731 | 12203701 | Cover-fan |
|
- | |||||
| 932 | 12074801 | Switch-power |
|
- | |||||
| 962 | 12055701 | Brkt-fz Light |
|
- | |||||
| 972 | 12184301 | Brkt-ref Light |
|
- | |||||
| 982 | 12096901 | Socket-light |
|
- | |||||
| 992 | WPA3073101 | Bulb 120v. 40w. (Replaces: A3079001) |
|
Immediately | $ 12.72 | ||||
| 1032 | 12034901 | Lens, Frz. Light |
|
- | |||||
| 1041 | 12230801 | Ladder-ref L Side |
|
- | |||||
| 1051 | 12230901 | Ladder-ref R Side |
|
- | |||||
| 1082 | 12074501 | Cover, Frz. Light |
|
- | |||||
| 1092 | 12184401 | Cover-ref Light |
|
- | |||||
| 1102 | 12184501 | Lens-ref Light |
|
- | |||||
| 1201 | 67006425 | Screw, Sm (Replaces: M0211019) |
|
Immediately | $ 7.30 | ||||
| 1211 | 12118901 | Track, Deli Drawer |
|
- | |||||
| 1232 | 12074701 | Insul-mc Cvr |
|
- | |||||
| 1241 | 12233802 | Gasket-ref Ladder |
|
- | |||||
| 1252 | 10916507 | Cord, Power |
|
- | |||||
| 1262 | 12184901 | Insul-back Mc Cover |
|
- | |||||
| 1282 | 12074601 | Insul-l Mc Cvr |
|
- | |||||
| 1292 | 12074704 | Insul-m C Cover |
|
- | |||||
| 1302 | 12074702 | Insul-r Mc Cvr |
|
- | |||||
| 1321 | Y00000000 | See Note Motor-ref Fan -- (see Part Illustration) |
|
- | |||||
| 1331 | C8983701 | Thermistor Domestic |
|
- | |||||
| 1702 | B5733302 | Clip, Ground |
|
- | |||||
| 1731 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 | |||||
| 1922 | 10281601 | Socket-light |
|
- | |||||
| 1932 | 10270203 | Housing, Light |
|
- | |||||
| 1942 | Y10270101 | Cover-light |
|
- | |||||
| 1952 | M0580007 | Grommet, Screw |
|
- | |||||
| 2181 | 12091201 | Frame-breaker |
|
- | |||||
| 3002 | 12118601 | Extrsn, Cabinet R. |
|
- | |||||
| 3012 | 12118602 | Extrsn, Cabinet L. |
|
- | |||||
| 3142 | 12135401 | Shim, Cab Trim |
|
- | |||||
| 3152 | A4539601 | Pop Rivet |
|
- | |||||
| 3501 | M0581001 | Grommet, Screw |
|
- | |||||
| 3502 | M0581001 | Grommet, Screw |
|
- | |||||
| 3951 | WP489474 | Screw 1`` (Replaces: M0211021) |
|
Immediately | $ 8.55 | ||||
| 4071 | M0218136 | Screw |
|
- | |||||
| 5131 | 12404701 | Plate, Fan Mount |
|
- | |||||
| 9951 | M0218136 | Screw |
|
- | |||||
| 9961 | Y00000000 | See Note Motor-ref Fan -- (see Part Illustration) |
|
- | |||||
| 9971 | 12197701 | Brkt-sm Ff Fan |
|
- | |||||
| 9981 | 12197601 | Brkt-lg Ff Fan |
|
- | |||||
| 9991 | WP489474 | Screw 1`` (Replaces: M0211021) |
|
Immediately | $ 8.55 | ||||
| NI | A3189368 | Gasket, Foam |
|
- |
