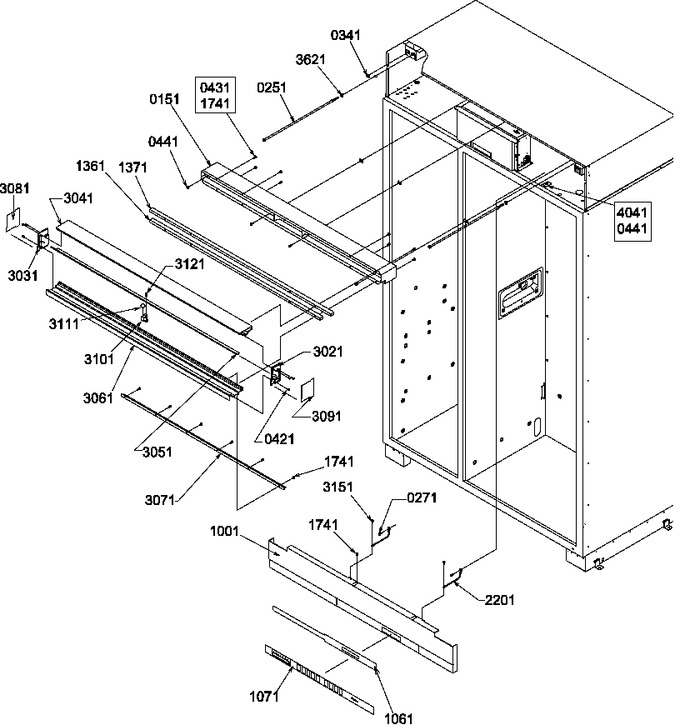

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 151 | 10942508 | Weld,air Duct-e Ct |
|
- | |||||
| 251 | M0223603 | Screw- Lag |
|
- | |||||
| 271 | M0238846 | Screw-sm |
|
- | |||||
| 341 | M0288120 | Speed Nut |
|
- | |||||
| 421 | 8169479 | Screw (Replaces: M0215318) |
|
$ 7.30 | |||||
| 431 | M0238921 | Screw, Sm |
|
- | |||||
| 441 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 1001 | 12210301 | Cover-cont Panel |
|
- | |||||
| 1061 | 12235201 | Switch, Keyboard |
|
- | |||||
| 1071 | 12201601 | Overlay-keyboard |
|
- | |||||
| 1361 | 12184801 | Spacer, Extrsn |
|
- | |||||
| 1371 | 12184802 | Spacer, Extrsn |
|
- | |||||
| 1741 | M0224128 | Screw |
|
- | |||||
| 2201 | 12064001 | Support, Cont Pnl |
|
- | |||||
| 3021 | 12173401 | End Cap, R Grille |
|
- | |||||
| 3031 | 12173402 | End Cap, L Grille |
|
- | |||||
| 3041 | 12127702 | Extrsn, Up Grille |
|
- | |||||
| 3051 | 12127802 | Extrsn, Ctr Grille |
|
- | |||||
| 3061 | 12173303 | Extrns, Lw Grille |
|
- | |||||
| 3071 | 12193201 | Extrsn, Grille Ext |
|
- | |||||
| 3081 | 12119801 | Cover, End Cap (left) |
|
- | |||||
| 3091 | 12119802 | Cover, End Cap (right) |
|
- | |||||
| 3101 | 12201201 | Supt-air Grille |
|
- | |||||
| 3111 | A3189371 | Gasket-foam |
|
- | |||||
| 3121 | WPW10068250 | Screw (Replaces: M0234029) |
|
$ 4.27 | |||||
| 3151 | A4539601 | Pop Rivet |
|
- | |||||
| 3621 | M0270510 | Washer |
|
- | |||||
| 4041 | 12414701 | Brkt, Cont Cover |
|
- |
