SELECT A DIAGRAM

01 - Control Assy


02 - Evap Area


03 - Fz/ref Door Assemblies


04 - Heater & Condensate Evaporation Fan Kit

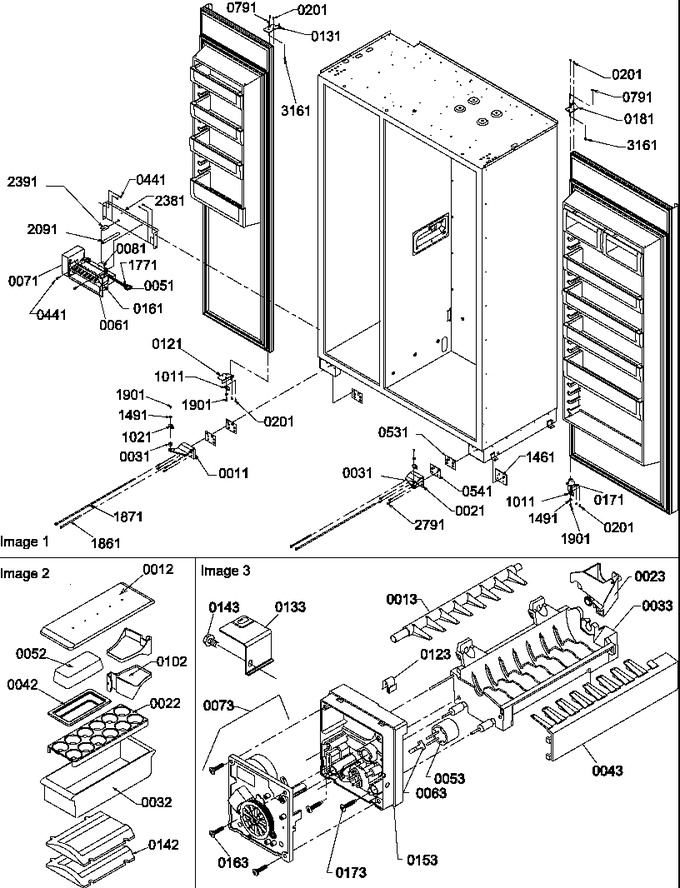

05 - Hinges, Ice Maker And Accessories


06 - Ladders And Light Shields


07 - Roller Assy And Back Unit


08 - Shelving And Crispers


09 - Top Hinges, Condenser & Compressor Area


10 - Upper Grille & Keyboard


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12222002		Plate-l Lw Hinge		Appelez-nous	-
12	10436404		Lid, Utility				$ 60.85
13	WP627843		Ejector   (Replaces: R0183119)				$ 87.78
21	12222001		Plate-r Lw Hinge		Appelez-nous	-
22	10436506		Tray, Egg				$ 8.28
23	WP628356		Cup, Water Fill/bearing   (Replaces: R0156839)				$ 53.75
31	12042902		Bushing, Hinge		Appelez-nous	-
32	10423129		Bin-utility		Appelez-nous	-
33	D7824706Q		Assy, Mold & Heater   (Replaces: R0156669)			Immediately	$ 167.35
42	12052701		Dish, Butter		Appelez-nous	-
43	WP2182124		Stripper, Ice   (Replaces: R0183120)				$ 90.35
51	WPD7813010		Harness, Ice Maker Mod   (Replaces: D7813004)			Immediately	$ 73.97
52	12070901		Cover-butter		Appelez-nous	-
53	WP627985		N/a See Notes-thermostat   (Replaces: R0161060)				$ 114.64
61	D7877001		Arm,ice Maker Shut Off		Appelez-nous	-
63	WP2315522		Retainer   (Replaces: R0191094)				$ 11.60
71	WPW10289690		Cover, Ice Maker   (Replaces: B5724506)			Immediately	$ 8.82
73	W10190935		Module & Mtr Assy,120v/60hz   (Replaces: R0167203)			Immediately	$ 136.28
81	B5720302		Clip		Appelez-nous	-
102	12104901		Snugger-shelf		Appelez-nous	-
121	12119502		Hinge-tap L Lw		Appelez-nous	-
123	WP628379		Clip, Thermal Fuse   (Replaces: 10319801)				$ 11.10
131	12043404		L Up Pivot Plt Ass`y (pin)		Appelez-nous	-
133	B8391802		Bracket, I/m		Appelez-nous	-
142	12203901		Module, Wine		Appelez-nous	-
143	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 7.30
153	WP2195914		Support   (Replaces: R0183121)				$ 109.80
161	D7824706Q		Ice Maker   (Replaces: D7824705)			Immediately	$ 167.35
163	R0186041		Screw		Appelez-nous	-
171	12119501		Hinge-tap R Lw		Appelez-nous	-
173	R0186040		Screw		Appelez-nous	-
181	12043403		R Up Pivot Plt Ass`y (pin)		Appelez-nous	-
201	W11573362		Screw, T. F.   (Replaces: M0226233)				$ 14.72
441	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
531	12198501		Shim-lower Hinge		Appelez-nous	-
541	12198502		Shim-lower Hinge		Appelez-nous	-
791	40370P01		Nylon Flat Washer		Appelez-nous	-
1011	12055602		Closure-door		Appelez-nous	-
1021	12055601		Closure-door		Appelez-nous	-
1461	12337901		Plate, Hinge Tap		Appelez-nous	-
1491	M0272803		Lock Washer		Appelez-nous	-
1771	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
1861	M0204339		Screw Bolt K		Appelez-nous	-
1871	10093305		Screw-mach		Appelez-nous	-
1901	M0202528		Screw		Appelez-nous	-
2091	A3127415		Ext-fill Tube----na		Appelez-nous	-
2381	12265402		Nd Im Support-e Ct		Appelez-nous	-
2391	12265501		Brkt, Nd Ice Maker		Appelez-nous	-
2791	M0238734		Screw, 10-32 X 1.250`` Pan Hd		Appelez-nous	-
3161	M0220928		Screw, Shoulder		Appelez-nous	-
NI	12119607		Shim-door Brkt		Appelez-nous	-
NI	12197902		Toe Grille-e Ct		Appelez-nous	-
NI	M0223509		Screw-lag		Appelez-nous	-
NI	WP98008545		Screw, Sm (blk)   (Replaces: M0210443)				$ 18.60
NI	12332314		Grille, Toe (e-coat)		Appelez-nous	-
NI	10834701		Label, Im		Appelez-nous	-
NI	A1055101		Spring, Antikink		Appelez-nous	-
NI	A3076901		Plug-button				$ 5.70
NI	12119602		Shim-door Brkt		Appelez-nous	-
NI	WP627018		Nut, Sleeve   (Replaces: M0753001)				$ 11.51
NI	M0104102		Clip, Cord				$ 8.10
NI	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 8.25
NI	M0213828		Screw		Appelez-nous	-
NI	12098003		Brkt-dec Panel		Appelez-nous	-
NI	12119603		Shim-door Brkt		Appelez-nous	-
NI	M0223729		Screw		Appelez-nous	-
NI	B5720304		Clip		Appelez-nous	-
NI	12098008		Brkt-dec Panel		Appelez-nous	-
NI	12098009		Brkt-dec Panel		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
