Diagram # Part Number Description Series Availability Ships Price Add to Cart
12 12033501 Brkt-roller Appelez-nous -
22 M0286708 Nut, Speed Special Order $ 47.85

32 12034201 Roller-cabinet Appelez-nous -
42 M1252901 Pin-pivot Appelez-nous -
52 M0273801 Ring-retaining Appelez-nous -
111 WPW10339879 Tie   (Replaces: M0321202) Special Order $ 8.30

121 12199501 Block, Return Air Appelez-nous -
221 C8971903 Tunnel, Heat Exchanger Appelez-nous -
223 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

233 12115101 Clamp, Tube Appelez-nous -
443 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

553 12187701 Cover-ht Ex Appelez-nous -
1321 12075003 Motor, Ref Fan (d.c.) Special Order $ 136.78

1801 12062101 Assy, Roller Brkt Appelez-nous -
1811 M1200006 Cotter Pin K Appelez-nous -
1821 M1200203 Pin-clevis Appelez-nous -
1831 M0295308 Nut, Rivet Appelez-nous -
1851 WP3400527 Screw   (Replaces: M0267153) Special Order $ 8.07

1881 WP489128 Screw   (Replaces: M0220417) Special Order $ 11.40

2101 12070801 Valve, Water Appelez-nous -
2111 WPB5705307 Tube, Plastic (wvalve To I/m   (Replaces: B5705313) Special Order $ 13.05

2121 12071201 Clip-drain Loop Appelez-nous -
2141 12071102 Brkt, Shipping Appelez-nous -
2151 12150601 Foot, Leveling Appelez-nous -
2161 12071302 Pan, Drain Appelez-nous -
2261 12113103 Pad, Leveling Foot Appelez-nous -
2271 12234701 Rail-pan Appelez-nous -
2281 12234702 Assy, Pan Rail (left) Appelez-nous -
2413 A3189369 Gasket, Foam Appelez-nous -
2423 A3189370 Gasket-foam Appelez-nous -
3151 A4539601 Pop Rivet Appelez-nous -
3153 A4539601 Pop Rivet Appelez-nous -
3353 M0102303 Clamp Appelez-nous -
3631 12180503 Shield, Power Cord Appelez-nous -
3931 WP90767 Screw, Sm   (Replaces: M0224416) In-Stock Immediately $ 8.25

3961 12215001 Bracket, Serp Clip Appelez-nous -
3971 12143801 Angle, Drain Pan Appelez-nous -
3981 12197501 Serpentine, Drain Pan Appelez-nous -
4491 12349801 Trough-drain Appelez-nous -
5101 12349201 Brkt, Dc Fan Appelez-nous -
5111 5149-P Screw,no.8-32 X 1-1/4 Fl Hd Scre Appelez-nous -
5121 WP488130 Nut-keps   (Replaces: M0280801) Special Order $ 7.32

NI WPA3223101 Insert, Plastic Tube   (Replaces: A3223101) Special Order $ 8.21


    View Diagram in Separate Window     Print Icon   Print Part List

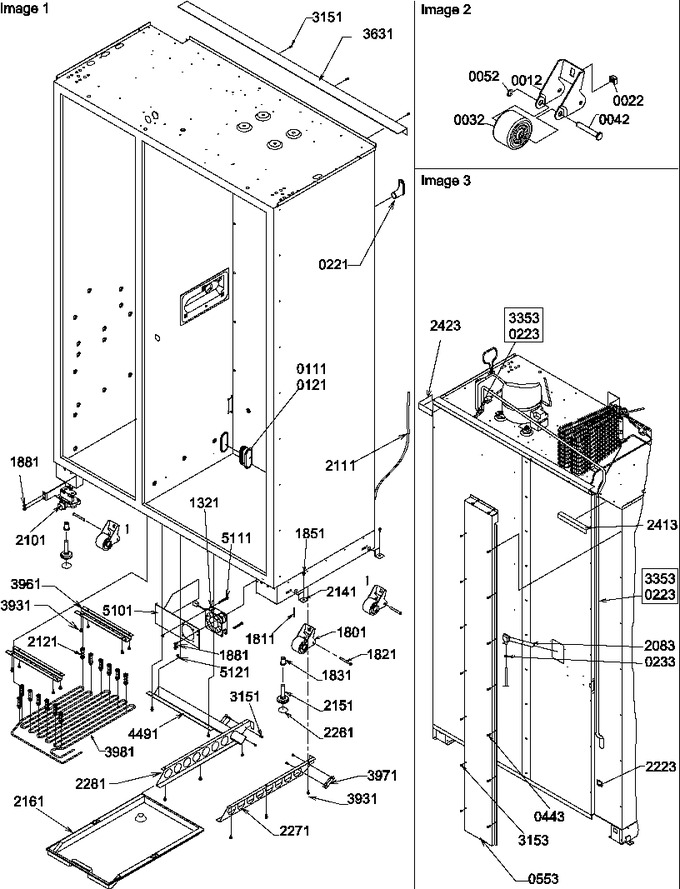

Diagram for S148CA03 (BOM: P1305501W)
