Diagram # Part Number Description Series Availability Ships Price Add to Cart
12 12197201 Evaporator Appelez-nous -
13 12198301 Shroud, Evap. Fan Appelez-nous -
22 12333601 Assy, Ht Exch Appelez-nous -
23 10771701 Brkt, Evap. Fan Appelez-nous -
32 10428411 Heater, Evap Appelez-nous -
33 10771801 Brkt, Mtr/shroud Appelez-nous -
42 W11673433 Clip, Evap Heater   (Replaces: 10428101) Special Order $ 148.18

43 10654208 Motor, Evaporator Appelez-nous -
52 WP10442411 Thermostat, Defrost   (Replaces: 10442407) In-Stock Immediately $ 44.02

53 WP2264462 Grommet   (Replaces: A1017202) In-Stock Immediately $ 46.17

72 10629001 Block, Air Coil (right) Appelez-nous -
73 W10116797 Fan,evap   (Replaces: 10855402) In-Stock Immediately $ 8.56

83 WP90767 Screw, Sm   (Replaces: M0224416) In-Stock Immediately $ 8.25

391 M0238535 Screw, Sm Appelez-nous -
441 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

571 12234902 Cover, Lw Evap (e-ct) Appelez-nous -
581 12196302 Upper Evap Cvr-e Ct Appelez-nous -
591 12231801 Ladder, Frz L/r Side Appelez-nous -
621 12233806 Gasket, Ladder Appelez-nous -
741 12193802 Gasket, Therm Appelez-nous -
751 12234801 Brkt-evap Cover Appelez-nous -
1331 C8983701 Thermistor Domestic Appelez-nous -
1641 10623003 Clip, Evaporator Appelez-nous -
1731 WP489399 Screw   (Replaces: M0232903) Special Order $ 7.30

1981 A3030361 Gasket Appelez-nous -
1991 A3030303 Gasket (per Foot) Appelez-nous -
2001 10527401 Clip, Evap Appelez-nous -
2091 A3127402 Ext-fill Tube Appelez-nous -
2381 A3030363 Gasket Appelez-nous -
2401 A3189368 Gasket, Foam Appelez-nous -
2421 A3189370 Gasket-foam Appelez-nous -
2721 A3030302 Gasket Appelez-nous -
2731 12234001 Grommet-vibration Appelez-nous -
2741 M0238859 Screw, Shoulder Appelez-nous -
2901 12344302 Duct, Evap Fan (e Ct) Appelez-nous -
2911 12344602 Cover, Ctr Evap (e-ct) Appelez-nous -
2921 12344502 Grille, Evap Fan (e Ct) Appelez-nous -
2931 12344402 Tran, Evap Fan (e Ct) Appelez-nous -
3501 M0581001 Grommet, Screw Appelez-nous -
3611 WP489399 Screw, Se   (Replaces: M0232929) Special Order $ 7.30

3901 12235002 Lw Evap Cover-e Ct Appelez-nous -
3941 12215101 Brkt-evap Clip Appelez-nous -
4031 A3189337 Gasket Appelez-nous -
4071 M0218136 Screw Appelez-nous -
4601 12223101 Brkt-r Evap Fan Appelez-nous -
4611 12344201 Brkt, Evap Fan Appelez-nous -
4621 12344102 Cover, Evap Mtr (e Ct) Appelez-nous -
5001 12102501 Retainer, Harness Appelez-nous -
5011 M0321207 Wire-tie Appelez-nous -
5041 A3189348 Gasket, Foam Appelez-nous -
5051 A3030305 Gasket-per Ft Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

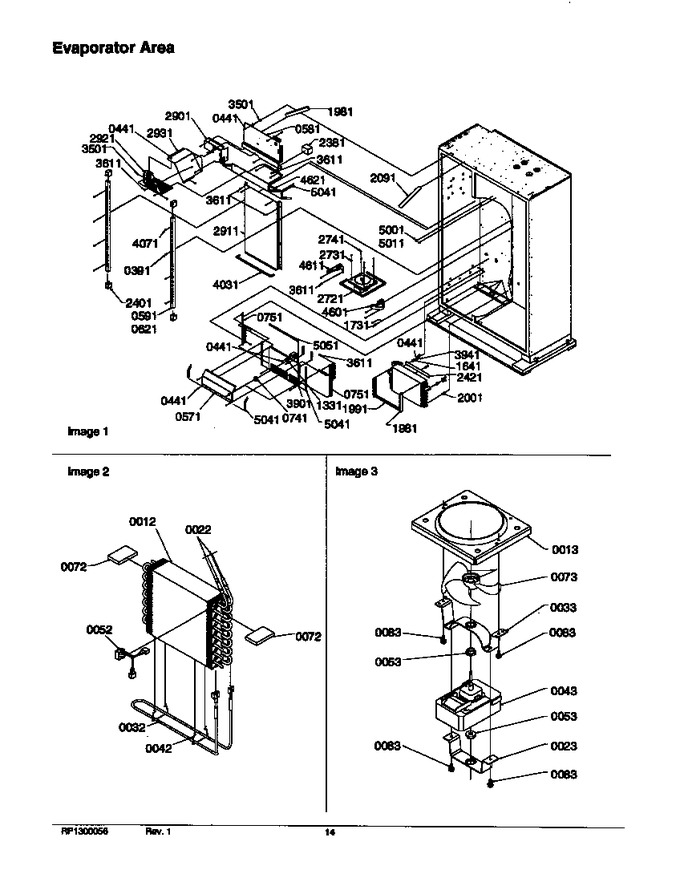

Diagram for S148DA03 (BOM: P1305601W)
