SELECT A DIAGRAM

01 - 1/4`` & 3/4`` Facade Kit


02 - Control Assy


03 - Evap Area


04 - Fz Door & Cavity Cover Assemblies


05 - Heater & Condensate Evaporation Kit


06 - Hinges, Fz Baskets And Accessories


07 - Ice Bucket Auger And Ice Maker Parts


08 - Ladders And Light Shields


09 - Ref Door Assy

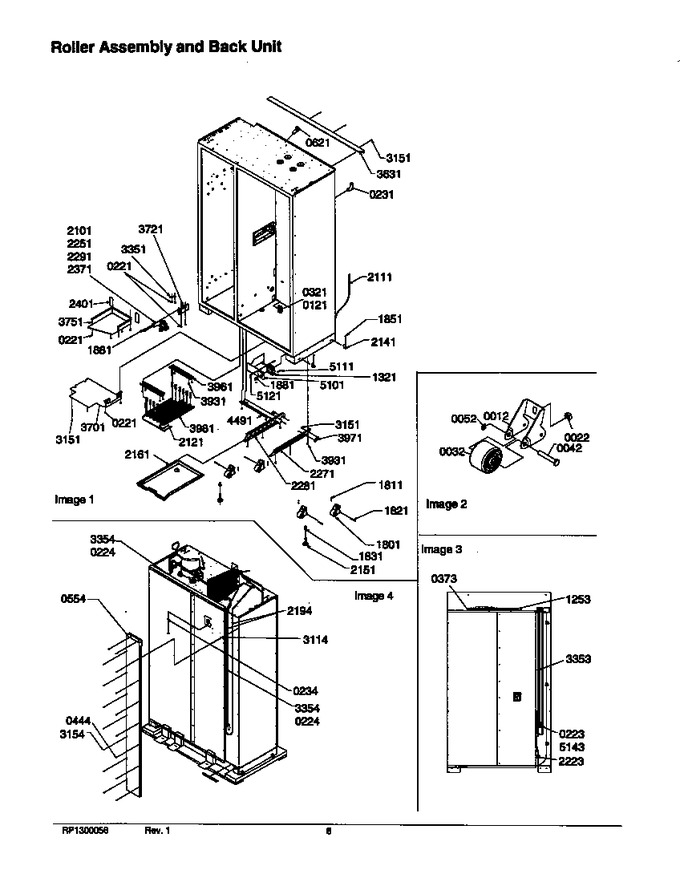

10 - Roller Assy And Back Unit


11 - Shelving And Crispers


12 - Top Hinges, Condenser & Compressor


13 - Upper Grille & Keyboard


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	12033501		Brkt-roller		Appelez-nous	-
22	M0286708		Nut, Speed				$ 47.85
32	12034201		Roller-cabinet		Appelez-nous	-
42	M1252901		Pin-pivot		Appelez-nous	-
52	M0273801		Ring-retaining		Appelez-nous	-
121	12199501		Block, Return Air		Appelez-nous	-
221	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
223	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
224	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
231	C8971903		Tunnel, Heat Exchanger		Appelez-nous	-
234	12115101		Clamp, Tube		Appelez-nous	-
321	12178101		Jumper, Heat Exch		Appelez-nous	-
373	A4554806		Snap Bushing		Appelez-nous	-
444	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
554	12187701		Cover-ht Ex		Appelez-nous	-
621	12023401		Assy, Fill Tube		Appelez-nous	-
1253	10916507		Cord, Power		Appelez-nous	-
1321	12075003		Motor, Ref Fan (d.c.)				$ 136.78
1801	12062101		Assy, Roller Brkt		Appelez-nous	-
1811	M1200006		Cotter Pin K		Appelez-nous	-
1821	M1200203		Pin-clevis		Appelez-nous	-
1831	M0295308		Nut, Rivet		Appelez-nous	-
1851	WP3400527		Screw   (Replaces: M0267153)				$ 8.07
1881	WP489128		Screw   (Replaces: M0220417)				$ 11.40
2101	12070802		Valve-water		Appelez-nous	-
2111	WPB5705307		Tubing Plastic 103``   (Replaces: B5705307)				$ 13.05
2121	12071201		Clip-drain Loop		Appelez-nous	-
2141	12071102		Brkt, Shipping		Appelez-nous	-
2151	12150601		Foot, Leveling		Appelez-nous	-
2161	12071302		Pan, Drain		Appelez-nous	-
2194	10851312		Insulation, Tubing		Appelez-nous	-
2223	M0104102		Clip, Cord				$ 8.10
2251	WP627018		Nut, Sleeve   (Replaces: M0753001)				$ 11.51
2271	12234701		Rail-pan		Appelez-nous	-
2281	12234702		Assy, Pan Rail (left)		Appelez-nous	-
2291	A1055101		Spring, Antikink		Appelez-nous	-
2371	M0753002		Nut, Sleeve		Appelez-nous	-
2401	A3189368		Gasket, Foam		Appelez-nous	-
3114	A3189371		Gasket-foam		Appelez-nous	-
3151	A4539601		Pop Rivet		Appelez-nous	-
3154	A4539601		Pop Rivet		Appelez-nous	-
3351	M0102303		Clamp		Appelez-nous	-
3353	M0102303		Clamp		Appelez-nous	-
3354	M0102303		Clamp		Appelez-nous	-
3631	12180503		Shield, Power Cord		Appelez-nous	-
3701	12285301		Cover, Wiring		Appelez-nous	-
3721	12279101		Brkt, Wtr Valve		Appelez-nous	-
3751	12201801		Pan, Wiring		Appelez-nous	-
3931	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 8.25
3961	12215001		Bracket, Serp Clip		Appelez-nous	-
3971	12143801		Angle, Drain Pan		Appelez-nous	-
3981	12197501		Serpentine, Drain Pan		Appelez-nous	-
4491	12349801		Trough-drain		Appelez-nous	-
5101	12349201		Brkt, Dc Fan		Appelez-nous	-
5111	5149-P		Screw,no.8-32 X 1-1/4 Fl Hd Scre		Appelez-nous	-
5121	WP488130		Nut-keps   (Replaces: M0280801)				$ 7.32
5143	M0102804		Clamp		Appelez-nous	-
NI	WPA3223101		Insert, Plastic Tube   (Replaces: A3223101)				$ 8.21
NI	A4554817		Bushing-snap		Appelez-nous	-
NI	WP4373559		Union K   (Replaces: B5706901)				$ 81.22
NI	12266001		Brkt, Tube Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
