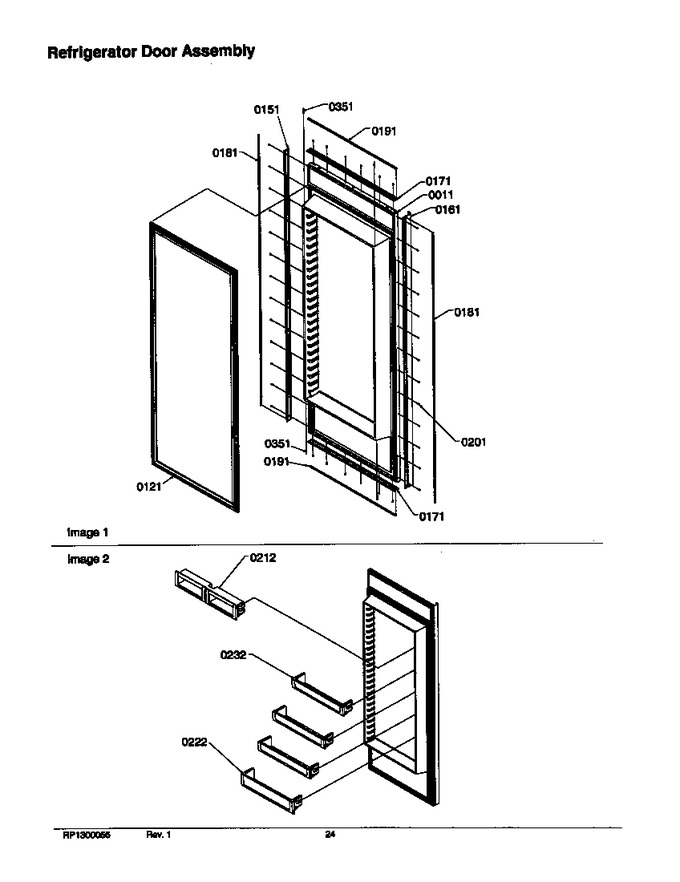

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12282701		Assy, Ref Dr (84`` Sxs)		Appelez-nous	-
121	10933003		Gasket-door				$ 105.82
151	12063504		Extrsn-door Frame		Appelez-nous	-
161	12063403		Extrsn-door Handle		Appelez-nous	-
171	12113601		Extrsn-door Frame		Appelez-nous	-
181	12063706		Insert, Ref/frz Side		Appelez-nous	-
191	12063708		Insert, Ref Top/bot		Appelez-nous	-
201	WP8281236		Screw (counter Sunk)   (Replaces: M0215704)				$ 8.16
212	12203601		Assy, Dairy Module		Appelez-nous	-
222	12192902		Assy, Ref Dr Shelf		Appelez-nous	-
232	12188002		Assy, Door Shelf		Appelez-nous	-
351	12128001		Plug-inner Door		Appelez-nous	-
