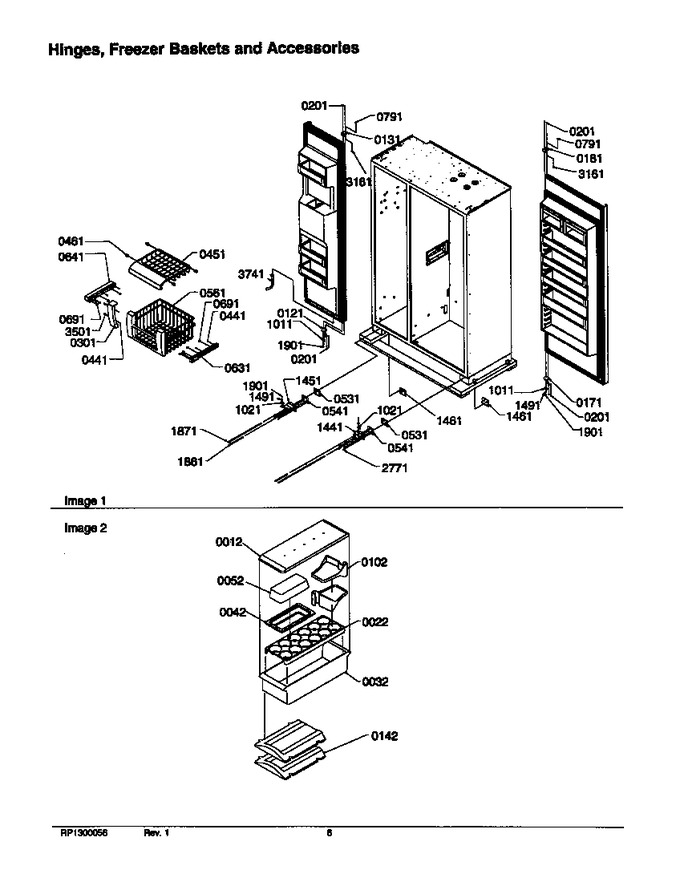

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 10436404 | Lid, Utility |
|
$ 60.85 | |||||
| 22 | 10436506 | Tray, Egg |
|
$ 8.28 | |||||
| 32 | 10423129 | Bin-utility |
|
- | |||||
| 42 | 12052701 | Dish, Butter |
|
- | |||||
| 52 | 12070901 | Cover-butter |
|
- | |||||
| 102 | 12104901 | Snugger-shelf |
|
- | |||||
| 121 | 12119502 | Hinge-tap L Lw |
|
- | |||||
| 131 | 12043404 | L Up Pivot Plt Ass`y (pin) |
|
- | |||||
| 142 | 12203901 | Module, Wine |
|
- | |||||
| 171 | 12119501 | Hinge-tap R Lw |
|
- | |||||
| 181 | 12043403 | R Up Pivot Plt Ass`y (pin) |
|
- | |||||
| 201 | W11573362 | Screw, T. F. (Replaces: M0226233) |
|
$ 14.72 | |||||
| 301 | 12221301 | Closeout-fz Side Dsp |
|
- | |||||
| 441 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 451 | 12339301 | Basket, Freezer |
|
- | |||||
| 461 | 12213701 | Cup-mounting |
|
- | |||||
| 531 | 12198501 | Shim-lower Hinge |
|
- | |||||
| 541 | 12198502 | Shim-lower Hinge |
|
- | |||||
| 561 | 12210901 | Assy, Frz Basket |
|
- | |||||
| 631 | 12336301 | Glide, R Frz |
|
- | |||||
| 641 | 12336201 | Glide, L Frz |
|
- | |||||
| 691 | 12064701 | Pad, Glide |
|
- | |||||
| 791 | 40370P01 | Nylon Flat Washer |
|
- | |||||
| 1011 | 12055602 | Closure-door |
|
- | |||||
| 1021 | 12055601 | Closure-door |
|
- | |||||
| 1441 | 12222201 | Assy, R Lw Hinge |
|
- | |||||
| 1451 | 12222202 | Assy, L Lw Hinge |
|
- | |||||
| 1461 | 12337901 | Plate, Hinge Tap |
|
- | |||||
| 1491 | M0272803 | Lock Washer |
|
- | |||||
| 1861 | M0204339 | Screw Bolt K |
|
- | |||||
| 1871 | 10093305 | Screw-mach |
|
- | |||||
| 1901 | M0202528 | Screw |
|
- | |||||
| 2771 | M0238734 | Screw, 10-32 X 1.250`` Pan Hd |
|
- | |||||
| 3161 | M0220928 | Screw, Shoulder |
|
- | |||||
| 3501 | M0581001 | Grommet, Screw |
|
- | |||||
| 3741 | 12266101 | Tube, Wiring |
|
- | |||||
| NI | 12119607 | Shim-door Brkt |
|
- | |||||
| NI | 12332310 | Grille, Toe (e-ct) |
|
- | |||||
| NI | WP98008545 | Screw, Sm (blk) (Replaces: M0210443) |
|
$ 18.60 | |||||
| NI | M0270510 | Washer |
|
- | |||||
| NI | M0223509 | Screw-lag |
|
- | |||||
| NI | W11233072 | Screw (Replaces: M0214931) |
|
Immediately | $ 14.72 | ||||
| NI | 12197902 | Toe Grille-e Ct |
|
- | |||||
| NI | 12119608 | Shim, Door Brkt |
|
- | |||||
| NI | WP90767 | Screw, Sm (Replaces: M0224416) |
|
Immediately | $ 8.25 | ||||
| NI | B5720304 | Clip |
|
- | |||||
| NI | 12098010 | Brkt, Dec. Panel |
|
- | |||||
| NI | 12098003 | Brkt-dec Panel |
|
- | |||||
| NI | 12119602 | Shim-door Brkt |
|
- | |||||
| NI | 12119603 | Shim-door Brkt |
|
- | |||||
| NI | M0223729 | Screw |
|
- | |||||
| NI | 12098009 | Brkt-dec Panel |
|
- | |||||
| NI | 12098008 | Brkt-dec Panel |
|
- |
