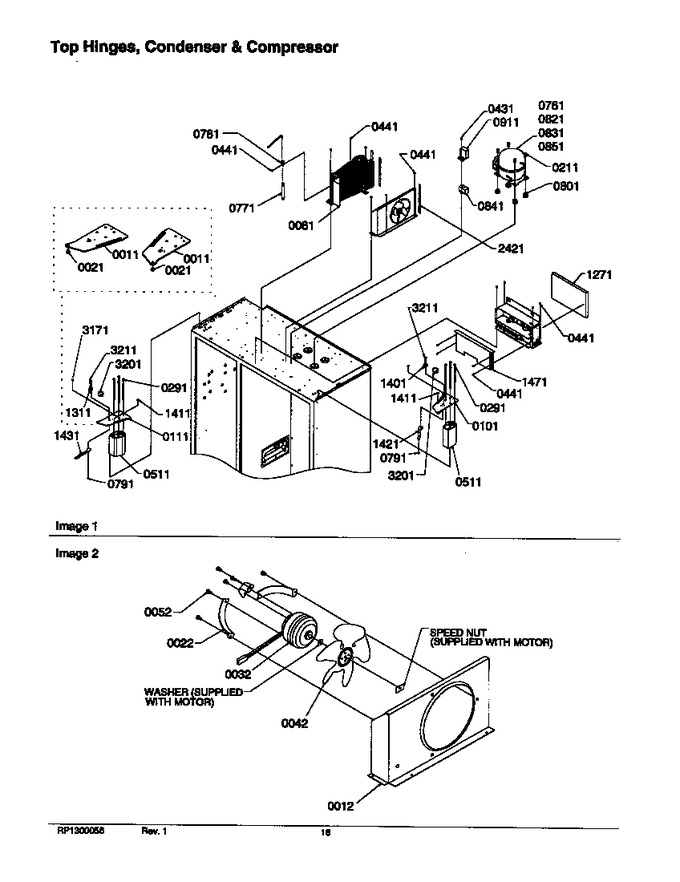

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 12068003 | Plate,top Hinge |
|
- | |||||
| 12 | 12090701 | Shroud, Cond Fan |
|
- | |||||
| 21 | 12042902 | Bushing, Hinge |
|
- | |||||
| 22 | 10582501 | Bracket, Cond. Motor |
|
- | |||||
| 32 | 10522103 | Motor-psc----na |
|
- | |||||
| 42 | B5742603 | Blade, Fan |
|
- | |||||
| 52 | M0223816 | Screw, Tr |
|
$ 5.27 | |||||
| 61 | 12061902 | Ass`y, Cond-e Ct |
|
- | |||||
| 101 | 12067806 | Assy, Top Hinge (right) |
|
- | |||||
| 111 | 12067805 | Assy, Top Hinge (left) |
|
- | |||||
| 211 | M0221523 | Screw, Shldr |
|
- | |||||
| 291 | M0206313 | Screw, Mach |
|
- | |||||
| 431 | M0238921 | Screw, Sm |
|
- | |||||
| 441 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 511 | 12067901 | Extrsn-top Hinge |
|
- | |||||
| 761 | 12049701 | Compressor |
|
- | |||||
| 771 | WPB2150504 | Drier (Replaces: B2150504) |
|
$ 136.98 | |||||
| 781 | 10547001 | Clip, Drier |
|
- | |||||
| 791 | 40370P01 | Nylon Flat Washer |
|
- | |||||
| 801 | WPW10169124 | Grommet, Compressor (Replaces: 10835901) |
|
$ 7.55 | |||||
| 821 | 10377015 | Overload |
|
- | |||||
| 831 | WP10097202 | Ptc Relay (Replaces: 10097202) |
|
$ 124.93 | |||||
| 841 | WP65889-4 | Capacitor (Replaces: C8931604) |
|
Immediately | $ 69.00 | ||||
| 851 | 10757301 | Cover, Terminal |
|
- | |||||
| 911 | 10266402 | Shield, Capacitor |
|
- | |||||
| 1271 | 12074703 | Insul, Cont Box |
|
- | |||||
| 1311 | 12074905 | Switch-light |
|
- | |||||
| 1401 | 12074904 | Switch, Light |
|
- | |||||
| 1411 | 12348701 | Bumper, Door Stop |
|
- | |||||
| 1421 | 12140602 | Arm, Door Stop |
|
- | |||||
| 1431 | 12140601 | Arm, Door Stop |
|
- | |||||
| 1471 | 12091001 | Front, Cont Panel |
|
- | |||||
| 2421 | A3189370 | Gasket-foam |
|
- | |||||
| 3171 | M0220942 | Screw, Shoulder |
|
- | |||||
| 3201 | 12140701 | Cover, Switch |
|
- | |||||
| 3211 | M0234005 | Screw |
|
- | |||||
| NI | W11227370 | Screw (Replaces: M0234030) |
|
Immediately | $ 14.91 | ||||
| NI | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 | |||||
| NI | M0103904 | Clamp, Speed |
|
- | |||||
| NI | M0322202 | Tie Wire |
|
- | |||||
| NI | 12992301 | Screw, Tf (Replaces: M0231604) |
|
$ 7.32 | |||||
| NI | 12235601 | Harness-mc |
|
- | |||||
| NI | WPW10339879 | Tie (Replaces: M0321202) |
|
$ 8.30 |
