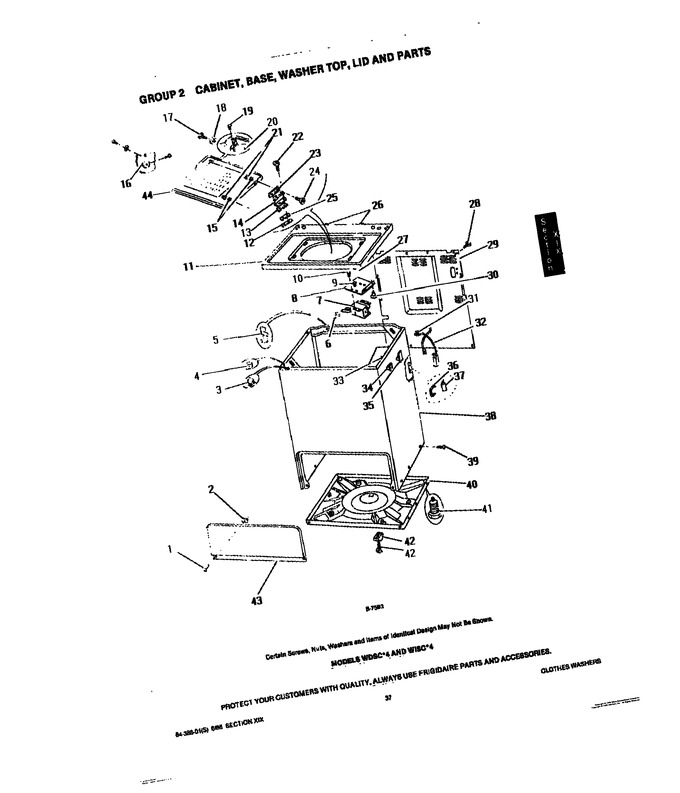

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8006545		Screws (2)		Appelez-nous	-
2	8002388		Nuts (2)		Appelez-nous	-
3	8001597		Clip-spring (2)		Appelez-nous	-
4	8001596		Bumpers (4)		Appelez-nous	-
5	8002384		Hinges-top (2)		Appelez-nous	-
6	8001622		Screws (2)		Appelez-nous	-
7	8015518		Lock, Lid		Appelez-nous	-
8	8015528		Bracket		Appelez-nous	-
9	8001596		Bumpers (2)		Appelez-nous	-
10	8006547		Screws (2)		Appelez-nous	-
11	8015523		Top, Washer, Almond		Appelez-nous	-
11	8015521		Top, Washer, White		Appelez-nous	-
12	8002400		Nuts (2)		Appelez-nous	-
13	8002413		Gaskets (2)		Appelez-nous	-
14	8002412		Hinges (2)		Appelez-nous	-
15	8002414		Washers (4)		Appelez-nous	-
16	8015519		Bracket, Lid		Appelez-nous	-
17	8002407		Screws (3)		Appelez-nous	-
18	8002408		Washer (4)		Appelez-nous	-
19	8015520		Bumpers-lid (2)		Appelez-nous	-
20	8002409		Strike		Appelez-nous	-
21	8002415		Nuts (4)		Appelez-nous	-
22	8002416		Screws (4)		Appelez-nous	-
23	8002411		Gaskets (2)		Appelez-nous	-
24	8002416		Screws (4)		Appelez-nous	-
25	8015527		Spacer, Lid Hinge (2)		Appelez-nous	-
26	8006557		Retainers (2)		Appelez-nous	-
27	8002422		Nut		Appelez-nous	-
28	8001559		Screws (16)		Appelez-nous	-
29	8011286		Panel-back		Appelez-nous	-
30	8002420		Rivets (2)		Appelez-nous	-
31	8004647		Bushing, Electrical Service Cord		Appelez-nous	-
32	8015515		Cord, Electrical Service		Appelez-nous	-
33	8004099		Clips (2)		Appelez-nous	-
34	8011304		Clip Short		Appelez-nous	-
35	8011305		Clip Long		Appelez-nous	-
36	8014902		Bracket, Capacitor		Appelez-nous	-
37	8014903		Capacitor		Appelez-nous	-
38	8015512		Shell, Cabinet, White		Appelez-nous	-
38	8015514		Shell, Cabinet, Almond		Appelez-nous	-
39	8001613		Screws (6)		Appelez-nous	-
40	8011290		Base - Washer		Appelez-nous	-
41	8950088		Foot (4)		Appelez-nous	-
42	8004066		Block Shipping (shipping Screw And Block)		Appelez-nous	-
43	8015494		Panel-access, White		Appelez-nous	-
43	8011263		Panel-access, Almond		Appelez-nous	-
44	8015524		Lid Washer, White		Appelez-nous	-
44	8015526		Lid, Washer, Almond		Appelez-nous	-
