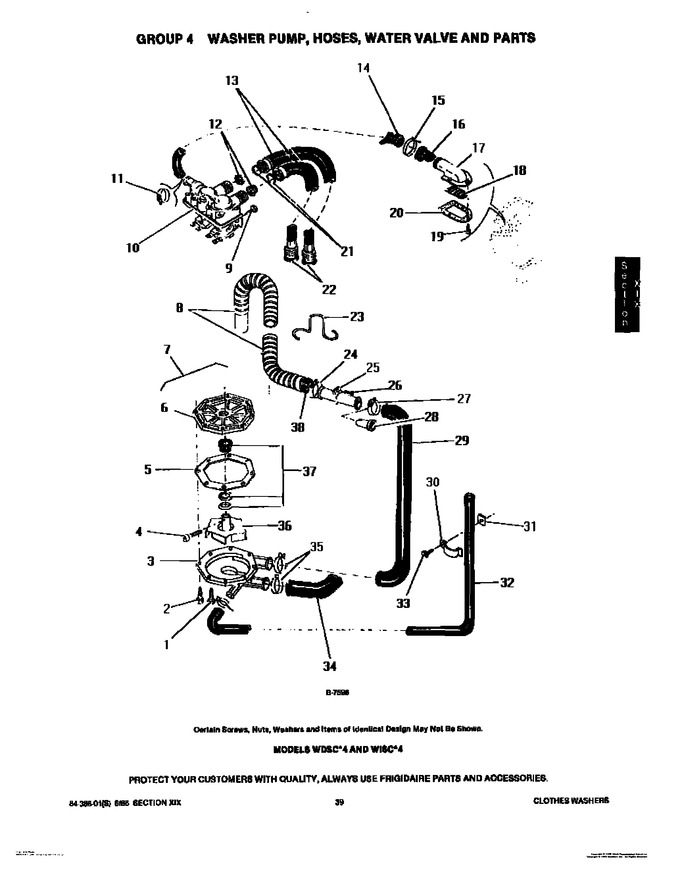

07 - Washer Pump, Hoses & Water Valve


08 - Washer Motor, Pulleys, Belt & Sprin


09 - Washer Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8002389		Screws (4)		Appelez-nous	-
2	8002390		Screws (4)		Appelez-nous	-
3	8002391		Housing, Pump Lower		Appelez-nous	-
4	8002392		Screw		Appelez-nous	-
5	8002396		Gasket		Appelez-nous	-
6	8002397		Cover, Pump		Appelez-nous	-
7	8015497		Pump, Complete		Appelez-nous	-
8	8006675		Hose-drain Includes Bushing		Appelez-nous	-
9	8015533		Screws (2)		Appelez-nous	-
10	8015532		Valve-water		Appelez-nous	-
11	8006572		Clamp		Appelez-nous	-
12	8002439		Screen-inlet (2)		Appelez-nous	-
13	6561384		Hose-water Fill Hot And Cold		Appelez-nous	-
14	8008471		Hose, Valve To Inlet		Appelez-nous	-
15	8007731		Clamp		Appelez-nous	-
16	8011283		Valve-antisyphon		Appelez-nous	-
17	8006569		Nozzle - Assembly		Appelez-nous	-
18	8006682		Screen		Appelez-nous	-
19	8002407		Screws (3)		Appelez-nous	-
20	8006683		Gasket		Appelez-nous	-
21	8015499		Washers (2)		Appelez-nous	-
22	8015499		Washers (2)		Appelez-nous	-
23	8002362		Retainer		Appelez-nous	-
24	8002361		Clamp		Appelez-nous	-
25	8015078		Coupling		Appelez-nous	-
26	8002359		Screw		Appelez-nous	-
27	8004057		Clamp		Appelez-nous	-
28	8014555		Valve-check-drain Hose		Appelez-nous	-
29	8015531		Hose, Pump To Coupling		Appelez-nous	-
30	8002356		Clamp		Appelez-nous	-
31	8002355		Nut		Appelez-nous	-
32	8002353		Hose-pump To Lint Filter		Appelez-nous	-
33	8015500		Screw		Appelez-nous	-
34	8002364		Hose-trap To Pump		Appelez-nous	-
35	8014914		Clamps (2)		Appelez-nous	-
36	8950055		Impeller Kit (includes Impeller, Seal, Gasket And Screw)		Appelez-nous	-
