SELECT A DIAGRAM

01 - Cover


04 - Console


05 - Cabinet, Base, Washer Top & Lid


06 - Outer/inner Tubs, Sub Top & Agitato


07 - Washer Pump, Hoses & Water Valve


08 - Washer Motor, Pulleys, Belt & Sprin

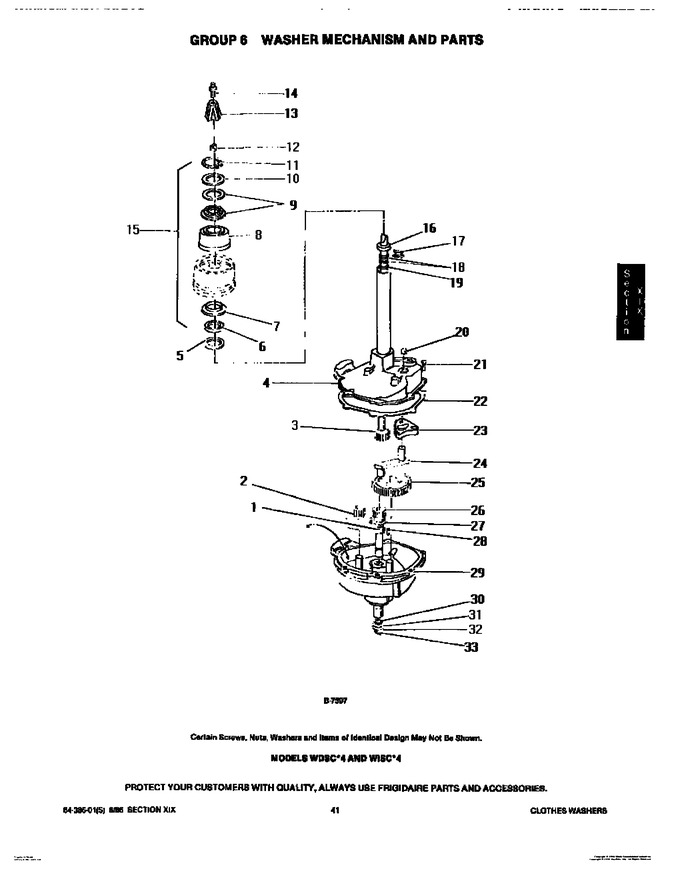

09 - Washer Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8002817		Spring		Appelez-nous	-
2	8002816		Gear		Appelez-nous	-
3	8015507		Shaft, Agitate		Appelez-nous	-
4	8015535		Housing		Appelez-nous	-
5	8002401		Washer-thrust		Appelez-nous	-
6	8002478		Washer		Appelez-nous	-
7	8002479		Slinger		Appelez-nous	-
8	8004067		Seal		Appelez-nous	-
9	8004072		Seal		Appelez-nous	-
10	8002480		Spacer		Appelez-nous	-
11	8002483		Ring-snap		Appelez-nous	-
12	8002488		Shim		Appelez-nous	-
13	8014904		Hub, Drive		Appelez-nous	-
14	8002491		Screw		Appelez-nous	-
15	8950056		Seal-kit		Appelez-nous	-
16	8011270		Seal		Appelez-nous	-
17	8002474		Ring-snap		Appelez-nous	-
18	8002485		Spacers		Appelez-nous	-
19	8002481		Washer-thrust		Appelez-nous	-
20	8002803		Plug		Appelez-nous	-
21	8011267		Screws (6)		Appelez-nous	-
22	8002805		Gasket		Appelez-nous	-
23	8011268		Gear		Appelez-nous	-
24	8002809		Rod		Appelez-nous	-
25	8015496		Gear		Appelez-nous	-
26	8014905		Shaft		Appelez-nous	-
27	8002476		Washer-thrust		Appelez-nous	-
28	8002813		Pins (2)		Appelez-nous	-
29	8002815		Housing (use 8002818 Oil (1 Qt.) Inside Housing)		Appelez-nous	-
30	8002477		Seal		Appelez-nous	-
31	8002476		Washer-thrust		Appelez-nous	-
32	8002475		Washer		Appelez-nous	-
33	8002474		Ring-snap		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
