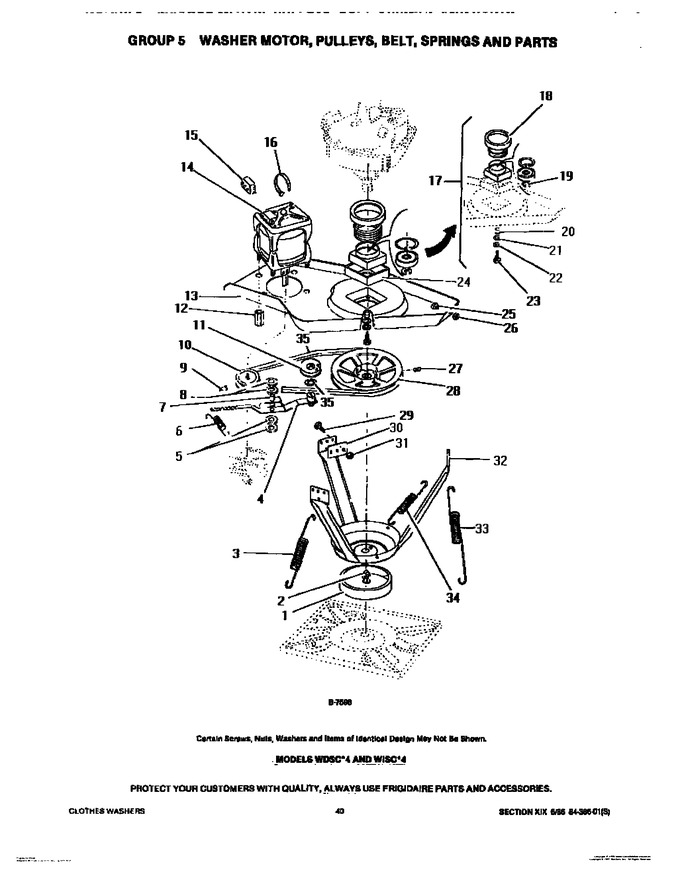

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8002385		Snubber Ring		Appelez-nous	-
2	8002382		Nut		Appelez-nous	-
3	8011261		Spring Vertical (short)		Appelez-nous	-
4	8004078		Arm-idler		Appelez-nous	-
5	8002457		Washers (2)		Appelez-nous	-
6	8002456		Spring-idler		Appelez-nous	-
7	8014925		Spacer		Appelez-nous	-
8	8002457		Washers (2)		Appelez-nous	-
9	8002453		Screw (set)		Appelez-nous	-
10	8006686		Pulley, Motor		Appelez-nous	-
11	8011271		Pulley		Appelez-nous	-
12	8014925		Spacers (3)		Appelez-nous	-
13	8002472		Plate-support		Appelez-nous	-
14	8014901		Motor-washer Drive, Two Speed Ge		Appelez-nous	-
14	8015502		Motor, Washer Drive, Single Speed, Ge		Appelez-nous	-
15	8014888		Switch, Motor Start		Appelez-nous	-
16	8002819		Retainer (2)		Appelez-nous	-
17	8950058		Bearing Kit		Appelez-nous	-
18	8011269		Sleeve		Appelez-nous	-
19	8015536		Ring, Snap		Appelez-nous	-
20	8002466		Sleeve (2)		Appelez-nous	-
21	8002467		Spacers (2)		Appelez-nous	-
22	8002468		Washers (2)		Appelez-nous	-
23	8006579		Screws (2)		Appelez-nous	-
24	8002473		Cushion		Appelez-nous	-
25	8002471		Screws (3)		Appelez-nous	-
26	8002470		Nuts (3)		Appelez-nous	-
27	8002461		Screw (set)		Appelez-nous	-
28	8014923		Pulley		Appelez-nous	-
29	8002378		Screws (6)		Appelez-nous	-
30	8002379		Plate (3)		Appelez-nous	-
31	8002377		Nuts (6)		Appelez-nous	-
32	8011310		Support		Appelez-nous	-
33	8011317		Spring-vertical (2) Long		Appelez-nous	-
34	8011311		Spring Horizontal (3)		Appelez-nous	-
35	8015501		Washer, Spring		Appelez-nous	-
