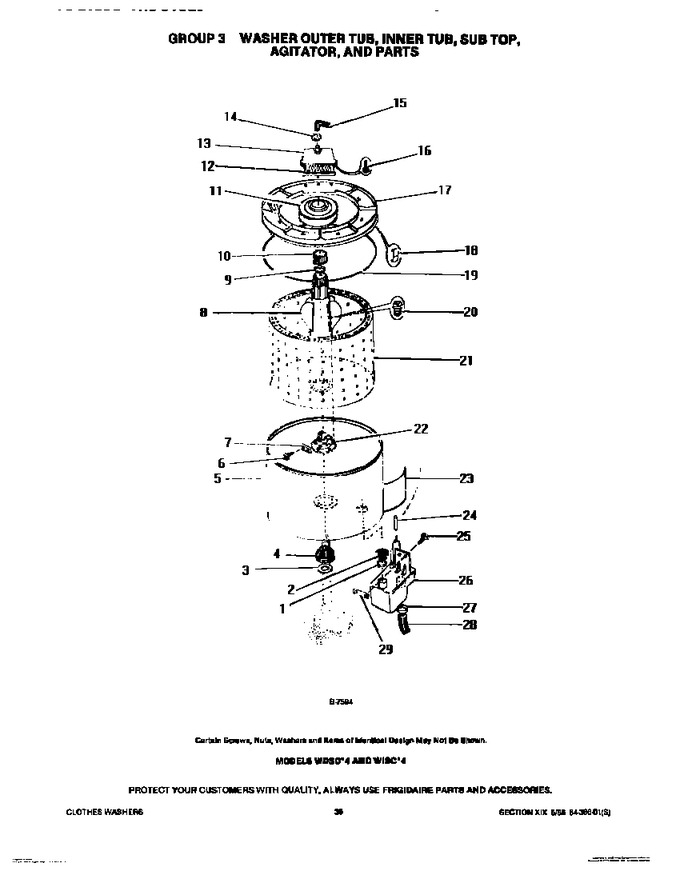

06 - Outer/inner Tubs, Sub Top & Agitato


07 - Washer Pump, Hoses & Water Valve


08 - Washer Motor, Pulleys, Belt & Sprin


09 - Washer Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8002367		Clamp		Appelez-nous	-
2	8006674		Grommet		Appelez-nous	-
3	8002401		Washer-thrust		Appelez-nous	-
4	8011284		Bearing-tub Support		Appelez-nous	-
4	8950057		Oversize Bearing Kit (includes Bearing, Sleeve, Epoxy And Seal Components)		Appelez-nous	-
5	8002371		Tub-outer		Appelez-nous	-
6	8014909		Screws (2)		Appelez-nous	-
7	8014907		Plate, Lock		Appelez-nous	-
8	8002424		Agitator		Appelez-nous	-
9	8002427		Washer		Appelez-nous	-
10	8006677		Cap Includes Washer		Appelez-nous	-
11	8950170		Dispenser-fabric Softener (optional)		Appelez-nous	-
12	8002435		Filter-lint		Appelez-nous	-
13	8011313		Housing		Appelez-nous	-
14	8005517		Clamp, Hose		Appelez-nous	-
15	8002353		Hose-pump To Lint Filter		Appelez-nous	-
16	8002432		Screws (5)		Appelez-nous	-
17	8011314		Sub, Top				$ 10.28
18	8002429		Clips (10)		Appelez-nous	-
19	8002430		Seal		Appelez-nous	-
20	8015509		Screws (5)		Appelez-nous	-
21	8015495		Basket, Inner Wash		Appelez-nous	-
22	8014908		Support-tub		Appelez-nous	-
23	8011275		Shield		Appelez-nous	-
24	8015491		Hose, Pressure Fill		Appelez-nous	-
25	8011280		Screws (2)		Appelez-nous	-
26	8002366		Trap - Button/drain		Appelez-nous	-
27	8014913		Clamp		Appelez-nous	-
28	8002364		Hose-trap To Pump		Appelez-nous	-
29	8011303		Nut		Appelez-nous	-
