SELECT A DIAGRAM

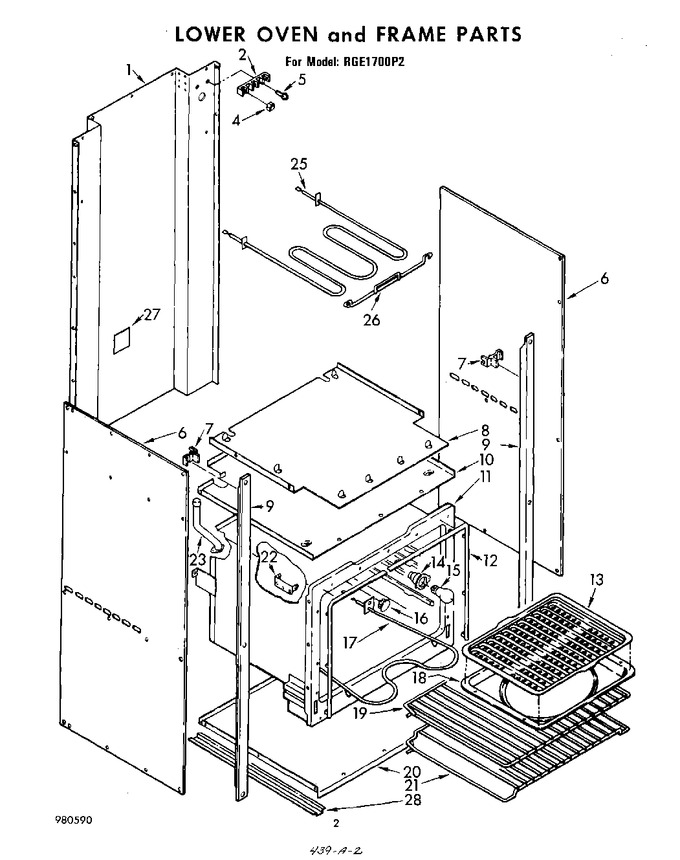

02 - Lower Oven And Frame , Literature A


03 - Control Panel And Fan Assembly


04 - Upper Oven And Latch


05 - Top Oven Door


06 - Bottom Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	681151		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
1	868867		Casing, Back		Appelez-nous	-
2	834649		Screw, 10-24 X 7/8 (2)		Appelez-nous	-
2	WP8203546		Terminal Block, Main   (Replaces: 241212)			Immediately	$ 27.12
4	487836		Nut, 10-32 (3)		Appelez-nous	-
5	680363		Screw,10-24 X 1/2		Appelez-nous	-
6	834649		Screw, 10-24 X 7/8 (2)		Appelez-nous	-
6	681151		Screw, 10-24 X 1/2 (45)		Appelez-nous	-
6	868098		Casing, Side (2)		Appelez-nous	-
7	866382		Spacer Trim (6)		Appelez-nous	-
8	866379		Retainer, Insulation		Appelez-nous	-
8	681151		Screw, 10-24 X 1/2 (10)		Appelez-nous	-
9	866434		Trim, Oven Front (2)		Appelez-nous	-
10	866092		Partition, Oven		Appelez-nous	-
10	681151		Screw, 10-24 X 1/2 (3)		Appelez-nous	-
11	868039		Oven, Lower (continuous Clean)		Appelez-nous	-
12	877582		Gasket, Oven Door (with Clips) (alternate)		Appelez-nous	-
12	868003		Gasket, Oven Door (with Clips) (alternate)		Appelez-nous	-
13	4396923		Grille, Broiler Pan   (Replaces: 868504)			Immediately	$ 54.64
14	834649		Screw 10-32 X 7/8 (2)		Appelez-nous	-
14	241422		Washer, Asbestos (2)		Appelez-nous	-
14	866133		Socket, Light		Appelez-nous	-
15	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 17.51
16	142017		Plug, Button (2)		Appelez-nous	-
17	EB770		Unit, Bake (alternate)   (Replaces: 866375)			Immediately	$ 44.96
17	834649		Unit, Bake (screw, 10-24 X 7/8 (2))		Appelez-nous	-
17	WP866375		Unit, Bake (alternate)   (Replaces: 868969)				$ 120.84
18	868505		Pan, Broiler		Appelez-nous	-
19	834731		Rack, Oven		Appelez-nous	-
20	868096		Casing, Bottom		Appelez-nous	-
20	681151		Screw, 10-24 X 1/2 (16)		Appelez-nous	-
21	834732		Rack, Oven (offset)		Appelez-nous	-
22	486146		Screw, 10-24 X 1/2 (1)				$ 12.83
22	865959		Bracket, Thermostat Bulb		Appelez-nous	-
23	486146		Screw, 10-24 X1/2 (2)				$ 12.83
23	868032		Vent Tube		Appelez-nous	-
25	486146		Screw, 10-32 X 1/2				$ 12.83
25	865638		Unit, Broil		Appelez-nous	-
26	866429		Hanger, Broil Unit		Appelez-nous	-
26	486146		Screw, 10-24 X1/2 (2)				$ 12.83
27	868868		Plate, Conduit		Appelez-nous	-
27	834649		Screw, 10-24 X 7/8		Appelez-nous	-
28	980590		List, Repair Parts		Appelez-nous	-
28	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 54.98
28	261582		Grease		Appelez-nous	-
28	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 73.65
28	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
28	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
28	866338		Installation Instructions		Appelez-nous	-
28	868846		Use & Care Guide		Appelez-nous	-
28	308500		Book, Cooking Guide		Appelez-nous	-
28	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
28	868977		Support, Bottom Casing (2)		Appelez-nous	-
28	681151		Screw, 10-24 X 1/2 (8)		Appelez-nous	-
28	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
28	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
28	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
28	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
28	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
28	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
28	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
28	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
28	242831		Wire (14 Ga. 200 C Red)				$ 342.23
28	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
28	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
28	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
28	254323		Touch-up, Oven (self-clean)		Appelez-nous	-
28	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 46.58
28	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 54.98

    View Diagram in Separate Window       Print Part List
