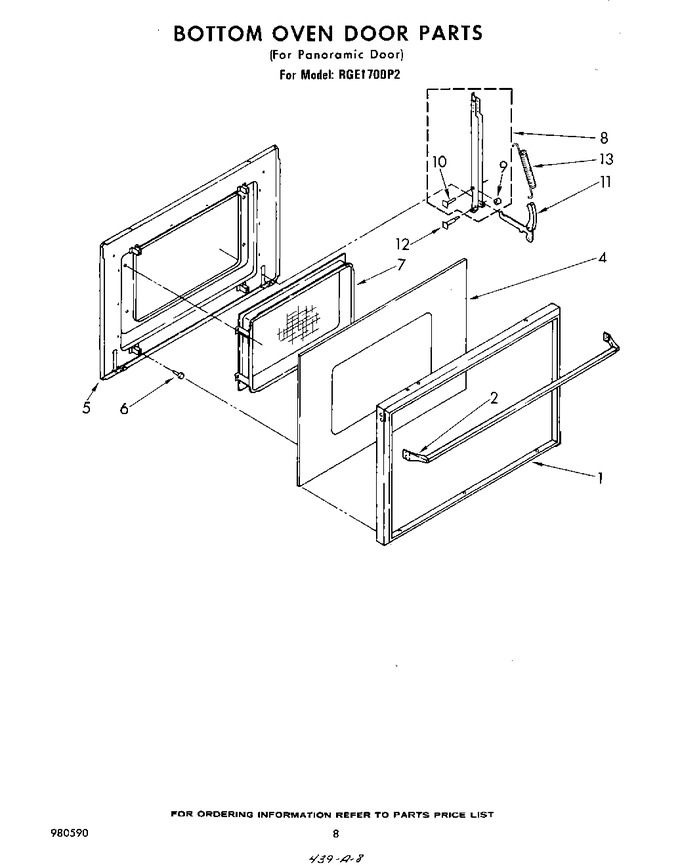

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	868430		Screw, 10-24 X 1/2 (5)		Appelez-nous	-
1	868552		Frame, Oven Door		Appelez-nous	-
2	271482		Nut, 6-32 (4)		Appelez-nous	-
2	866415		Handle		Appelez-nous	-
2	866155		Screw, 6-32 X 3/8 (4)		Appelez-nous	-
4	868223		Glass, Outer		Appelez-nous	-
5	241421		Washer (4)		Appelez-nous	-
5	865884		Screw, 10-24 X 3/4		Appelez-nous	-
5	877607		Liner, Oven Door		Appelez-nous	-
6	866444		Bumper (4)		Appelez-nous	-
7	868644		Window		Appelez-nous	-
8	866426		Channel Assembly		Appelez-nous	-
8	247326		Screw, 10-24 X 5/8 (4)		Appelez-nous	-
8	868430		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
8	241422		Washer (2)		Appelez-nous	-
9	834471		Roller, Door Stop		Appelez-nous	-
10	241423		Rivet		Appelez-nous	-
10	46363		Nut, Speed		Appelez-nous	-
11	241313		Arm Assembly		Appelez-nous	-
12	241334		Pin, Hinge		Appelez-nous	-
13	241314		Spring, Door		Appelez-nous	-
