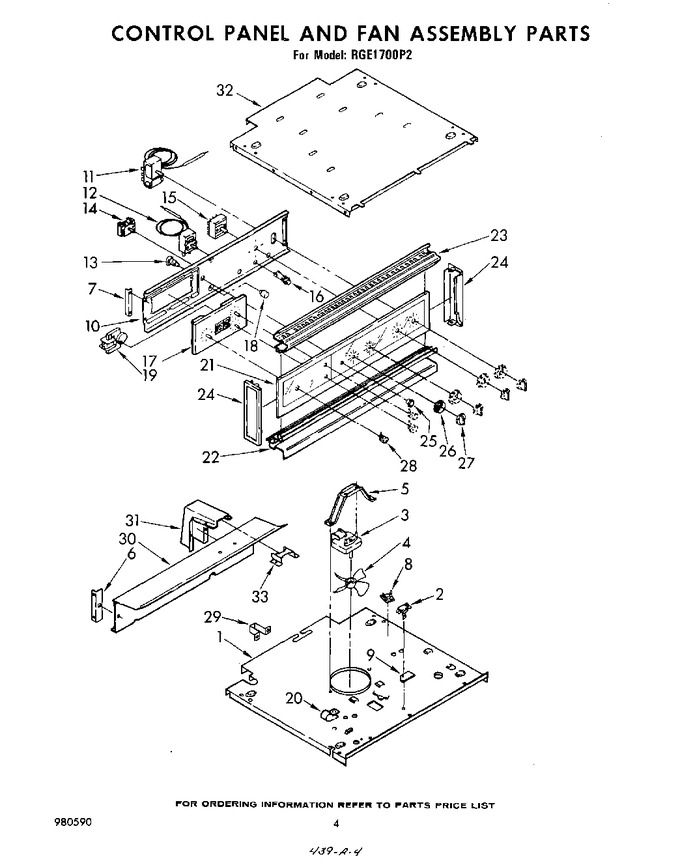

03 - Control Panel And Fan Assembly


04 - Upper Oven And Latch


05 - Top Oven Door


06 - Bottom Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	868525		Casing, Fan		Appelez-nous	-
1	681151		Screw, 10-24 X 1/2 (13)		Appelez-nous	-
2	868527		Switch, Limit		Appelez-nous	-
2	834852		Screw, 6-20 X 1-1/4 (2)		Appelez-nous	-
3	271482		Motor, Fan (nut, 6/32 (2))		Appelez-nous	-
3	866390		Motor, Fan (alternate)		Appelez-nous	-
3	877516		Motor, Fan (alternate)		Appelez-nous	-
4	866391		Fan Blade (alternate)		Appelez-nous	-
4	866392		Fan Blade (clip, Retainer)		Appelez-nous	-
4	877517		Fan Blade (alternate)		Appelez-nous	-
5	866393		Bracket, Fan Motor		Appelez-nous	-
5	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
6	866394		Bracket, Housing (2)		Appelez-nous	-
6	681151		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
7	681151		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
7	866395		Support, Control Bracket (2)		Appelez-nous	-
8	486608		Washer, Flat		Appelez-nous	-
8	WP486754		Screw, 6-32 X 5/16 (2)   (Replaces: 680406)				$ 7.21
8	279080		Thermal, Protector   (Replaces: 866396)				$ 94.44
9	834852		Screw, 6-20 X 1-1/8		Appelez-nous	-
9	868528		Insulator, Switch		Appelez-nous	-
10	868402		Panel, Control		Appelez-nous	-
10	681151		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
11	868954		Thermostat, Upper Oven		Appelez-nous	-
11	486525		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
12	868404		Thermostat, Lower Oven		Appelez-nous	-
12	487428		Screw, 6-32 X 3/16 (2)		Appelez-nous	-
13	98754		Nut, 3/8-27 (2)		Appelez-nous	-
13	866138		Switch, Push (oven Light)		Appelez-nous	-
14	486525		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
14	866438		Switch, Lower Oven Selector		Appelez-nous	-
15	877518		Switch, Selector (bake/clean)		Appelez-nous	-
15	486525		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
16	868433		Light, Pilot (clean/lock) (2)		Appelez-nous	-
16	868172		Light, Pilot (oven) (2)		Appelez-nous	-
17	877519		Timer, Digital (includes Illus. 19 & 28)		Appelez-nous	-
17	487836		Nut, 10-32 (2)		Appelez-nous	-
18	834956		Bumper (2)		Appelez-nous	-
19	866403		Motor, Timer		Appelez-nous	-
20	865797		Clamp		Appelez-nous	-
20	273225		Screw, 8-32 X 5/16		Appelez-nous	-
21	868864		Glass, Control Panel		Appelez-nous	-
21	866454		Tape, Foam		Appelez-nous	-
22	868531		Base, Control Panel		Appelez-nous	-
22	868430		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
23	868221		Top, Control Panel		Appelez-nous	-
23	595119		Screw, 10-24 X 5/8 (5)		Appelez-nous	-
24	486978		Screw, 8-32 X 3/8 (2)		Appelez-nous	-
24	866408		End Cap (r.h.)		Appelez-nous	-
24	866409		End Cap (l.h.)		Appelez-nous	-
25	866053		Bezel, Light Switch		Appelez-nous	-
26	866101		Bezel, Knob (4)		Appelez-nous	-
27	866098		Knob, Control (4)		Appelez-nous	-
28	241383		Knob, Timer (3)		Appelez-nous	-
29	486608		Washer, Flat		Appelez-nous	-
29	868798		Spacer, Fan Casing		Appelez-nous	-
29	681151		Screw, 10-24 X 1/2		Appelez-nous	-
30	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
30	866411		Housing, Control		Appelez-nous	-
31	681151		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
31	866412		Duct, Oven Vent		Appelez-nous	-
32	868102		Top, Casing		Appelez-nous	-
32	681151		Screw, 10-24 X 1/2 (15)		Appelez-nous	-
33	681151		Screw, 10-24 X 1/2		Appelez-nous	-
33	868222		Extension, Vent		Appelez-nous	-
