SELECT A DIAGRAM

02 - Lower Oven And Frame , Literature A


03 - Control Panel And Fan Assembly


04 - Upper Oven And Latch


05 - Top Oven Door


06 - Bottom Oven Door

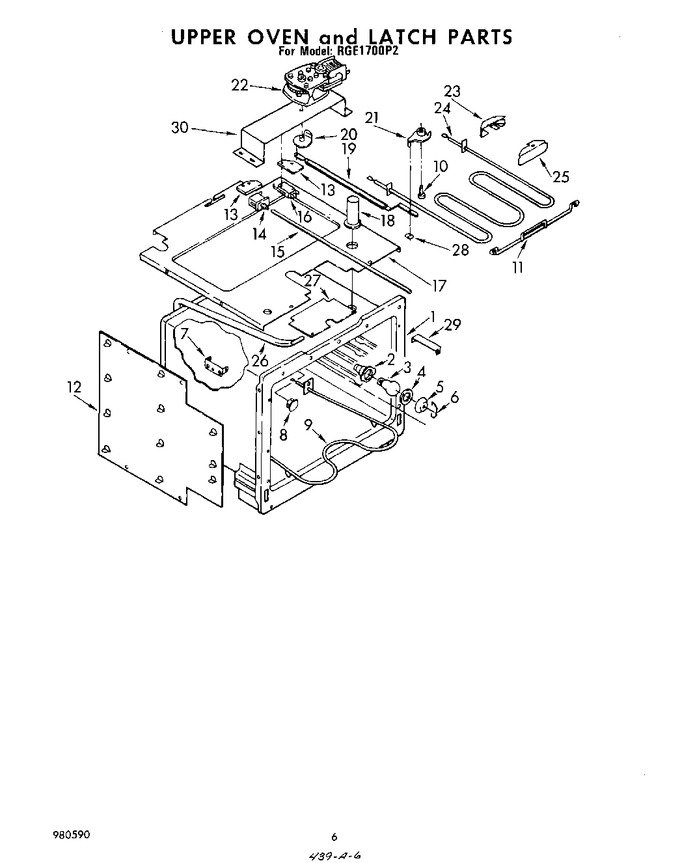

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	868510		Oven, Upper (self Clean)		Appelez-nous	-
2	834649		Screw 10-32 X 7/8 (2)		Appelez-nous	-
2	241422		Washer, Asbestos (2)		Appelez-nous	-
2	866133		Socket, Light		Appelez-nous	-
3	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 17.51
4	241609		Gasket, Cover		Appelez-nous	-
5	241592		Cover, Light		Appelez-nous	-
6	866134		Retainer, Cover		Appelez-nous	-
7	486146		Screw, 10-24 X 1/2				$ 12.83
7	865959		Bracket, Thermostat Bulb		Appelez-nous	-
8	142017		Plug, Button (2)		Appelez-nous	-
9	834649		Unit, Bake (screw, 10-24 X 7/8)		Appelez-nous	-
9	EB770		Unit, Bake (alternate)   (Replaces: 866375)			Immediately	$ 44.96
9	WP866375		Unit, Bake (alternate)   (Replaces: 868969)				$ 120.84
10	241564		Axle, Latch		Appelez-nous	-
10	256158		Pushnut, 1/4		Appelez-nous	-
11	866429		Hanger, Broil Unit		Appelez-nous	-
11	486146		Screw, 10-24 X1/2 (2)				$ 12.83
12	866376		Retainer, Insulation (2)		Appelez-nous	-
13	834905		Insulator, Limit Switch		Appelez-nous	-
14	834903		Switch Limit (upper) (screw, 4-40 X 1-1/4 (2))		Appelez-nous	-
14	868280		Switch Limit (upper) (alternate)		Appelez-nous	-
14	868988		Switch Limit (upper) (alternate)		Appelez-nous	-
14	868987		Switch Limit (upper) (alternate)		Appelez-nous	-
15	868526		Rod, Oven Light Switch		Appelez-nous	-
16	868985		Switch Limit, Lower (alternate)		Appelez-nous	-
16	834903		Switch Limit, Lower (screw, 4-40 X 1-1/4 (2))		Appelez-nous	-
16	834906		Switch Limit (lower) (alternate)		Appelez-nous	-
16	868986		Switch Limit, Lower (alternate)		Appelez-nous	-
17	868511		Retainer, Insulation (top)		Appelez-nous	-
18	865939		Tube, Oven Vent (alternate)		Appelez-nous	-
18	868973		Tube, Oven Vent (alternate)		Appelez-nous	-
18	241428		Tube, Oven Vent (screw, 10-24 X 3/8 (2))		Appelez-nous	-
19	868523		Tie Bar		Appelez-nous	-
19	241547		Pushnut, 3/16``		Appelez-nous	-
20	834483		Cam, Door Latch (alternate)		Appelez-nous	-
20	868984		Cam, Door Latch (alternate)		Appelez-nous	-
20	455105		Cam, Door Latch (pin, Spring)		Appelez-nous	-
21	595119		Screw, 10-24 X 5/8 (3)		Appelez-nous	-
21	834484		Latch, Oven Door		Appelez-nous	-
21	241422		Washer (2)		Appelez-nous	-
22	273225		Motor, Door Latch (screw, 8-32 X 5/16 (2))		Appelez-nous	-
22	834849		Motor, Door Latch (alternate)		Appelez-nous	-
22	868983		Motor, Door Latch (alternate)		Appelez-nous	-
23	868281		Housing, Latch		Appelez-nous	-
24	865638		Unit, Broil		Appelez-nous	-
24	486146		Screw, 10-32 X 1/2 (2)				$ 12.83
25	868513		Cover, Latch Housing		Appelez-nous	-
25	256158		Pushnut, 1/4		Appelez-nous	-
26	868033		Tube, Vent (upper)		Appelez-nous	-
27	868524		Cover, Access		Appelez-nous	-
28	241547		Pushnut, 3/16``		Appelez-nous	-
29	868799		Bracket, Interlock Rod		Appelez-nous	-
30	877524		Support Latch Motor		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
