Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	868430		Screw, 10-24 X 1/2 (6)		Appelez-nous	-
1	868542		Frame, Oven Door		Appelez-nous	-
3	866155		Screw, 6-32 X 3/8 (4)		Appelez-nous	-
3	271482		Nut, 6-32 (4)		Appelez-nous	-
3	866415		Handle		Appelez-nous	-
4	868223		Glass, Outer		Appelez-nous	-
5	868224		Panel, Heat Reflector		Appelez-nous	-
6	681151		Screw, 10-24 X 1/2 (8)		Appelez-nous	-
6	868945		Liner, Oven Door		Appelez-nous	-
7	868946		Baffle		Appelez-nous	-
8	877504		Seal, Door		Appelez-nous	-
9	681151		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
9	868797		Window		Appelez-nous	-
10	868947		Panel, Air Wash		Appelez-nous	-
10	681151		Screw, 10-24 X 1/2		Appelez-nous	-
11	142001		Plug Button		Appelez-nous	-
12	868796		``j`` Moulding		Appelez-nous	-
19	866426		Channel Assembly (2)		Appelez-nous	-
19	247326		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
19	241422		Washer (2)		Appelez-nous	-
19	868430		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
20	834471		Roller, Door Stop		Appelez-nous	-
21	46363		Nut, Speed		Appelez-nous	-
21	241423		Rivet, Square Head		Appelez-nous	-
22	241334		Pin, Hinge		Appelez-nous	-
23	865639		Arm, Hinge (2)		Appelez-nous	-
24	241312		Spring, Door		Appelez-nous	-
25	W10080180		Hex Nut (10-24)   (Replaces: 487351)				$ 12.74
25	877507		Catch, Door		Appelez-nous	-
25	241422		Washer		Appelez-nous	-
25	868430		Screw 10-24 X 1/2		Appelez-nous	-
26	868502		Glass, Inner		Appelez-nous	-
27	681151		Screw, 10-24 X 1/2		Appelez-nous	-
27	868503		Retainer, Glass		Appelez-nous	-

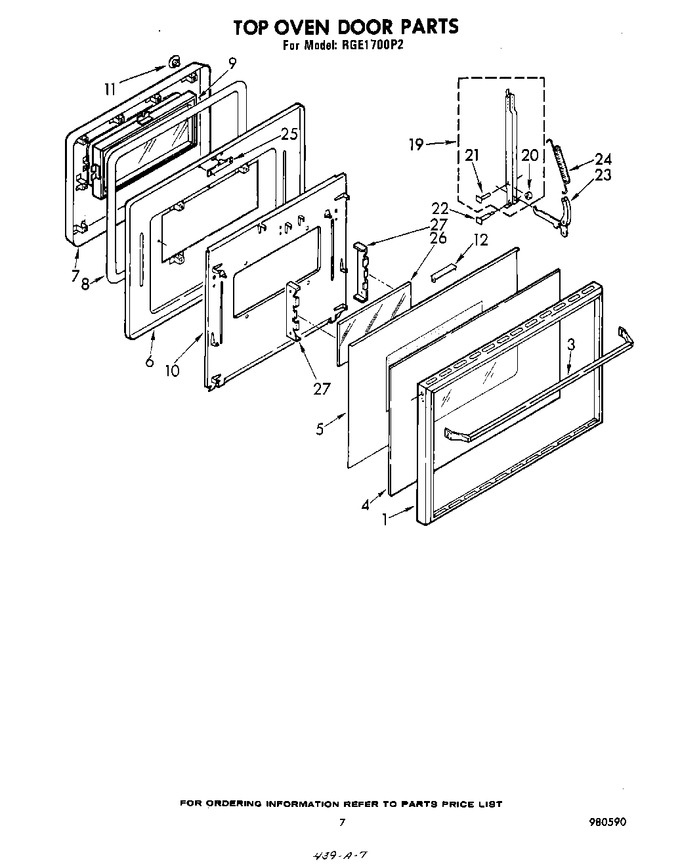

    View Diagram in Separate Window       Print Part List
