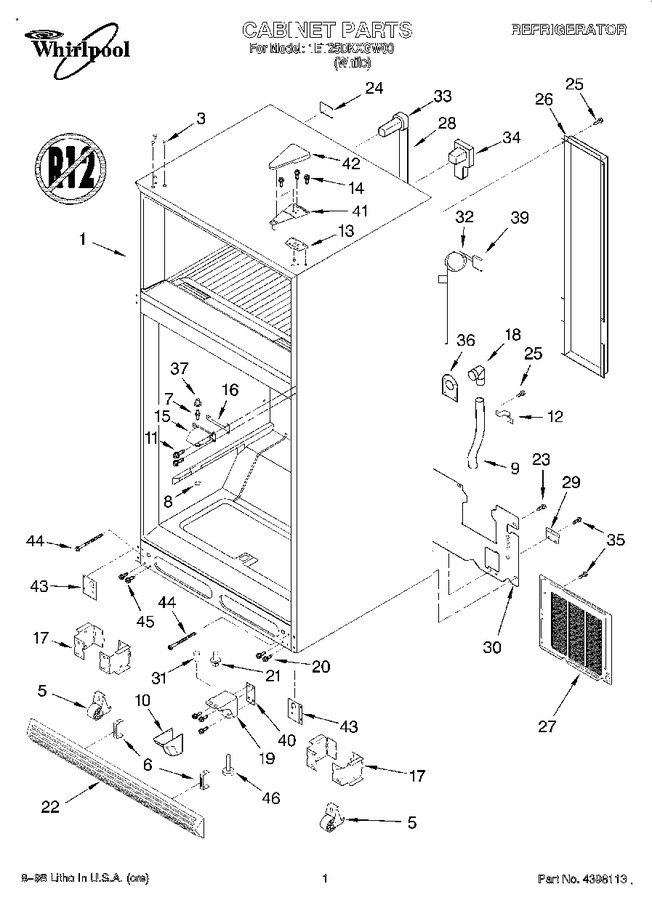

01 - Cabinet


02 - Liner


03 - Freezer Door


04 - Shelf


05 - Refrigerator Door


06 - Unit


07 - Compartment Separator, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
3	4344991		Plug, Button (3)		Appelez-nous	-
5	4344291		Roller, Front Assy.		Appelez-nous	-
6	4344155		Clip, Grille		Appelez-nous	-
7	4344428		Pin, Center Hinge		Appelez-nous	-
8	WPM0274057		Shim   (Replaces: 4344187)			Immediately	$ 8.40
9	4344504		Tube, Drain		Appelez-nous	-
10	4344204		Hinge Cover, Bottom		Appelez-nous	-
11	W11573362		Screw   (Replaces: 4344186)				$ 14.72
12	4344509		Clamp		Appelez-nous	-
13	4344194		Shim, Hinge Top		Appelez-nous	-
14	WP489349		Screw   (Replaces: 4344198)			Immediately	$ 8.43
15	4344431		Hinge, Center		Appelez-nous	-
16	4344427		Shim, Center Hinge		Appelez-nous	-
17	4344295		Housing, Roller		Appelez-nous	-
18	4344506		Elbow, Drain Tube		Appelez-nous	-
19	4344285		Hinge Bottom		Appelez-nous	-
20	WP67006715		Screw   (Replaces: 4343782)				$ 7.55
21	67007018		Pin, Bottom Hinge   (Replaces: 4344178)			Immediately	$ 8.62
22	8170296		Grille		Appelez-nous	-
23	4344267		Screw		Appelez-nous	-
24	4344264		Plug, I/m		Appelez-nous	-
25	4343759		Screw		Appelez-nous	-
26	4344503		Wire Cover (2)		Appelez-nous	-
27	4344261		Back Cover		Appelez-nous	-
28	4344412		Harness, Control		Appelez-nous	-
29	W10833899		Plate, Water Valve   (Replaces: 4344266)			Immediately	$ 253.55
30	4344502		Cover, Unit		Appelez-nous	-
31	4344210		Plug, Button		Appelez-nous	-
32	4344503		Power Cord		Appelez-nous	-
33	4344259		Grommet		Appelez-nous	-
34	4344260		Plug		Appelez-nous	-
35	4343749		Screw		Appelez-nous	-
36	4344507		Gasket		Appelez-nous	-
37	4344430		Closure, Door		Appelez-nous	-
39	WPM0104106		Clip   (Replaces: 4344265)				$ 8.17
40	4344516		Shim, Hinge		Appelez-nous	-
40	4344515		Shim, Hinge		Appelez-nous	-
41	4344172		Hinge Top		Appelez-nous	-
42	4344197		Hinge Cover		Appelez-nous	-
43	4344301		Plate, Hinge Tap (left Side)		Appelez-nous	-
43	4344299		Plate, Hinge Tap (right Side)		Appelez-nous	-
44	4344290		Screw		Appelez-nous	-
45	W11573574		Screw   (Replaces: 4344293)			Immediately	$ 14.72
46	W11177593		Foot Break   (Replaces: 4344298)				$ 12.18
