SELECT A DIAGRAM

01 - Cabinet


02 - Liner

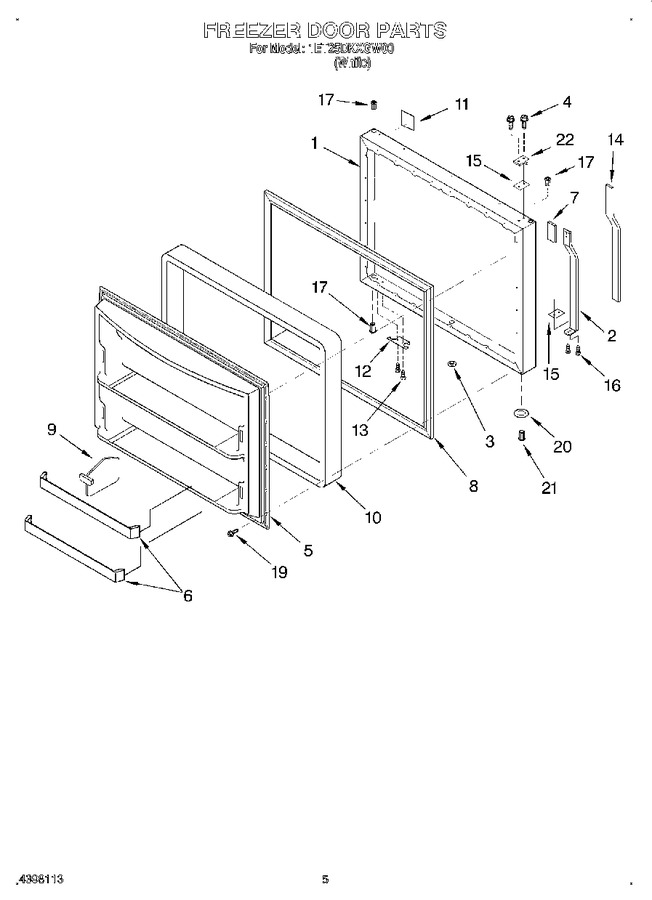

03 - Freezer Door


04 - Shelf


05 - Refrigerator Door


06 - Unit


07 - Compartment Separator, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4344539		Freezer Door Panel (includes Insulation)		Appelez-nous	-
2	8170302		Handle		Appelez-nous	-
3	4344227		Plug, Button		Appelez-nous	-
4	4344435		Screw		Appelez-nous	-
5	4344541		Interior Panel		Appelez-nous	-
6	8170307		Trivet, Door		Appelez-nous	-
7	8170304		Retainer		Appelez-nous	-
8	4344409		Door Gasket, Magnetic		Appelez-nous	-
9	4344300		Divider, Door Shelf		Appelez-nous	-
10	4344524		Insulation		Appelez-nous	-
11	4344326		Nameplate		Appelez-nous	-
12	12968202W		Door, Stop   (Replaces: 4344463)				$ 69.29
13	WPW10348409		Screw   (Replaces: 4344333)			Immediately	$ 8.20
14	8170303		Insert		Appelez-nous	-
15	8170306		Shim		Appelez-nous	-
16	4344436		Screw		Appelez-nous	-
17	4344362		Bushing		Appelez-nous	-
19	4343811		Screw		Appelez-nous	-
20	4344544		Filter		Appelez-nous	-
21	4344543		Bushing		Appelez-nous	-
22	8170305		End Cap		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
