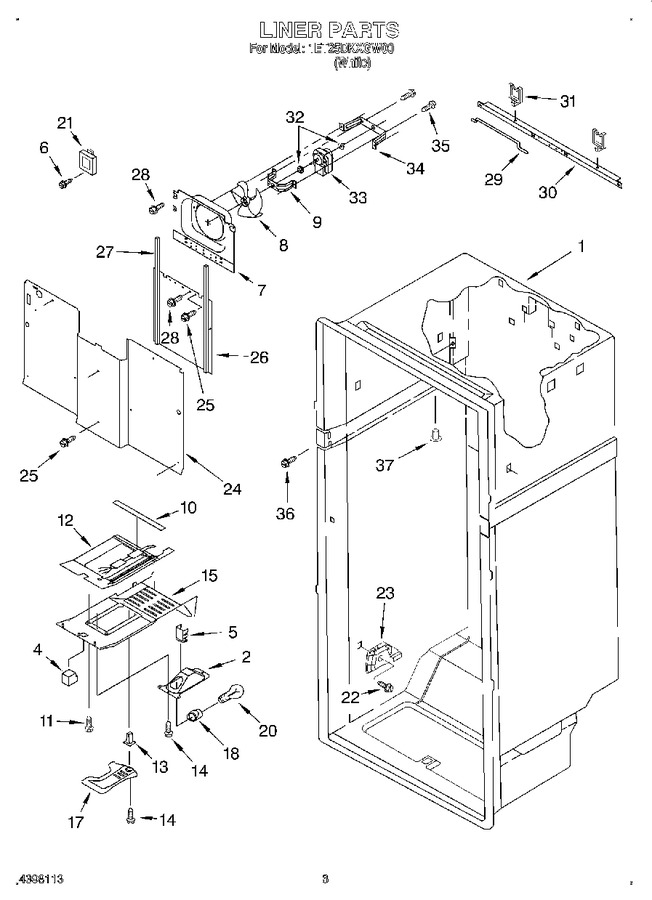

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	4344451		Housing, Frz. Light		Appelez-nous	-
4	W11384469		Switch, Light   (Replaces: 4343930)			Immediately	$ 39.09
5	4343682		Clip, Ground		Appelez-nous	-
6	4344167		Screw		Appelez-nous	-
7	4344501		Shroud, Evap Fan		Appelez-nous	-
8	W10116797		Fan Blade   (Replaces: 4344391)			Immediately	$ 8.56
9	4344392		Bracket, Upper		Appelez-nous	-
10	4344437		Gasket		Appelez-nous	-
11	WP98165		Screw   (Replaces: 4343675)				$ 8.57
12	4344457		Insulation		Appelez-nous	-
13	4343657		Grommet		Appelez-nous	-
14	4343861		Screw		Appelez-nous	-
15	4344360		Duct, Frz Air		Appelez-nous	-
17	4344452		Shield, Light		Appelez-nous	-
18	4344421		Socket, Light		Appelez-nous	-
20	W11679940		Light Bulb   (Replaces: 4343660)			Immediately	$ 11.30
21	4344166		Cover, Plug		Appelez-nous	-
22	67006425		Screw   (Replaces: 4344396)			Immediately	$ 7.30
23	4344443		Support, Crisper (left Side)		Appelez-nous	-
23	4344442		Support, Crisper (right Side)		Appelez-nous	-
24	4344484		Cover, Evaporator		Appelez-nous	-
25	4344167		Screw		Appelez-nous	-
26	4344485		Plate, Cover		Appelez-nous	-
27	4344492		Gasket		Appelez-nous	-
28	WP489399		Screw   (Replaces: 4343691)				$ 7.30
29	4344499		Gasket		Appelez-nous	-
30	4344488		Support, Ctr Ldr		Appelez-nous	-
31	4343969		Clip, Wire		Appelez-nous	-
32	WP2264462		Grommet   (Replaces: 4343934)			Immediately	$ 46.17
33	4344420		Motor, Evaporator		Appelez-nous	-
34	4344393		Bracket, Lower		Appelez-nous	-
35	4343749		Screw		Appelez-nous	-
36	WP489349		Screw   (Replaces: 4344198)			Immediately	$ 8.43
37	4344455		Plug, Button (3)		Appelez-nous	-
