SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Freezer Door

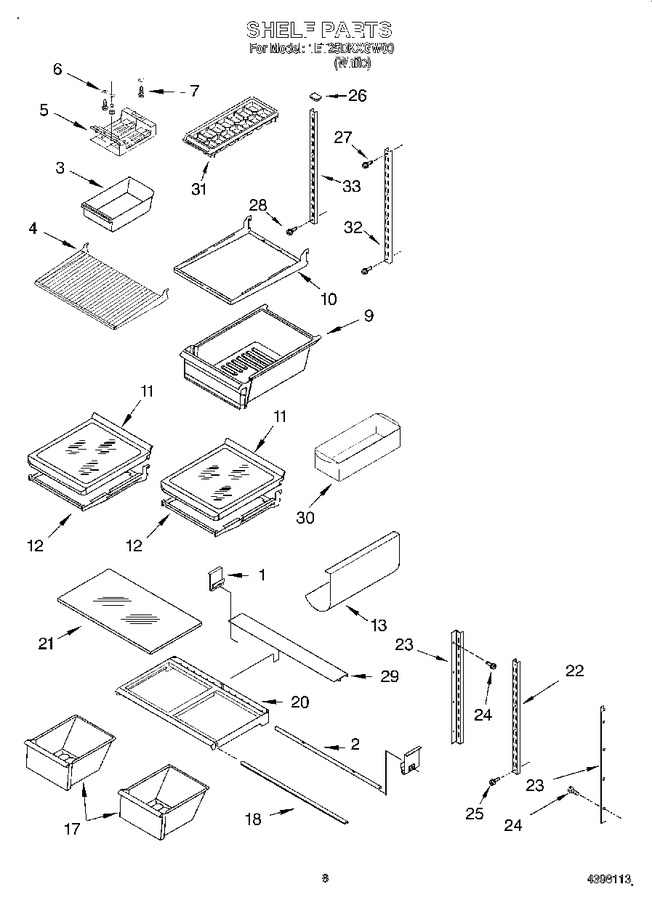

04 - Shelf


05 - Refrigerator Door


06 - Unit


07 - Compartment Separator, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4344444		Support, Crisper		Appelez-nous	-
2	4344445		Crisper, Cross Member		Appelez-nous	-
3	4344317		Ice Bucket		Appelez-nous	-
4	4344438		Shelf, Frz. Wire		Appelez-nous	-
5	4344513		Rack, Ice		Appelez-nous	-
6	4344449		Washer		Appelez-nous	-
7	4344448		Screw		Appelez-nous	-
9	2175436		Meat Pan		Appelez-nous	-
10	4344496		Shelf, Meat Pan		Appelez-nous	-
11	2174020		Frame Assy (2)		Appelez-nous	-
12	2174018		Shelf, S/g (2)		Appelez-nous	-
13	4344294		Rack, Wine		Appelez-nous	-
17	4344498		Pan, Crisper		Appelez-nous	-
18	2179449		Support, Crisper Cvr		Appelez-nous	-
20	4344483		Cover, Pan		Appelez-nous	-
21	2174145		Glass, Crisper Cover		Appelez-nous	-
22	4344522		Ladder, Center		Appelez-nous	-
23	4344514		Ladder, Side		Appelez-nous	-
24	4344523		Screw		Appelez-nous	-
25	67006425		Screw   (Replaces: 4344396)			Immediately	$ 7.30
26	4344491		Cap		Appelez-nous	-
27	4344493		Screw		Appelez-nous	-
28	4344494		Screw		Appelez-nous	-
29	4344446		Spacer, Crisper		Appelez-nous	-
30	W10136387A		Bin, Egg   (Replaces: 4344169)				$ 19.54
31	WP841180A		Tray, Ice Cube   (Replaces: 4344171)			Immediately	$ 47.84
32	4344489		Ladder, Frz Rs		Appelez-nous	-
33	4344490		Ladder, Frz Ls		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
