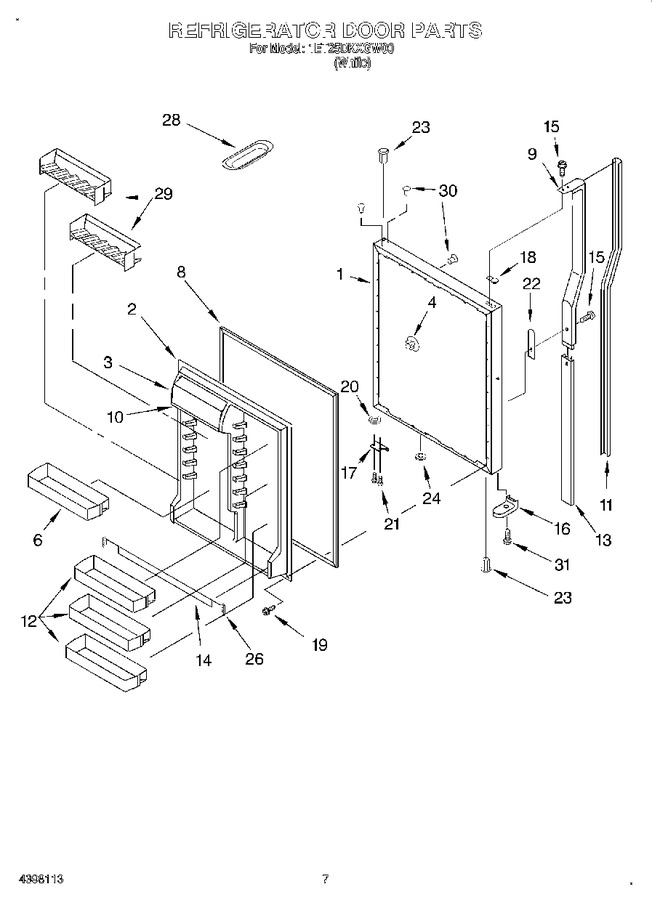

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4344530		Refrigerator Door Panel (includes Insulation)		Appelez-nous	-
2	4344531		Interior Panel		Appelez-nous	-
3	4344369		Door, Compartment		Appelez-nous	-
4	WP2189000		Hole Plug   (Replaces: 2189000)			Immediately	$ 7.77
6	4344532		Shelf Bin (1)		Appelez-nous	-
8	4344411		Door Gasket, Magnetic		Appelez-nous	-
9	8170297		Handle		Appelez-nous	-
10	4344370		Gasket		Appelez-nous	-
11	8170298		Insert, Handle		Appelez-nous	-
12	8170300		Shelf Bin (3)		Appelez-nous	-
13	8170299		Insert, Retainer		Appelez-nous	-
14	4344536		Trim, Door		Appelez-nous	-
15	4344167		Screw		Appelez-nous	-
16	4344358		End Cap		Appelez-nous	-
17	12968202W		Stop, Door   (Replaces: 4344463)				$ 69.29
18	4344434		Plug, Button		Appelez-nous	-
19	4343811		Screw		Appelez-nous	-
20	4344300		Shim		Appelez-nous	-
21	WPW10348409		Screw   (Replaces: 4344333)			Immediately	$ 8.20
22	8170301		Spacer		Appelez-nous	-
23	4344362		Bushing		Appelez-nous	-
24	4344227		Plug, Button		Appelez-nous	-
26	4344346		Plug-trim		Appelez-nous	-
28	4344296		Butter Dish		Appelez-nous	-
29	4344374		Holder, Beverage		Appelez-nous	-
30	WP67001130		Plug, Button   (Replaces: 4344535)			Immediately	$ 8.21
31	4344435		Screw		Appelez-nous	-
