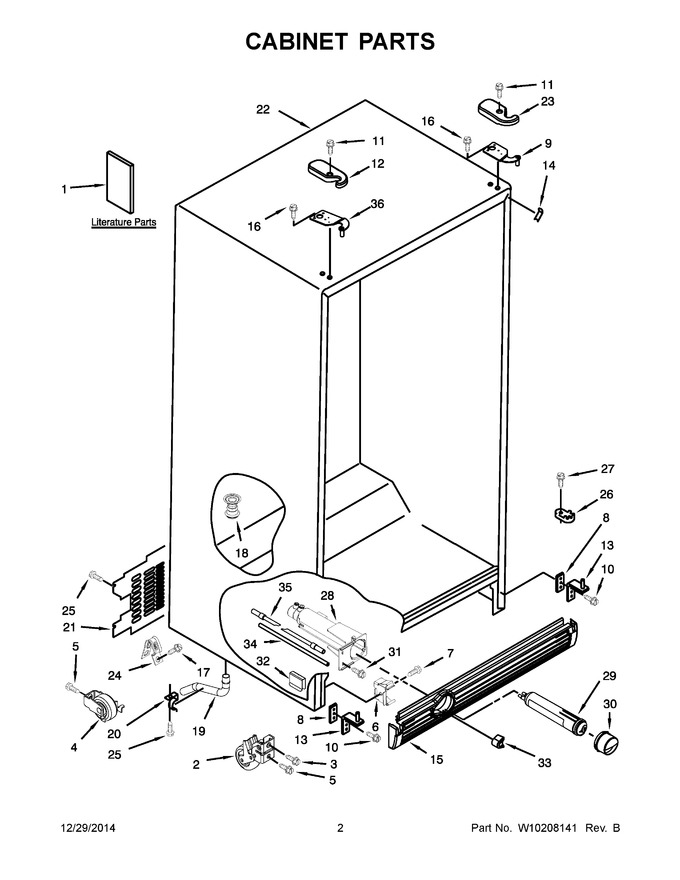

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10194140		Energy Guide		Appelez-nous	-
2	2174748		Roller, Front		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 12.98
4	WPW10250570		Roller, Rear   (Replaces: 2196236)				$ 37.96
5	WP489427		Screw   (Replaces: 489427)				$ 7.06
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.30
7	WP489478		Screw   (Replaces: 489478)				$ 7.36
8	WP2181911		Shim, Bottom   (Replaces: 2156056)				$ 31.38
9	WP2203771		Hinge, Top (right)   (Replaces: 2203771)				$ 92.82
10	WP489497		Screw   (Replaces: 3400113)			Immediately	$ 26.18
11	WP8281227		Screw   (Replaces: 8281227)				$ 9.86
12	W10138584		Cover, Hinge (freezer) (grey)				$ 15.17
13	2303141		Hinge, Bottom (left Hand)				$ 234.90
14	W10143043		Filler, Wrapper (grey)		Appelez-nous	-
15	WPW10184890		Grille (midnight Grey)   (Replaces: W10184890)				$ 149.98
16	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
17	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.54
18	W11566763		Fitting, Drain   (Replaces: 2304888)			Immediately	$ 48.11
19	W11512417		Extension, Drain Fitting   (Replaces: 2304937)				$ 32.88
20	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 10.15
21	WP2188755		Cover, Unit   (Replaces: 2188739)				$ 128.44
22	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
23	W10138579		Cover, Hinge (refrigerator) (grey)				$ 35.68
24	549193		Clamp, Power Cord				$ 12.65
25	WPW10141645		Screw   (Replaces: 489084)				$ 7.25
26	WPW10329686		Closer, Door   (Replaces: 2155311)			Immediately	$ 5.31
27	WP489483		Screw   (Replaces: 489483)				$ 10.27
28	WPW10121138		Housing, Water Filter   (Replaces: 2260507)			Immediately	$ 103.15
29	EDR3RXD1B		Filter, Water   (Replaces: 4396841)			Immediately	$ 49.99
30	WP2260518MG		Cap, Water Filter (grey)   (Replaces: 2260502MG)				$ 52.95
31	WP489500		Screw   (Replaces: 489500)				$ 7.35
32	2260519		Block, Housing Support		Appelez-nous	-
33	2260503MG		Button, Water Filter (grey)				$ 25.52
34	WPW10350006		Tube, Filter Outlet   (Replaces: 2255012)				$ 109.19
35	8201597		Tube, Filter Inlet   (Replaces: 2319867)			Immediately	$ 75.33
36	WP2203770		Hinge, Top (left)   (Replaces: 2203770)				$ 90.27
13A	W10138965		Hinge, Bottom (right Hand)				$ 84.52
1A	W10162456		Use And Care Guide		Appelez-nous	-
1B	W10180856		Service And Wiring Sheet		Appelez-nous	-
1C	628370		Icemaker Service Sheet		Appelez-nous	-
1D	W10168294		Instructions, Door Removal		Appelez-nous	-
26A	W11778262		Closer, Door (freezer)   (Replaces: 2223751)				$ 10.47
