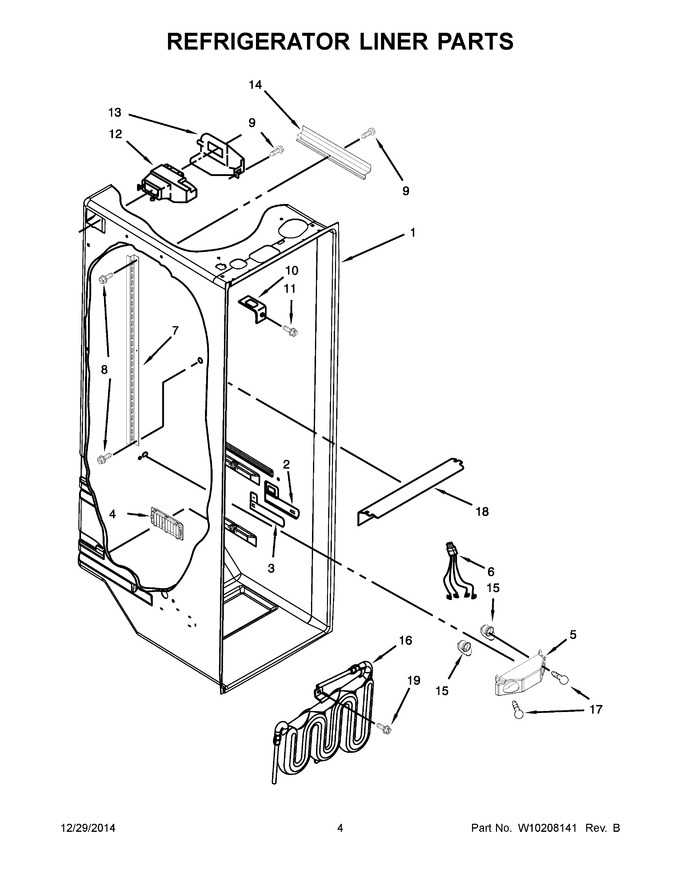

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	W10175967		Escutcheon, Meat Pan Control				$ 77.20
3	2182757		Slide, Meat Pan Control				$ 75.15
4	2257741		Louver		Appelez-nous	-
5	2256035		Bracket, Dual Crisper Lights				$ 62.54
6	2311637		Assembly, Crisper Light Wire				$ 132.52
7	2319866		Ladder, Shelf				$ 22.16
8	WP489478		Screw   (Replaces: 489478)				$ 7.36
9	W10759522		Screw   (Replaces: W10004810)				$ 7.42
10	WP2256085		Bracket, Retainer   (Replaces: 2256085)				$ 32.49
11	WP488488		Screw   (Replaces: 489290)				$ 7.67
12	WPW10151374		Assembly, Air Diffuser   (Replaces: W10151374)			Immediately	$ 94.29
13	2152019		Cover, Air Diffuser				$ 81.30
14	2150331		Cover, Wiring				$ 23.06
15	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 104.10
16	WPW10276792		Reservoir, Water   (Replaces: 2307107)				$ 130.01
17	W11679940		Bulb, Light   (Replaces: 2255743)			Immediately	$ 10.67
18	2209769		Cover, Light Lens		Appelez-nous	-
19	488280		Screw		Appelez-nous	-
