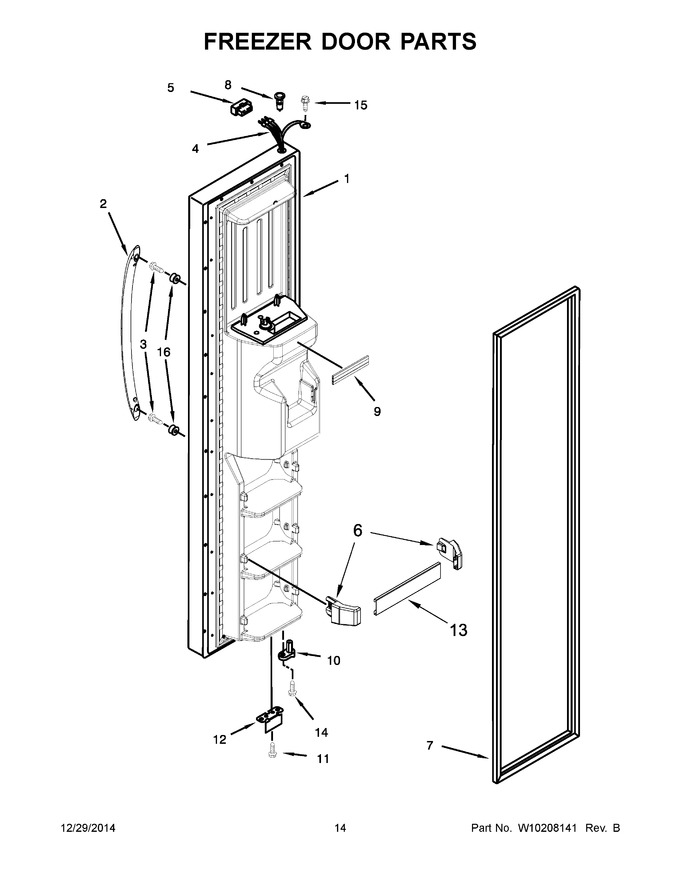

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10175671 | Door, Freezer (includes #8 And Dispenser Front Parts) (stainless) |
|
- | |||||
| 2 | W11690159 | Assembly, Handle (stainless) (Replaces: W10136871) |
|
$ 156.38 | |||||
| 3 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 4 | WPW10193328 | Assembly, Door Wire (Replaces: W10167528) |
|
$ 120.77 | |||||
| 5 | WP2154473 | Connector (Replaces: 2154473) |
|
$ 22.35 | |||||
| 6 | 2195917 | End Cap, Trim |
|
- | |||||
| 7 | W10136735 | Gasket, Door (grey) (Replaces: 2326339) |
|
$ 283.96 | |||||
| 8 | WP2182181 | Thimble, Top (Replaces: 2308091) |
|
$ 7.34 | |||||
| 9 | 2313199 | Trim, Shelf (Replaces: 2313199K) |
|
$ 81.84 | |||||
| 10 | 2323535 | Cam, Wiring Thimble |
|
$ 33.97 | |||||
| 11 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.27 | |||||
| 12 | WP2206629B | Bracket, Door Stop (zinc) (Replaces: 2206629) |
|
$ 38.51 | |||||
| 13 | 2313199 | Trim, Door Shelf |
|
$ 81.84 | |||||
| 14 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.43 | |||||
| 15 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.26 | |||||
| 16 | WPW10170540 | Stud, Handle (Replaces: 2326259) |
|
Immediately | $ 8.69 |
