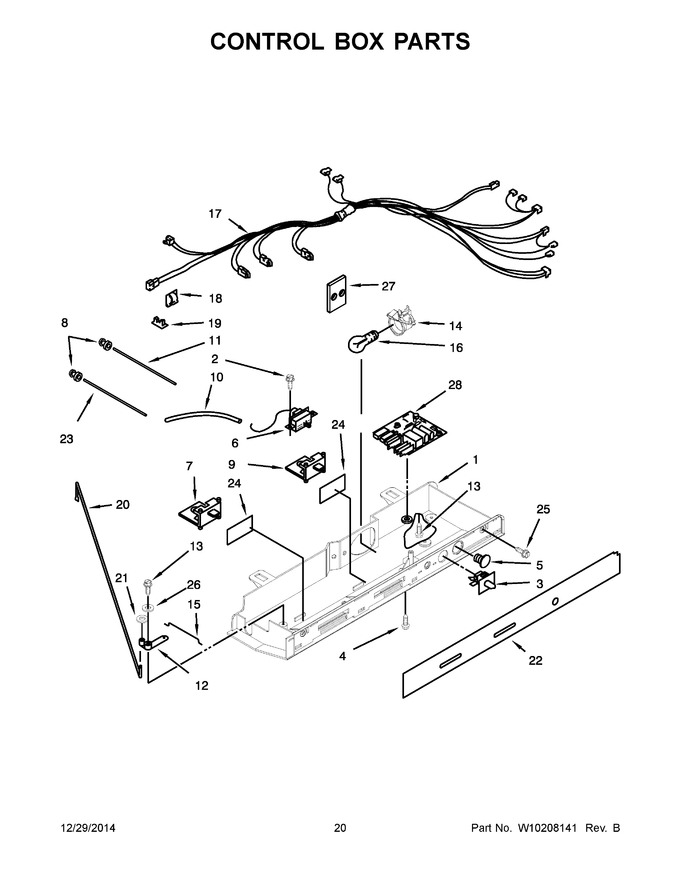

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2181738 | Box, Control |
|
- | |||||
| 2 | 2006254 | Screw (Replaces: 489214) |
|
$ 12.41 | |||||
| 3 | WP2149705 | Switch, Plunger (Replaces: 2149705) |
|
Immediately | $ 41.09 | ||||
| 4 | 489392 | Screw (Replaces: 489398) |
|
$ 12.62 | |||||
| 5 | 940014 | Plug, Hole |
|
$ 18.33 | |||||
| 6 | WP2315562 | Thermostat (Replaces: 2315562) |
|
Immediately | $ 97.59 | ||||
| 7 | 2181741 | Slide, Air Control |
|
$ 85.51 | |||||
| 8 | 2172906 | Grommet, Light Bar |
|
- | |||||
| 9 | 2161466 | Slide, Thermostat |
|
$ 20.05 | |||||
| 10 | WP2196003 | Tube, Thermostat Barrier (Replaces: 2196001) |
|
$ 7.52 | |||||
| 11 | 2179920 | Fiber, Light Optic |
|
$ 37.08 | |||||
| 12 | 2161306 | Arm, Pivot |
|
$ 9.65 | |||||
| 13 | 627068 | Screw |
|
$ 11.46 | |||||
| 14 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 104.10 | ||||
| 15 | 2161307 | Rod, Connecting (short) |
|
- | |||||
| 16 | W11679940 | Bulb, Light (Replaces: 2255743) |
|
Immediately | $ 10.17 | ||||
| 17 | 2187868 | Harness, Control Box |
|
- | |||||
| 18 | WP1115374 | Clip, Wire (Replaces: 1115374) |
|
$ 7.33 | |||||
| 19 | 1115375 | Clip, Wiring |
|
$ 11.15 | |||||
| 20 | 2161308 | Rod, Connecting (long) |
|
$ 162.65 | |||||
| 21 | 489391 | Fastener, Push-on |
|
$ 7.52 | |||||
| 22 | W10176424 | Escutcheon, Control Box |
|
- | |||||
| 23 | 2179921 | Fiber, Light Optic |
|
- | |||||
| 24 | 2175513 | Lens, Window Light |
|
- | |||||
| 25 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 7.25 | |||||
| 26 | 489203 | Washer, Spring |
|
- | |||||
| 27 | 2172931 | Shield, Control Box Heat |
|
$ 66.51 | |||||
| 28 | 4388932 | Control, Adaptive Defrost (Replaces: 2303824) |
|
Immediately | $ 252.40 |
