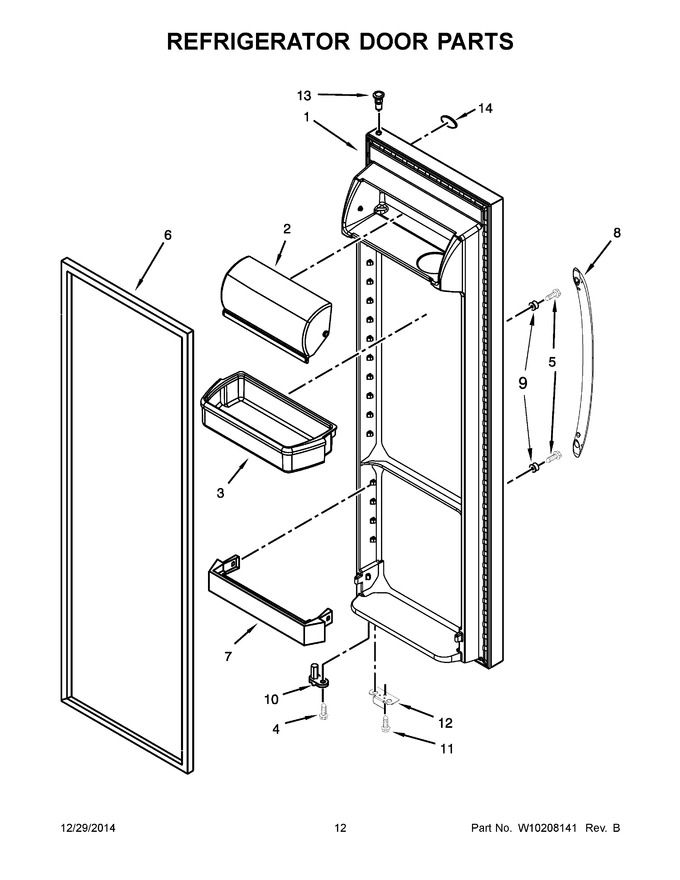

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2319737SAP | Door, Refrigerator (includes Item #6) (stainless) |
|
- | |||||
| 2 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 80.48 | ||||
| 3 | WPW10321304 | Bin, Door (Replaces: 2304235K) |
|
Immediately | $ 40.46 | ||||
| 4 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.43 | |||||
| 5 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 6 | WPW10136734 | Gasket, Door (grey) (Replaces: 2326338) |
|
$ 301.85 | |||||
| 7 | WP2156022 | Trivet (Replaces: 2156022) |
|
Immediately | $ 70.75 | ||||
| 8 | W11690159 | Assembly, Handle (stainless) (Replaces: W10136871) |
|
$ 156.38 | |||||
| 9 | WPW10170540 | Stud, Handle (Replaces: 2326259) |
|
Immediately | $ 8.69 | ||||
| 10 | WP2182179 | Thimble, Cam (Replaces: 2182178) |
|
Immediately | $ 6.48 | ||||
| 11 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.27 | |||||
| 12 | WP2206629B | Bracket, Door Stop (zinc) (Replaces: 2206629) |
|
$ 38.51 | |||||
| 13 | WP2182181 | Thimble, Top (Replaces: 2308091) |
|
$ 7.34 | |||||
| 14 | Y12528501 | Nameplate (stainless) (Replaces: 12528501) |
|
Immediately | $ 56.47 |
