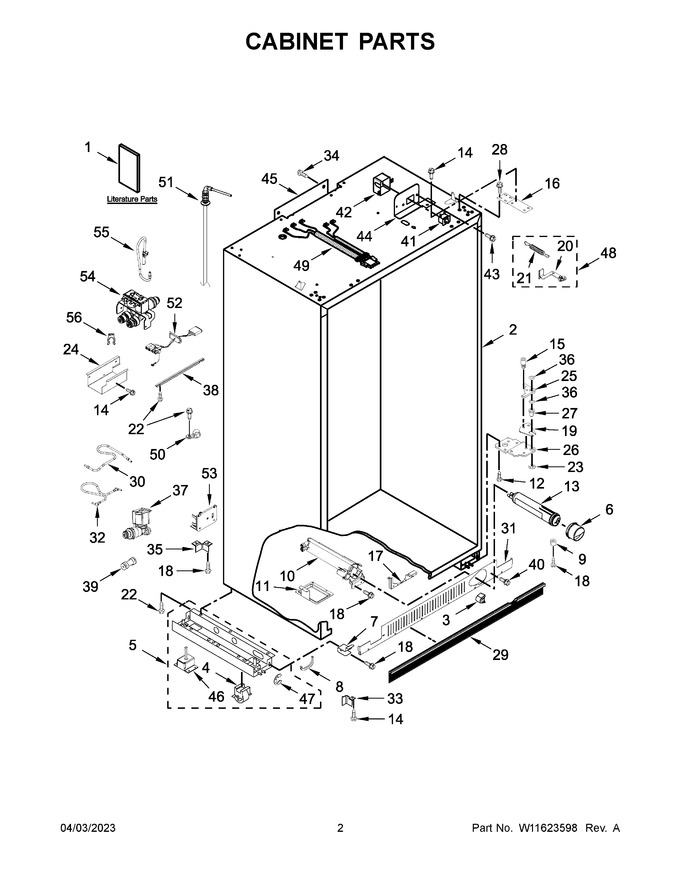

02 - Cabinet Parts


03 - Cabinet Trim Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner And Air Flow Parts


06 - Icemaker And Ice Container Parts


07 - Refrigerator Shelf Parts


08 - Freezer Shelf Parts


09 - Refrigerator Door Parts


10 - Freezer Door Parts


11 - Dispenser Parts


12 - Top Grille And Unit Cover Parts


13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11504344		Owner's Manual		Appelez-nous	-
2	NP		Cabinet (not A Serviceable Part)		Appelez-nous	-
3	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 68.78
4	WPW10138054		Assembly, Roller   (Replaces: W10138054)				$ 40.81
5	W10860229		Assembly, Support Base (left Hand)   (Replaces: W10279275)				$ 343.65
6	W11238395		Cap, Water Filter (black)   (Replaces: W10797527)			Immediately	$ 45.61
7	W10839844		Bracket, Grill Mounting   (Replaces: 2307640)				$ 38.93
8	2307584		Grommet, Crossover Tube				$ 21.06
9	2005433		Spacer				$ 21.00
10	WPW10121140		Housing, Water Filter   (Replaces: W10121140)			Immediately	$ 243.77
11	2318189		Tray, Filter Drip				$ 133.86
12	3400525		Screw				$ 12.83
13	EDR3RXD1B		Filter, Water   (Replaces: W10121146)			Immediately	$ 49.99
14	00487294		Screw   (Replaces: 487294)				$ 157.58
15	W11769878		Screw   (Replaces: 3400230)				$ 11.49
16	2257644		Hinge, Top				$ 160.18
17	W11755873		Bracket, Filter   (Replaces: W10674648)				$ 72.30
18	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 7.54
19	WP2004994		Lock, Bushing   (Replaces: 2004994)			Immediately	$ 7.55
20	W11298172		Arm, Door Closer Extension (left Hand)   (Replaces: W11229516)			Immediately	$ 78.69
21	W11805224		Spring, Door Closure (green)   (Replaces: 2221242)		Appelez-nous	-
22	W11624204		Screw   (Replaces: 486194)				$ 13.25
23	WP489236		Ring, Bushing Retaining   (Replaces: 2005008)			Immediately	$ 11.50
24	W11594075		Shield, Water Valve		Appelez-nous	-
25	W11700297		Cover, Bottom Gap   (Replaces: W10482554)			Immediately	$ 34.45
26	W10527053		Hinge, Bottom (left Hand)   (Replaces: 2006779)				$ 123.96
27	WP2302876		Bushing, Adjustable   (Replaces: 2302876)			Immediately	$ 81.65
28	W11721628		Screw   (Replaces: W11370632)			Immediately	$ 13.30
29	WP2209024B		Skirt, Bottom Grille (black)   (Replaces: 2209024B)				$ 152.88
30	W11634221		Tube, Water   (Replaces: W11449524)				$ 83.49
31	W11739149		Grille, Bottom (black)   (Replaces: 2325184B)			Immediately	$ 188.17
32	W11663448		Tube, Water Filter   (Replaces: W11450887)				$ 52.14
33	2006616		Bracket, Support Base (front) (left Hand)				$ 82.38
34	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
35	2006617		Bracket, Base Support (rear)		Appelez-nous	-
36	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 10.58
37	W11246413		Valve, Isolation (no Flow Washer)   (Replaces: W10578757)			Immediately	$ 178.99
38	2320559		Support, Valve				$ 79.91
39	WP2300868		Connector, Union   (Replaces: W10271541)			Immediately	$ 33.29
40	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 9.63
41	W11396033		Switch, Rocker (refrigerator)   (Replaces: W10847848)			Immediately	$ 33.57
42	W11756944		Cover, Switch   (Replaces: W11533762)		Appelez-nous	-
43	WP965173		Screw   (Replaces: 487415)			Immediately	$ 10.68
44	W11610480		Bracket, Switch (left Hand)				$ 68.84
45	2215612		Cover, Air Duct		Appelez-nous	-
46	2005032		Leveler, Adjustable			Immediately	$ 180.06
47	2006841		Ring, Retainer				$ 83.39
48	WPW10121046		Assembly, Cam (left Hand)   (Replaces: W10121046)			Immediately	$ 75.34
49	W10780213		Assembly, Switch Wire				$ 117.82
50	W10833902		Clamp, Tube   (Replaces: 2221070)				$ 10.39
51	W11212166		Fitting, Water   (Replaces: W10357286)			Immediately	$ 36.84
52	W11421923		Harness, Water Valve				$ 157.25
53	W10847867		Bracket, Water Valve   (Replaces: W10237915)				$ 72.68
54	WPW10238102		Filter Valve Asm   (Replaces: W10238102)				$ 248.92
55	W11634223		Waterline   (Replaces: W11447812)			Immediately	$ 122.81
56	W10782424		Locking Ring(5/16")		Appelez-nous	-
1A	W11443729		Energy Guide		Appelez-nous	-
1B	W11494194		Tech Sheet		Appelez-nous	-
20A	W10847927		Arm, Door Closer Extension (right Hand)   (Replaces: W10728112)				$ 89.92
26A	WP2006780		Hinge, Bottom (right Hand)   (Replaces: 2006780)				$ 269.40
33A	2006556		Bracket, Support Base (front) (right Hand)				$ 33.48
41A	W11291138		Switch, Rocker (freezer)   (Replaces: W10847852)			Immediately	$ 33.00
44A	W11610479		Bracket, Switch (right Hand)		Appelez-nous	-
48A	WP2307857		Assembly, Cam (right Hand)   (Replaces: 2307857)			Immediately	$ 71.37
56A	W10782423		Locking Ring (1/4")				$ 21.93
5A	W10860448		Assembly, Support Base (right Hand)   (Replaces: W10138423)			Immediately	$ 344.70
