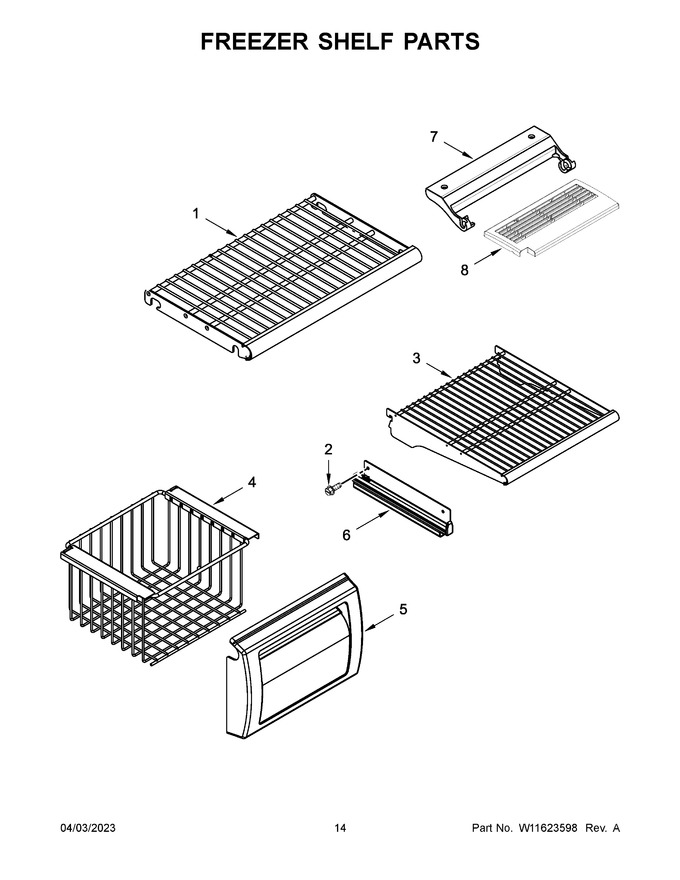

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11603233		Shelf, Wire		Appelez-nous	-
2	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 7.43
3	W11602369		Assembly, Shelf		Appelez-nous	-
4	W11602364		Basket, Freezer		Appelez-nous	-
5	W11626249		Front, Freezer Basket   (Replaces: W11410127)		Appelez-nous	-
6	WP2259318		Slide, Basket (left Hand)   (Replaces: 2259318)			Immediately	$ 285.62
7	W11766462		Bracket, Icemaker Cover   (Replaces: W10749631)				$ 28.04
8	W11567120		Cover, Icemaker		Appelez-nous	-
6A	2259317		Slide, Basket (right Hand)				$ 209.96
