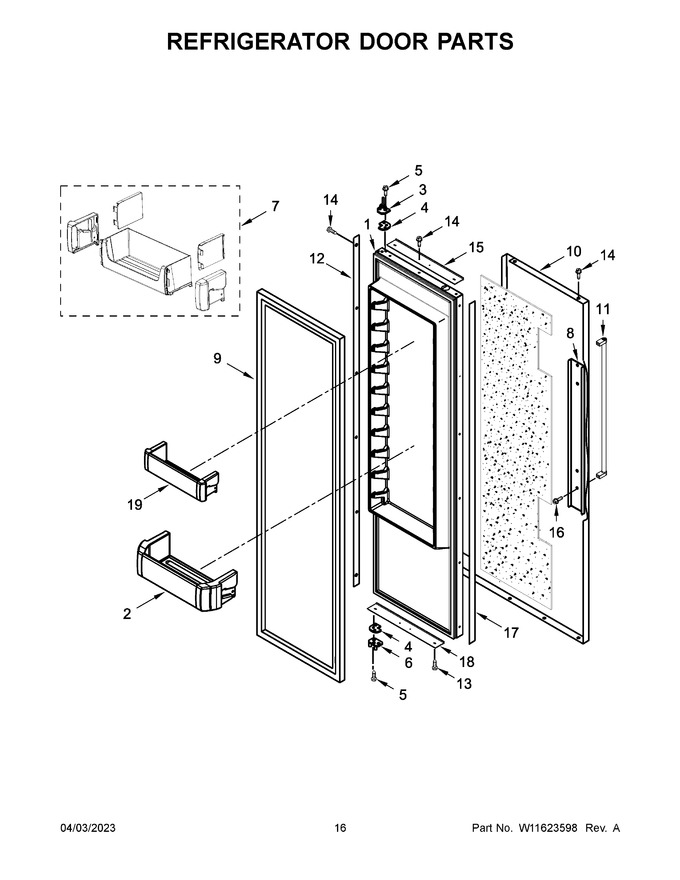

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11832392		Door, Refrigerator   (Replaces: W11576431)		Appelez-nous	-
2	W11408928		Bin, Gallon Door		Appelez-nous	-
3	W11673500		Assembly, Hinge (top)   (Replaces: W10485980)			Immediately	$ 117.33
4	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 117.33
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 7.77
6	2302878		Assembly, Hinge (bottom)			Immediately	$ 81.91
7	W11610621		Bin, Top Door		Appelez-nous	-
8	W10127710		Plate, Handle Door			Immediately	$ 23.35
9	W11625072		Gasket, Door (grey)   (Replaces: W10760884)				$ 349.95
10	W11797629		Skin, Door (stainless Filler (not Serviced-included With Skin))   (Replaces: W10756458)		Appelez-nous	-
11	W10783284		Handle, Door (stainless)   (Replaces: W10541592)				$ 195.04
12	W10756209		Spacer, Hinge Side Door		Appelez-nous	-
13	W10759522		Screw (stainless)   (Replaces: 488568)				$ 7.42
14	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 10.28
15	W10758121		Spacer, Door Skin (top)		Appelez-nous	-
16	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.47
17	W10758113		Spacer, Handle Side Door		Appelez-nous	-
18	W10761935		Spacer, Door Skin (bottom)		Appelez-nous	-
19	W11408934		Bin, Shallow Door		Appelez-nous	-
