Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11173662 Assembly, Trim (includes Blind Threaded Insert) (left Side)   (Replaces: W11085744) In-Stock Immediately $ 238.46

2 W11624204 Screw   (Replaces: 486194) Special Order $ 13.25

3 2314016 Trim, Cabinet (top) (aluminum) Appelez-nous -
1A W11173663 Assembly, Trim (includes Blind Threaded Insert) (right Side)   (Replaces: W11085745) Special Order $ 238.68


    View Diagram in Separate Window     Print Icon   Print Part List

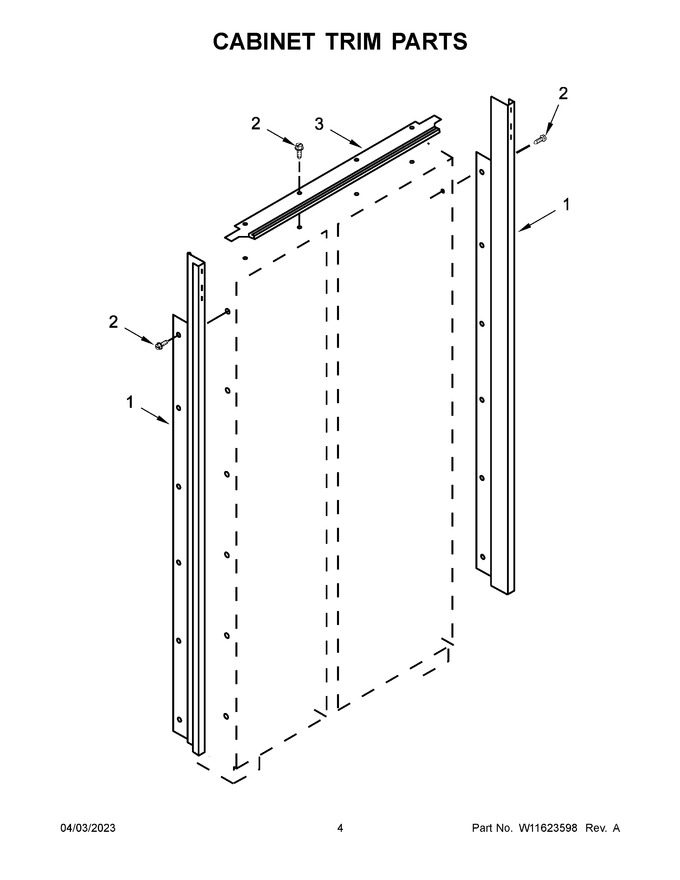

Diagram for KBSD706MPS00
