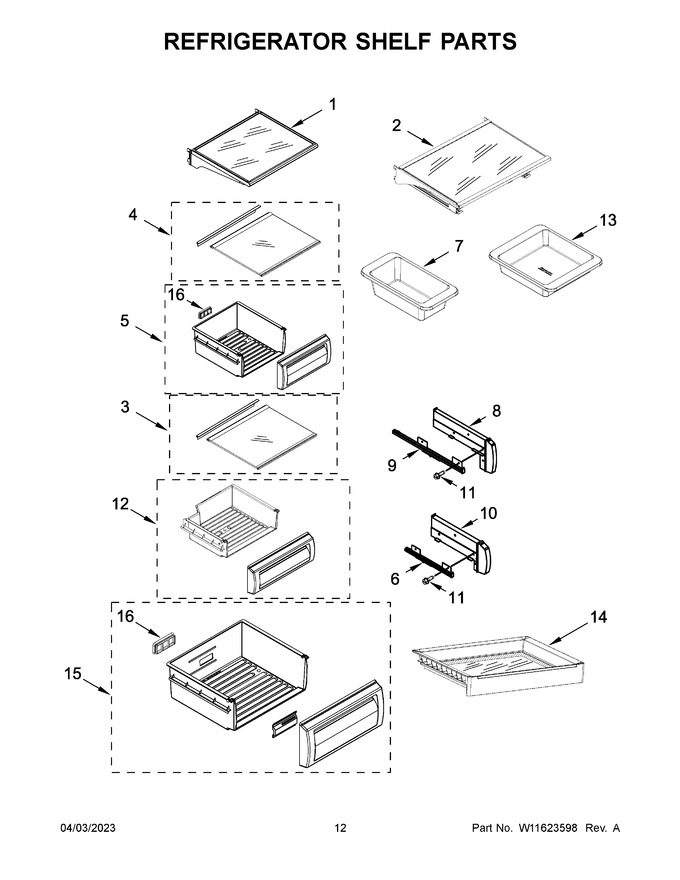

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11626247		Assembly, Fixed Shelf   (Replaces: W11410509)		Appelez-nous	-
2	W11635814		Assembly, Bakeware Shelf   (Replaces: W11408075)		Appelez-nous	-
3	W11625250		Assembly, Meat Pan Cover   (Replaces: W11453927)		Appelez-nous	-
4	W11625248		Assembly, Crisper Pan Cover   (Replaces: W11410383)		Appelez-nous	-
5	W11448663		Assembly, Crisper Pan		Appelez-nous	-
6	2302954		Slide, Meat Pan (left Hand)				$ 309.14
7	W11635816		Pan, Loaf   (Replaces: W11522389)		Appelez-nous	-
8	W11410122		Spacer, Crisper (left Hand)		Appelez-nous	-
9	2302956		Slide, Crisper (left Hand)				$ 268.86
10	W11410124		Spacer, Meat Pan (left Hand)		Appelez-nous	-
11	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 7.43
12	W11448426		Assembly, Meat Pan		Appelez-nous	-
13	W11635817		Pan, Cake   (Replaces: W11522385)		Appelez-nous	-
14	W11635819		Assembly, Platter Shelf   (Replaces: W11611419)		Appelez-nous	-
15	W11482029		Pan, Cool Control Crisper		Appelez-nous	-
16	2307810		Duct, Deli Pan		Appelez-nous	-
10A	W11410125		Spacer, Meat Pan (right Hand)		Appelez-nous	-
11A	W11830745		Screw (right Hand)   (Replaces: 8533929)		Appelez-nous	-
6A	2302955		Slide, Meat Pan (right Hand)				$ 308.86
8A	W11410123		Spacer, Crisper (right Hand)		Appelez-nous	-
9A	2302957		Slide, Crisper (right Hand)				$ 205.50
