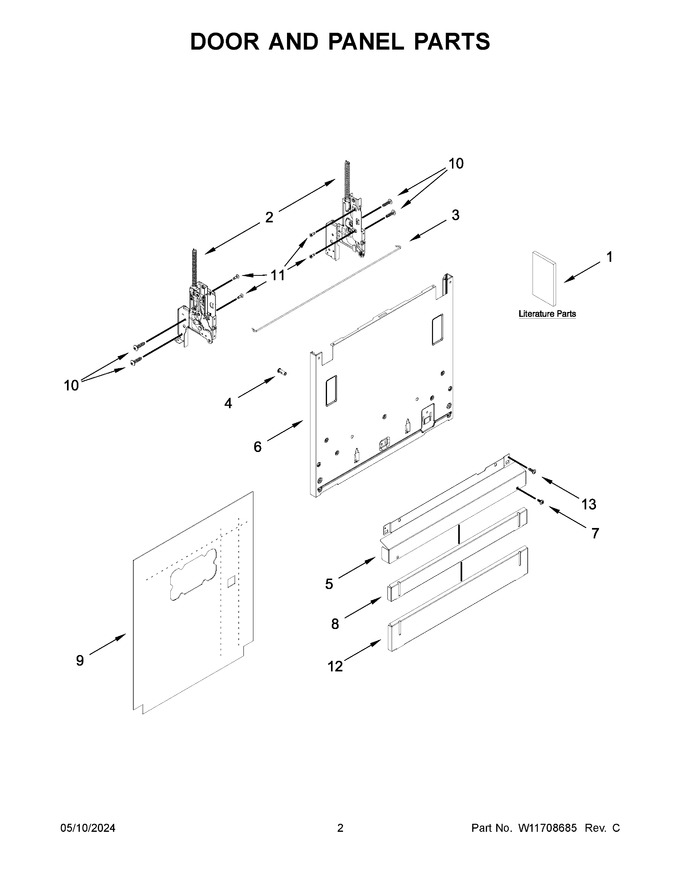

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W11589935 |
|
Owners Manual |
|
Appelez-nous
|
- |
|
|
|
| 2 |
W11693818 |
|
Arm, Hinge (left Hand) (Replaces: W11631592) |
|
|
|
$ 218.66 |
|
|
| 3 |
W11698653 |
|
Cross Brace, Door (Replaces: W11126789) |
|
Appelez-nous
|
- |
|
|
|
| 4 |
W11699546 |
|
Bushing, Door (Replaces: W10885778) |
|
Appelez-nous
|
- |
|
|
|
| 5 |
W11698515 |
|
Panel, Main Access (black) (Replaces: W11625157) |
|
|
|
$ 344.93 |
|
|
| 6 |
W11693814 |
|
Panel, Outer Door (includes 4) (Replaces: W11524403) |
|
|
Immediately |
$ 230.00 |
|
|
| 7 |
WP302868 |
 |
Screw (black) (Replaces: 302868) |
|
|
Immediately |
$ 7.36 |
|
|
| 8 |
W11698514 |
|
Panel, 2" Adjustable (black) (Replaces: W11625159) |
|
|
Immediately |
$ 136.13 |
|
|
| 9 |
W11698654 |
|
Insulation, Inner Door (Replaces: W11564603) |
|
|
|
$ 56.81 |
|
|
| 10 |
W11698634 |
|
Screw (Replaces: W10942031) |
|
Appelez-nous
|
- |
|
|
|
| 11 |
W11698633 |
|
Screw (Replaces: W10941985) |
|
Appelez-nous
|
- |
|
|
|
| 12 |
W11690824 |
|
Panel, 4" Adjustable (black) (Replaces: W11625156) |
|
|
|
$ 134.41 |
|
|
| 13 |
WP302868 |
|
Screw (Replaces: W10942053) |
|
|
Immediately |
$ 7.36 |
|
|
| 1A |
W11615384 |
|
Energy Guide |
|
Appelez-nous
|
- |
|
|
|
| 1B |
W11589945 |
|
Tech Sheet |
|
Appelez-nous
|
- |
|
|
|
| 2A |
W11693819 |
|
Arm, Hinge (right Hand) (Replaces: W11631591) |
|
|
|
$ 97.74 |
|
|
